Cisco 350-029 Online Practice Questions and Exam Preparation

Cisco 350-029 Online Questions & Answers

• Question 361:

  How many messages does Internet Key Exchange (IKE) use to negotiate SA characteristics when running in main mode?

  A. 3 messages
  B. 6 messages
  C. 4 messages
  D. 2 messages
  E. 5 messages
  B. 6 messages

  ---

  3.1.1 Main Mode The Main Mode is an exchange in the first phase of IKE/ISAKMP (The ISAKMP Identity Protection Exchange) the first two messages are used for negotiating the security policy for the exchange. The next two messages are used for the Diffie-Hellman keying material exchange. The last two messages are used for authenticating the peers with signatures or hashes and optional certificates. Last two authentication messages are encrypted with the previously negotiated key and the identities of the parties are protected from eavesdroppers.

• Question 362:

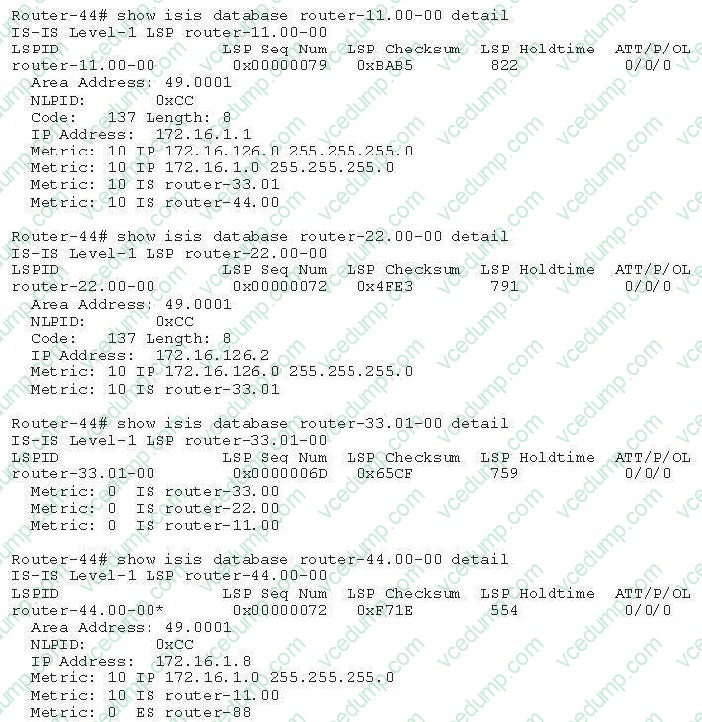

  Refer to the exhibit.



  Which router is the DIS?

  A. router-22
  B. router-44
  C. router-33 and router-44
  D. router-11
  E. router-33
  E. router-33

• Question 363:

  Which of the following is a correct arrangement of APS Action Requests in order of priority, with highest priority first?

  A. Lookout of Protection, Forced Switch, SD, Manual Switch
  B. SD, Lockout of Protection, Forced Switch, Manual Switch
  C. Lockout of Protection, Manual Switch, SD, Forced Switch
  D. Manual Switch, Forced Switch, Lockout of Protection, SD
  E. Manual Switch, Lockout of Protection, Forced Switch, SD
  A. Lookout of Protection, Forced Switch, SD, Manual Switch

  ---

  1.1. Packet over SONET Table 1 shows the priority requests from the highest (lockout) to the lowest (manual). Table 1 APS Priority Request Priority Priority Request 1 Lockout of protect port 2 Forced switch 3 Signal failure--low priority 4 Signal degradation--low priority 5 Manual switch

• Question 364:

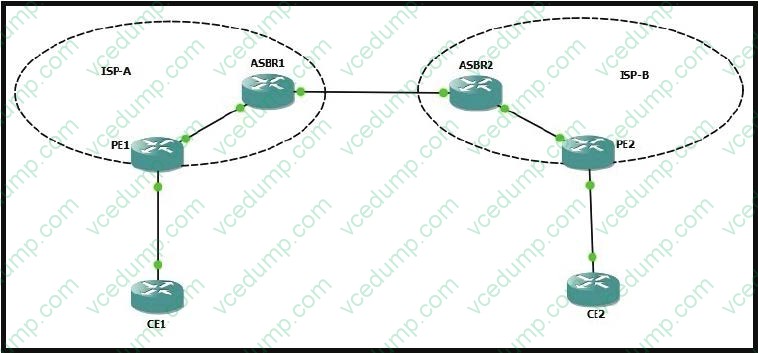

  Refer to the exhibit.



  An inter-AS VPN between ISP-A and ISP-B is being deployed to support end-to-end connectivity for CE-1 and CE-2. For scalability reasons, the ASBR routers cannot exchange VPN routes for CE-1 and CE-2.

  Which two configurations are needed to support this requirement? (Choose two.)

  A. one VRF on the ASBRs for each CE
  B. send-labels on the ASBRs
  C. address-family VPNv4 on the ASBRs
  D. ebgp-multihop between the PEs
  E. ebgp-multihop between the ASBRs
  B. send-labels on the ASBRs
  D. ebgp-multihop between the PEs

• Question 365:

  Which IEEE task group provides a method to implement QoS on an Ethernet level?

  A. 802.1ab
  B. 802.1p
  C. 802.1q
  D. 802.1s
  E. 802.1w
  B. 802.1p

• Question 366:

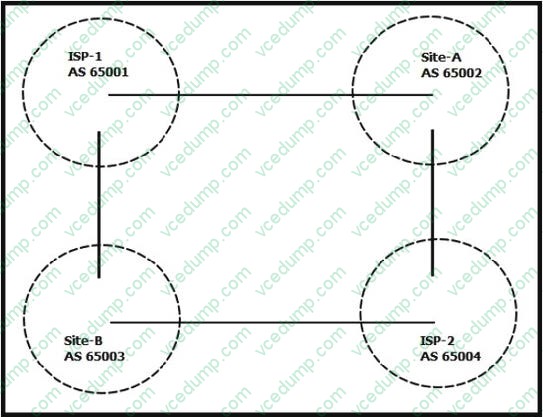

  Refer to the exhibit.



  Each AS domain contains more than one BGP router. Site-B sends traffic to ISP-1 over a directly connected link, but Site-B is not used as an AS transit for the ISP-1 backbone. How should the routes be advertised by ISP-1 towards Site-B to accomplish this task?

  A. Prefixes from site-A should be advertised with the no-export community
  B. Prefixes from site-B should be advertised with the no-export community
  C. Prefixes from site-B should be advertised with the no-advertise community
  D. Prefixes from site-A should be advertised with the as-path prepend attribute
  E. Prefixes from site-A should be advertised with the no-advertise community
  B. Prefixes from site-B should be advertised with the no-export community

• Question 367:

  What is periodically multicasted (every 10 seconds) by the DIS on a LAN to ensure IS-IS Link State Database accuracy?

  A. IIH
  B. LSP
  C. CSNP
  D. ISH
  E. PSNP
  C. CSNP

  ---

  On broadcast networks, designated routers send complete sequence number PDU (CSNP) packets to maintain database synchronization. The CSNP interval timer is the number of seconds between transmissions of CNSP packets from this interface.

• Question 368:

  In which Cisco IOS configuration mode is the route distinguisher (RD) configured?

  A. R1(config-route-at)#
  B. R1(config-route-map)#
  C. R1(config-it)#
  D. R1(config-vrf)#
  E. R1(config)#
  F. R1(router)#
  D. R1(config-vrf)#

• Question 369:

  Refer to the exhibit.



  If the SP network is configuring RTBH filtering to protect hosts on the 152.68.19.0/24 network, which router should be configured as the black hole activating router?

  A. F
  B. C
  C. D
  D. L
  E. A
  F. K
  A. F

  ---

  1.13. Security in core

  1.13.15. Remote triggered black hole (RTBH)

• Question 370:

  Which three of these are major components of an MPLS VPN network? (Choose three)

  A. LDP notification
  B. L2TPv3 session
  C. VPN route target communities
  D. Multiprotocol BGP peering of PE routers
  E. MPLS forwarding
  C. VPN route target communities
  D. Multiprotocol BGP peering of PE routers
  E. MPLS forwarding
