Cisco 350-029 Online Practice Questions and Exam Preparation

Cisco 350-029 Online Questions & Answers

• Question 331:

  Which statement about the Link Control Protocol (LCP) is true?

  A. LCP is used for basic PPP link setup and operation.
  B. LCP is used for PPP CHAP authentication.
  C. LCP is used for PPP over ATM (PPPoA) setup.
  D. LCP is used for PPP over Ethernet (PPPoE) setup.
  E. LCP is used for PPP over Frame Relay (PPPoFR) setup.
  A. LCP is used for basic PPP link setup and operation.

  ---

  The LCP protocol:

  Checks the identity of the linked device and either accepts or rejects the device determines the acceptable packet size for transmission searches for errors in configuration can terminate the link if requirements exceed the parameters.

• Question 332:

  In which of the following lists of APS Action Requests is the priority correctly arranged from lowest to highest?

  A. Wait-to-Restore, Manual Switch, Forced Switch, Lockout of Protection
  B. Wait-to-Restore, Forced Switch, Manual Switch, Lockout of Protection.
  C. Manual Switch, Wait-to-Restore, Lockout of Protection, Forced Switch.
  D. Lockout of Protection, Forced Switch, Manual Switch, Wait-to-Restore
  E. Lockout of Protection, Manual Switch, Forced Switch, Wait-to-Restore
  F. Wait-to-Restore, Manual Switch, Lockout of Protection, Forced Switch
  A. Wait-to-Restore, Manual Switch, Forced Switch, Lockout of Protection

  ---

  1.1. Packet over SONET Table 1 shows the priority requests from the highest (lockout) to the lowest (manual). Table 1 APS Priority Request Priority Priority Request 1 Lockout of protect port 2 Forced switch 3 Signal failure--low priority 4 Signal degradation--low priority 5 Manual switch

• Question 333:

  What is the minimum hardware configuration of the multishelf Cisco CRS-1 system?

  A. One route processor (RP) card and one modular services card (MSC)
  B. One distributed route processor (DRP) and one S13 fabric card (SFC)
  C. One line card chassis (LCC) and one fabric card chassis (FCC)
  D. One route processor (RP) and one fabric card chassis (FCC)
  E. One line card chassis (LCC) and one S13 fabric card (SFC)
  C. One line card chassis (LCC) and one fabric card chassis (FCC)

  ---

  1.4. SP high end product

  A minimum of one LCC and one FCC are required to configure a multishelf system.

• Question 334:

  Which of the following descriptions about uRPF loose mode is correct? (Choose two).

  A. It is typically used on point-to-point interfaces where the same interface is used for both directions of packet flows; if the source address has a return route in the FIB table, it is then checked against the adjacency table to ensure the same interface receiving the packet is the same interface used for the return path
  B. If a packet fails the uRPF loose mode check, the packet is then transmitted and creates a log message
  C. It is typically used on multipoint interfaces or on routers where asymmetrical routing is used (packets are received on one interface but the return path is not on the same interface); loose mode verifies a source address by looking in forwarding information base(FIB).
  D. If a packet fails the uRPF loose mode check, the packet is then dropped
  C. It is typically used on multipoint interfaces or on routers where asymmetrical routing is used (packets are received on one interface but the return path is not on the same interface); loose mode verifies a source address by looking in forwarding information base(FIB).
  D. If a packet fails the uRPF loose mode check, the packet is then dropped

  ---

  When administrators use Unicast RPF in strict mode, the packet must be received on the interface that the router would use to forward the return packet. Unicast RPF configured in strict mode may drop legitimate traffic that is received on an interface that was not the router's choice for sending return traffic. Dropping this legitimate traffic could occur when asymmetric routing paths are present in the network.

  When administrators use Unicast RPF in loose mode, the source address must appear in the routing table.

  Administrators can change this behavior using the allow-default option, which allows the use of the default route in the source verification process. Additionally, a packet that contains a source address for which the return route points to the Null 0 interface will be dropped. An access list may also be specified that permits or denies certain source addresses in Unicast RPF loose mode. Care must be taken to ensure that the appropriate Unicast RPF mode (loose or strict) is configured during the deployment of this feature because it can drop legitimate traffic. Although asymmetric traffic flows may be of concern when deploying this feature, Unicast RPF loose mode is a scalable option for networks that contain asymmetric routing paths.

• Question 335:

  Option 10C is an implementation of Inter-AS MPLS VPN. Which two statements about Option 10C are true? (Choose two.)

  A. Great scalability is offered
  B. Route Target Rewrite must be configured on ASBRs
  C. Multihop EBGP is utilized between route reflectors
  D. Multihop EBGP is utilized between ASBRs
  E. The ASBRs hold VPNv4 routes
  A. Great scalability is offered
  C. Multihop EBGP is utilized between route reflectors

• Question 336:

  Which transparent LAN service allows a service provider to offer Layer 2 Ethernet service to connect an enterprise in a metro region?

  A. AToM
  B. VPLS
  C. PPP over MPLS
  D. HDLC over MPLS
  B. VPLS

• Question 337:

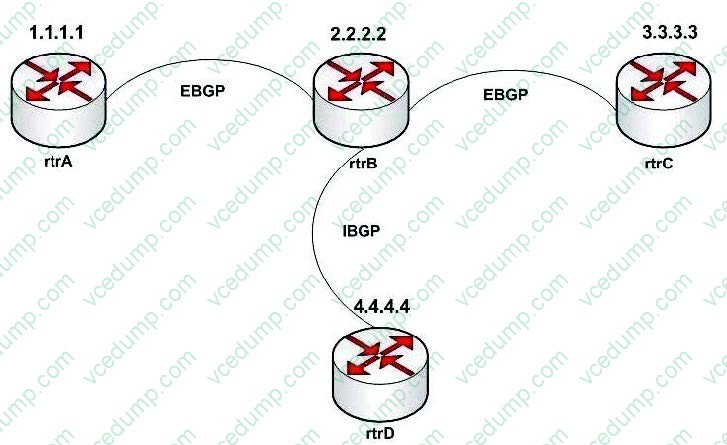

  Having the above BGP peerings, select the two configurations for rtrB that will fulfill the following criteria: -Will advertise all routes from rtrA to rtrD but not to rtrC -Will advertise the routes from rtrD to rtrC



  A. router bgp 2 neighbor 1.1.1.1 remote-as 1 neighbor 1.1.1.1 route-map rtrA in ! route-map rtrA permit 10 set community no-advertise !
  B. router bgp 2 neighbor 1.1.1.1 remote-as 1 neighbor 1.1.1.1 route-map rtrA in ! route-map rtrA permit 10 set community no-export !
  C. router bgp 2 neighbor 1.1.1.1 remote-as 1 neighbor 1.1.1.1 route-map rtrA in neighbor 3.3.3.3 remote-as 3 neighbor 3.3.3.3 route-map rtrC out ! route-map rtrA permit 10 set community 5 ! route-map rtrC permit 10 match community 5 !
  D. router bgp 2 neighbor 1.1.1.1 remote-as 1 neighbor 1.1.1.1 route-map rtrA in neighbor 3.3.3.3 remote-as 3 neighbor 3.3.3.3 route-map rtrC out ! route-map rtrA permit 10 set community 5 ! route-map rtrC permit 10 match community 5 ! route-map rtrC permit 20 !
  B. router bgp 2 neighbor 1.1.1.1 remote-as 1 neighbor 1.1.1.1 route-map rtrA in ! route-map rtrA permit 10 set community no-export !
  D. router bgp 2 neighbor 1.1.1.1 remote-as 1 neighbor 1.1.1.1 route-map rtrA in neighbor 3.3.3.3 remote-as 3 neighbor 3.3.3.3 route-map rtrC out ! route-map rtrA permit 10 set community 5 ! route-map rtrC permit 10 match community 5 ! route-map rtrC permit 20 !

• Question 338:

  You are about to design a very fast convergence time on a SP network. Which feature would you utilize to declare a link failure within less than two seconds of the fault on a link?

  A. fast convergence SFP
  B. MTU discovery
  C. redundancy links
  D. keepalive
  E. carrier delay
  E. carrier delay

  ---

  1.11. Convergence

• Question 339:

  Select the 3 best answers describing operation and configuration of Frame-Relay Inverse ARP.

  A. Dynamic address mapping uses Frame Relay Inverse ARP to request the next-hop protocol address for a specific connection on its known DLCI.
  B. Responses to Inverse ARP requests are entered in an address-to-DLCI mapping table on the router or access server which is used to supply the next-hop protoco address or the DLCI for outgoing traffic.
  C. Inverse ARP is enabled by default for all protocols enabled on the physical interface.
  D. Inverse ARP is configured using the following command under the Interface configuration 'frame-relay mapdlci (dlci number) protocol protocol-address'.
  E. Inverse ARP in Frame-Relay is synonymous of ARP in Ethernet.
  A. Dynamic address mapping uses Frame Relay Inverse ARP to request the next-hop protocol address for a specific connection on its known DLCI.
  B. Responses to Inverse ARP requests are entered in an address-to-DLCI mapping table on the router or access server which is used to supply the next-hop protoco address or the DLCI for outgoing traffic.
  C. Inverse ARP is enabled by default for all protocols enabled on the physical interface.

• Question 340:

  Which 4 statements regarding MPLS Label Stack Encoding is true?

  A. A value of 4 represents the "Implicit NULL Label."
  B. A value of 0 represents the "IPv4 Explicit NULL Label."
  C. A value of 1 represents the "Router Alert Label".
  D. A value of 2 represents the "IPv6 Explicit NULL Label"
  E. A value of 1 represents the "IPv1 Explicit NULL Label"
  F. A value of 3 represents the "Implicit NULL Label"
  B. A value of 0 represents the "IPv4 Explicit NULL Label."
  C. A value of 1 represents the "Router Alert Label".
  D. A value of 2 represents the "IPv6 Explicit NULL Label"
  F. A value of 3 represents the "Implicit NULL Label"

  ---

  A value of 0 represents the "IPv4 Explicit NULL Label". This label indicates that the label stack must be popped, and the packet forwarding must be based on the IPv4 header. This helps to keep Exp bits safe until the egress router. It is used in MPLS based QoS. A value of 1 represents the "Router Alert Label". When a received packet contains this label value at the top of the label stack, it is delivered to a local software module for processing. The actual packet forwarding is determined by the label beneath it in the stack. However, if the packet is forwarded further, the Router Alert Label should be pushed back onto the label stack before forwarding. The use of this label is analogous to the use of the "Router Alert Option" in IP packets (for example, ping with record route option)

  A value of 2 represents the "IPv6 Explicit NULL Label". It indicates that the label stack must be popped, and the packet forwarding must be based on the IPv6 header. A value of 3 represents the "Implicit NULL Label". This is a label that an LSR can assign and distribute. However, it never actually appears in the encapsulation. It indicates that the LSR pops the top label from the stack and forwards the rest of the packet (labeled or unlabeled) through the outgoing interface (as per the entry in Lfib). Although this value might never appear in the encapsulation, it needs to be specified in the Label Distribution Protocol, so a value is reserved.
