Cisco 350-020 Online Practice Questions and Exam Preparation

Cisco 350-020 Online Questions & Answers

• Question 291:

  What do directly modulated transponders vary to the laser in order to transmit an optical signal?

  A. Voltage
  B. Resistance
  C. Current
  D. Output signal
  E. Temperature
  C. Current

• Question 292:

  Where is there a major difference between SONET and SDH?

  A. Interpretation of Overhead
  B. Regeneration
  C. Multiplexing
  D. Optical line bit rates
  E. Ring topologies supported
  A. Interpretation of Overhead
  C. Multiplexing

• Question 293:

  How many DS-3s can be mapped to one STM-1 frame?

  A. 1
  B. 3
  C. 7
  D. 21
  E. 28
  B. 3

• Question 294:

  Click the Exhibit button to view the topology.



  Based on the information above, which OSPF configurations listed are valid? (multiple answer) "PassAny Exam. Any Time." - 138

  A. routerA router ospf 1 network 14.0.0.0 0.255.255.255 area 0 route rB router ospf 1 network 14.0.0.0 0.255.255.255 area 0
  B. routerA router ospf 1 network 14.1.1.0 0.0.0.255 area 0 route rB router ospf 2 network 14.1.1.0 0.0.0.255 area 0
  C. routerA router ospf 1 network 14.0.0.0 0.0.255.255 area 0 route rB router ospf 1 network 14.1.0.0 0.0.0.255 area 0
  D. routerA router ospf 1 network 14.1.1.0 0.0.0.255 area 1 route rB router ospf 1 network 14.1.0.0 0.0.255.255 area 0
  A. routerA router ospf 1 network 14.0.0.0 0.255.255.255 area 0 route rB router ospf 1 network 14.0.0.0 0.255.255.255 area 0
  B. routerA router ospf 1 network 14.1.1.0 0.0.0.255 area 0 route rB router ospf 2 network 14.1.1.0 0.0.0.255 area 0

• Question 295:

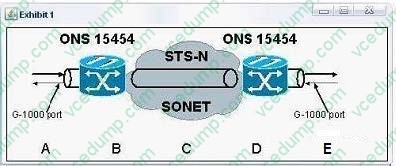

  Click the Exhibit button.



  When the G. series card Rx interface at "A" in the diagram loses it's receive signal, what occurs?

  A. The G. series card at "A" reports link down and sends an AIS alarm upstream.
  B. The G. series card at "A" reports link down, but the SONET path remains up.
  C. The Tx signal on the G. series card at either end of the circuit is shut off, causing the device connected to each G. series card to report link down.
  D. The Tx signal on the G. series at "A" is shut off, but the Tx signal on the G. series at "E" remains on to maintain link integrity.
  C. The Tx signal on the G. series card at either end of the circuit is shut off, causing the device connected to each G. series card to report link down.

• Question 296:

  How much Transport Overhead is contained in a SONET STS-1 frame (excluding VT overhead)?

  A. 1.728 Mb/s
  B. 51.84 Mb/s
  C. 8.0 Mb/s
  D. 50.112 Mb/s
  A. 1.728 Mb/s

• Question 297:

  Which bytes in the Section Overhead identify the beginning of the STS-1 frame?

  A. A1, A2
  B. B1.B2
  C. H1.H2
  D. K1,K2
  E. J0.J1
  A. A1, A2

• Question 298:

  What is the correct relative switching priority in a BLSR ring (higher to lower)?

  A. Protection Lockout, Manual Switch, Forced Switch
  B. Forced Switch, Manual Switch, Signal Degrade
  C. Signal Fail, Signal Degrade, Manual Switch
  D. Protection Lockout, Manual Switch, Path AIS
  E. Signal Degrade, Signal Fail, Manual Switch
  C. Signal Fail, Signal Degrade, Manual Switch

• Question 299:

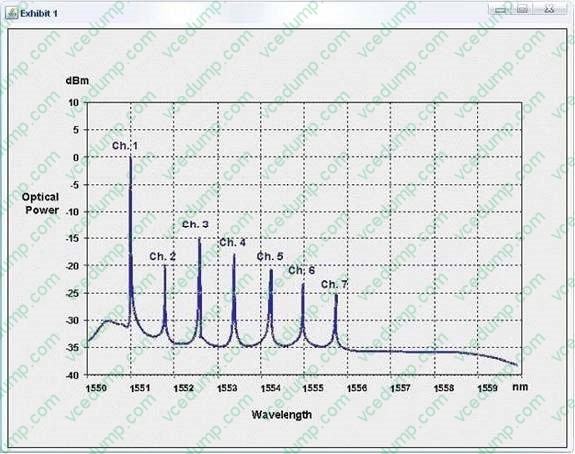

  Click the Exhibit button to view the graph.



  The graph represents optical signal power versus wavelength measurement from 1550nm to

  1560nm. What is the gain tilt of all of the seven channels?

  A. 10dB
  B. i5dB
  C. 20dB
  D. 25dB
  E. 30dB
  D. 25dB

• Question 300:

  When discussing FCIP compression what should be addressed?

  A. The type of data being compressed will determine the compression ratio.
  B. The speed of the link will determine the compression ratios that are possible.
  C. Amount of data will determine the compression ratio.
  D. An algorithm that takes into account speed, type and link speed will determine the ratio.
  A. The type of data being compressed will determine the compression ratio.
