F5 303 Online Practice Questions and Exam Preparation

F5 303 Online Questions & Answers

• Question 71:

  An LTM Specialist needs to use the tmsh command to create a pool named http_pool with member 10.10.101:80 on an LTM device. Which expression should the LTM Specialist use?

  A. # tmsh create pool http_pool members {10.10.10.101:80}
  B. # tmsh create pool http_pool members add {10.10.10.101:80}
  C. # tmsh create it pool http_pool members {10.10.10.101:80}
  D. # tmsh create itm pool http_pool member {10.10.10.101:80}
  C. # tmsh create it pool http_pool members {10.10.10.101:80}

• Question 72:

  An LTM Specialist decides to offload SSL traffic on the LTM device instead of just passing it through. The LTM Specialist needs to change the configure from a Performance (Layer 40 virtual server to a Standard virtual server with SSL offload. Which two element the LTM Specialist consider when performance this task? (Choose two.)

  A. CPU load
  B. Sensitive connections
  C. Port exhaustion
  D. Memory load
  E. Connection mirroring
  A. CPU load
  D. Memory load

• Question 73:

  A customer needs to intercept all of the redirects its application is sending to clients. When a redirect is matched, the customer needs to log a message including the client IP address. Which iRule should be used?

  A. when HTTP_RESPONSE { if { [HTTP::is_3xx] } { log local0. "redirecting client ip address [IP::addr [IP::remote_addr]]" } }
  B. when HTTP_REQUEST { if { [HTTP::is_301] } { log local0. "redirecting client ip address [IP::addr [IP::remote_addr]]" } }
  C. when HTTP_REQUEST { if { [HTTP::is_redirect] } { log local0. "redirecting client ip address [IP::addr [IP::remote_addr]]" } }
  D. when HTTP_RESPONSE { if { [HTTP::is_redirect] } { log local0. "redirecting client ip address [IP::addr [IP::remote_addr]]" } }
  D. when HTTP_RESPONSE { if { [HTTP::is_redirect] } { log local0. "redirecting client ip address [IP::addr [IP::remote_addr]]" } }

• Question 74:

  An LTM Specialist receives a request to monitor the network path through a member, but NOT the member itself. Which monitor option should the LTM Specialist enable or configure?

  A. Reverse
  B. Up interval
  C. Transparent
  D. Alias address
  E. Time until up
  C. Transparent

• Question 75:

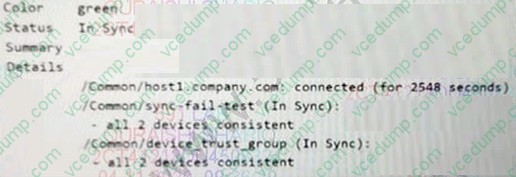

  Refer to the exhibit.



  Which TMSH command generated this output?

  A. tmsh list /cm sync-status
  B. tmsh show /sys sync-status
  C. tmsh list /sys sync-status
  D. tmsh show /cm sync status
  D. tmsh show /cm sync status

• Question 76:

  An LTM Specialist is troubleshooting an HTTP monitor. The pool member is accessible directly through a browser, but the HTTP monitor is marking the pool member as down. GET / HTTP/1.1 HTTP/1.1 400 Bad Request DatE. Tue, 23 Oct 2012 21:39:07 GTM Server: Apache/2.2.22 (FreeBSD) PHP/5.4.4 mod_ssl/2.2.22 OpenSSL/0.9.8q DAV/2 Content-LengtH. 226 Connection: close Content-TypE. text/html; charset=iso-8859-1 How should the LTM Specialist resolve this issue?

  A. Add '200 OK' to the monitor's receive string.
  B. Add 'Connection: close\r\n' to the monitor's send string.
  C. Change the interval on the monitor from 5 seconds to 30 seconds.
  D. Change the HTTP version in the send string from HTTP/1.1 to HTTP/1.0.
  D. Change the HTTP version in the send string from HTTP/1.1 to HTTP/1.0.

• Question 77:

  A BIG-IP Administrator makes a configuration change to a Virtual Server on the Standby device of an HA pair. The HA pair is currently configured with Auto-Sync Enabled. What effect will the change have on the HA pair configuration?

  A. The change will be undone when Auto-Sync propagates the config to the HA pair.
  B. The change will be propagated next time a configuration change is made on the Active device.
  C. The change will be undone next time a configuration change is made on the Active device.
  D. The change will take effect when Auto-Sync propagates the config to the HA pair.
  D. The change will take effect when Auto-Sync propagates the config to the HA pair.

• Question 78:

  A new web application is being deployed Mutual SSL authentication must be used to authenticate clients. Which of the following two tasks must be completed to meet therequirements? (Choose two)

  A. configure the server SSL profile with "Client Certificate" Set to require
  B. configure the client SSL profile with "Client Certificate" set to require
  C. instruct the desktop team to update the web browser to the most recent release
  D. generate a CSR to register a certificate with the CA
  E. configure the client SSL profile with the Trusted .Certificate Authorities
  B. configure the client SSL profile with "Client Certificate" set to require
  E. configure the client SSL profile with the Trusted .Certificate Authorities

• Question 79:

  How should a BIG-IP Administrator persistent sessions from being sent to a pool member so that the server administrator can perform maintenance?

  A. force the pool member offline
  B. disable the pool member
  C. add an additional monitor to the poor
  D. disable the virtual server
  A. force the pool member offline

• Question 80:

  In preparation for a maintenance task, an LTM Specialist performs a "Force to Standby" on LTM device Unit 1. LTM device Unit 2 becomes active as expected. The maintenance task requires the reboot of Unit 1. Shortly after the reboot is

  complete, the LTM Specialist discovers that Unit 1 has become active and Unit 2 has returned to standby.

  What would cause this behavior?

  A. Unit 1 is set with the redundancy state preference of active in devices groups.
  B. Unit 1 is set with the redundancy state preference of active in high availability.
  C. A traffic group is configured with Auto Failback, and Unit 1 is the default device.
  D. A device group is configured with Auto Failback, and Unit 1 is the default device.
  C. A traffic group is configured with Auto Failback, and Unit 1 is the default device.
