F5 303 Online Practice Questions and Exam Preparation

F5 303 Online Questions & Answers

• Question 481:

  An application is expected to maintain more than 100,000concurrent TCP connections to a single pool member. What is an appropriate SNAT configuration in this situation?

  A. A SNAT pool with 4 IP addresses
  B. SNAT automap enabled
  C. A static SNAT
  D. A SNAT pool with IP address
  A. A SNAT pool with 4 IP addresses

• Question 482:

  Refer to the exhibit.



  Which two servers are missing two frequently used URLs? (Choose two.)

  A. 172.16.20.1 /text.one /text.txt
  B. 172.16.20.2 /text.one /text.txt
  C. 172.16.20.1 /text.txt /browserspecific.html
  D. 172.16.20.2 /text.one /browserspecific.html
  E. 172.16.20.3 /text.one /browserspecific.html
  B. 172.16.20.2 /text.one /text.txt
  E. 172.16.20.3 /text.one /browserspecific.html

• Question 483:

  A custom HTTP monitor is failing to a pool member 10.10.3.75:8080 that serves up www.example.com.

  A ping works to the pool member address.

  The SEND string that the monitor is using is:

  GET/HTTP/l.l/r/n/Host.www.example.com/r/n/Connection

  Close/r/n/r/n

  Which CLI tool syntax will show that the web server returns the correct HTTP response?

  A. curlhttp://10.10.10.3.75:8080/www.example.com/index.html
  B. curl-header 'Host:www.example.com' http://10.10.3.75:8080/
  C. tracepath 'http://www.example.com:80
  D. tracepath 10.10.3.75:8080 GET /index
  B. curl-header 'Host:www.example.com' http://10.10.3.75:8080/

• Question 484:

  An FTP monitor is NOT working correctly.

  Which three pieces of information does the LTM Specialist need to provide to ensure a properly working FTP monitor? (Choose three.)

  A. alias
  B. File path
  C. username
  D. password
  E. FTP server port
  F. FTP server IP address
  B. File path
  C. username
  D. password

• Question 485:

  An LTM device load balances a pool of routers. The LTM device needs to verify pathavailability to an HTTP server with the IP address 192 168.10 10. located beyond the routers. Which monitor type and parameters arc required?

  A. HTTP monitor alias address 192 168.10 10. and set the alias to port 80
  B. TCP monitor, alias address 192.168.10.10. and set the alias to port 80
  C. TCP monitor change transparent option to Yes. set alias address 192.168.10.10. and set the alias to port 80
  D. TCP monitor, change transparent option to Yes, and sot the alias to port 80
  C. TCP monitor change transparent option to Yes. set alias address 192.168.10.10. and set the alias to port 80

• Question 486:

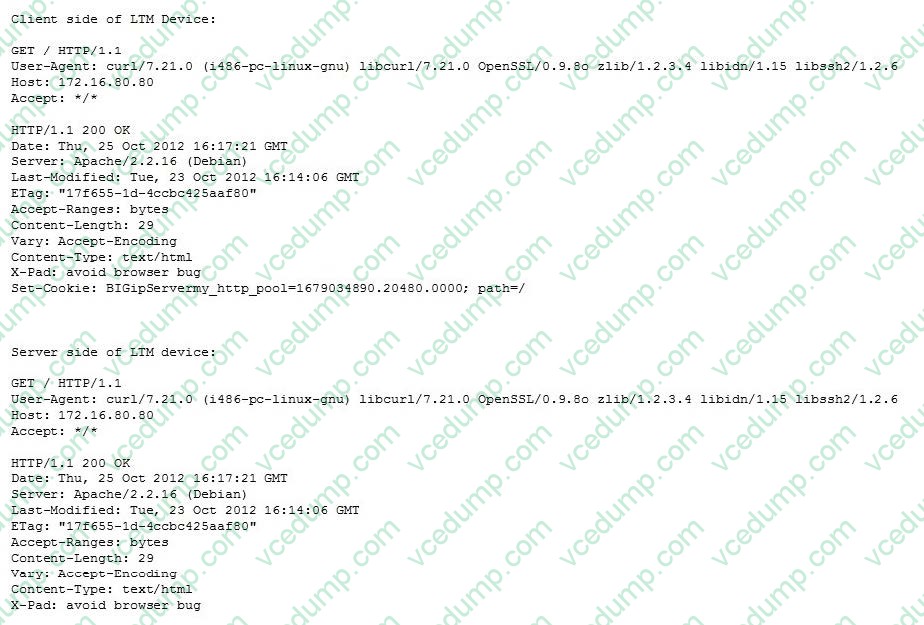

  Refer to the exhibit.



  A web application is configured to allow sessions to continue even after a user computer is shut down for the night. A new LTM device is configured to load balance the web application to several servers. The application owner reports that application users are logged out of the web application whenever their browser is restarted or computer is rebooted.

  What is the problem?

  A. The virtual server does NOT have persistence configured.
  B. The virtual server does NOT have persistence mirroring configured.
  C. The cookie set by the LTM device does NOT have an "Expires" value.
  D. The cookie set by the server is NOT being passed to client by the LTM device.
  C. The cookie set by the LTM device does NOT have an "Expires" value.

• Question 487:

  Users in a branch office are reporting a website is always slow. No other users are experiencing the problem. The LTM Specialist tests the website from the external VLAN along with testing the servers directly. All tests indicate normal behavior. The environment is a single HTTP virtual server on the external VLAN with a single pool containing three HTTP pool members on the internal VLAN.

  Which two locations are most appropriate to collect additional protocol analyzer data? (Choose two.)

  A. a user's machine
  B. the switch local to the user
  C. the LTM device's internal VLAN
  D. the LTM device's external VLAN
  E. a user's Active Directory authentication
  A. a user's machine
  B. the switch local to the user

• Question 488:

  An LTM device configuration is as shown



  What should be the two expected outcomes based on this configuration? (Choose two.)

  A. A client session that has been idle for 16 minutes will be sent to the same pool member
  B. A client session that has been idle for 20 minutes will be balanced to a new pool member
  C. A client session that has been idle for 14 minutes will be balanced to a newpool member
  D. A client session that has been idle for 48 minutes will be sent to the same pool members
  E. A client session that has been idle for 12 minutes will be sent to the same pool member
  B. A client session that has been idle for 20 minutes will be balanced to a new pool member
  E. A client session that has been idle for 12 minutes will be sent to the same pool member

• Question 489:

  Traffic to a pool of SFTP servers that share storage must be balanced by an LTM device.

  What are therequired profile and persistence settings for a standard virtual server?

  A. tcp, ctientsst, ftp serverssl persistence
  B. tcp, clientssl, serverssl persistence
  C. tcp, ftp - Source address persistence
  D. tcp - no persistence profile will be used
  C. tcp, ftp - Source address persistence

• Question 490:

  An LTM Specialist must perform a packet capture on a virtual server with an applied standard FastL4 profile. The virtual server 10.0.0.1:443 resides on vlan301. Which steps should the LTM Specialist take to capture the data payload successfully while ensuring no other virtual servers are affected?

  A. The standard FastL4 profile should have PVA acceleration disabled. Then the packet capture tcpdump -ni vlan301 should be executed on the command line interface.
  B. The packet capture tcpdump -ni vlan301 should be executed on the command line interface. There is no need to change profiles or PVA acceleration.
  C. A new FastL4 profile should be created and applied to the virtual server with PVA acceleration disabled. Then the packet capture tcpdump -ni vlan301 should be executed on the command line interface.
  D. The LTM device is under light load. The traffic should be mirrored to a dedicated sniffing device. On the sniffing device, the packet capture tcpdump -ni vlan301 should be executed.
  C. A new FastL4 profile should be created and applied to the virtual server with PVA acceleration disabled. Then the packet capture tcpdump -ni vlan301 should be executed on the command line interface.
