F5 303 Online Practice Questions and Exam Preparation

F5 303 Online Questions & Answers

• Question 171:

  A BIG-IP Administrator adds new Pool Members into an existing, highly utilized pool. Soon after, there are reports that the application is failing to load for some users. What pool level setting should the BIG-IP Administrator check?

  A. Availability Requirement
  B. Allow SNAT
  C. Action On Service Down
  D. Slow Ramp Time
  D. Slow Ramp Time

• Question 172:

  Refer to the exhibit.



  1.The ITM devices LTM 1 and LTM2 are configured in Device Group X (Sync-Failover)

  2.LTM3 and LTM4 are configured in Device Group Y (Sync-Only)

  3.An LTM specialist configures Device Group Z (Sync-Only) to keep several profiles in (sync-Only) to keep several profiles in sync across all devices.

  4.Device GROUP X has four Traffic Groups A.B.C and D configured.

  5.Device Group Y has four Traffic Groups E,

  F. G, and H configured

  6.Auto Fallback IS NOT Enabled.

  7.Each Device group is healthy and able to pass traffic for any traffic groupassigned to that Device Group.

  The data center that contains LTM2 and LTM4 loses power. After 10 minutes; power is restored and all devices are up and healthy.

  What is the state of each Traffic Group on each ITM device after power is restored?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  A. Option A

• Question 173:

  New Syslog servers have been deployed in an organization. The BIG-IP Administrator must reconfigure the BIG-IP system to send log messages to these servers. In which location in the Configuration Utility can the BIG-IP Administrator make the needed configuration changes to accomplish this?

  A. System > Logs > Configuration
  B. System > Configuration > Local Traffic
  C. System > Logs > Audit
  D. System > Configuration > Device
  A. System > Logs > Configuration

• Question 174:

  Where does a LTM Specialist view all of the objects that are part of a deployed iApp?

  A. iAPP> Application Policy > Objects
  B. Local Traffic . Virtual Servers > Applications
  C. IAP > Application Service > Components
  D. Local Traffic > Network Map > View Map
  C. IAP > Application Service > Components

• Question 175:

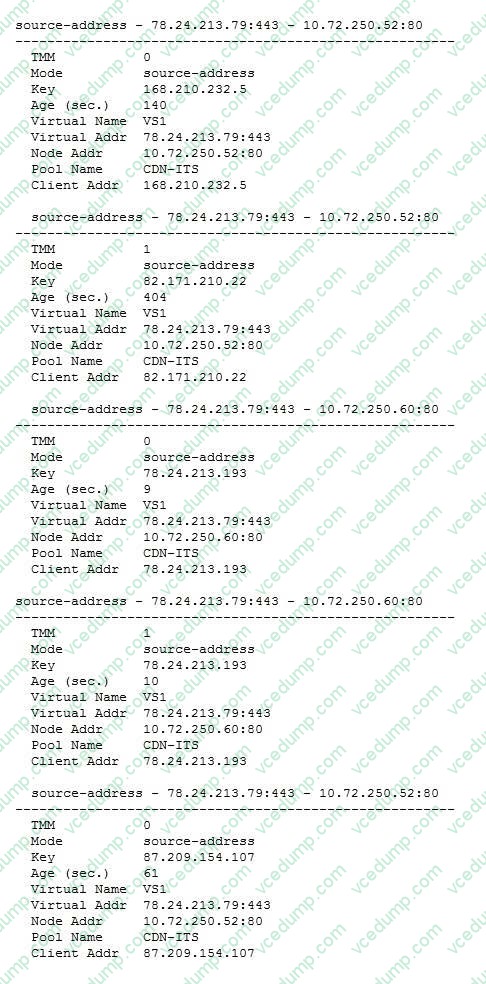

  Refer to the exhibit.



  A virtual server is set up on an LTM device as follows:

  Virtual server address 78.24.213.79

  Default Persistence ProfilE. source_addr, 600s.

  Pool NamE. Pool1

  Pool Members: 10.72.250.52:80 and 10.72.250.60:80 (both on Internal Vlan)

  There are several current connections to the virtual server, and pool member 10.72.250.52:80 has been set to a "Disabled" state.

  A tcpdump on the Internal Vlan shows traffic going to 10.72.250.52:80.

  How soon after the persistence table query was run can existing connections be refreshed/renewed to ensure that no requests are sent to 10.72.250.52?

  A. 196 seconds
  B. 460 seconds
  C. 539 seconds
  D. 590 seconds
  E. 591 seconds
  C. 539 seconds

• Question 176:

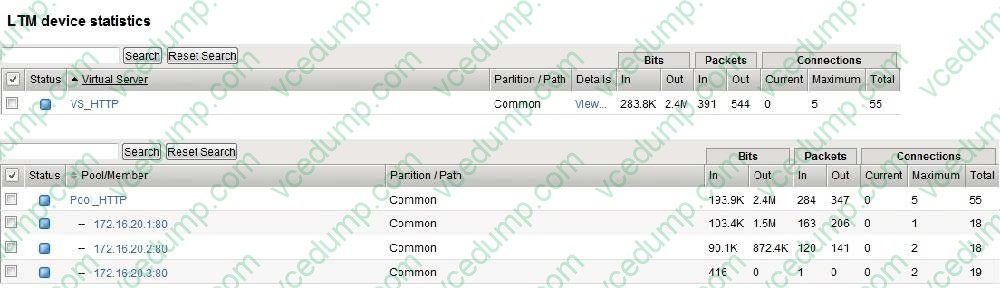

  Refer to the exhibit.



  An LTM Specialist is investigating intermittent page load issues being reported by users. What should the LTM Specialist do to resolve the issue?

  A. Remove HTTP monitor on the pool.
  B. Assign an HTTP monitor to the pool.
  C. Select least connections load balancing method on virtual server.
  D. Remove least connections load balancing method on virtual server.
  B. Assign an HTTP monitor to the pool.

• Question 177:

  An LTM device is running BIG-IP v10.2.0 software. The LTM Specialist is tasked with upgrading the LTM device to BIG-IP v11.2.0 HF1. The LTM Specialist starts the upgrade process by selecting the uploaded Hotfix and installing to an unused volume. After 10 minutes, the LTM Specialist checks the status of the upgrade process and notices that the process is stalled at 0%.

  What should the LTM Specialist verify?

  A. the selected volume has sufficient space available
  B. the base software version exists on the LTM device
  C. the LTM device has been restarted into maintenance mode
  D. the LTM device has an available Internet connection via the management interface
  B. the base software version exists on the LTM device

• Question 178:

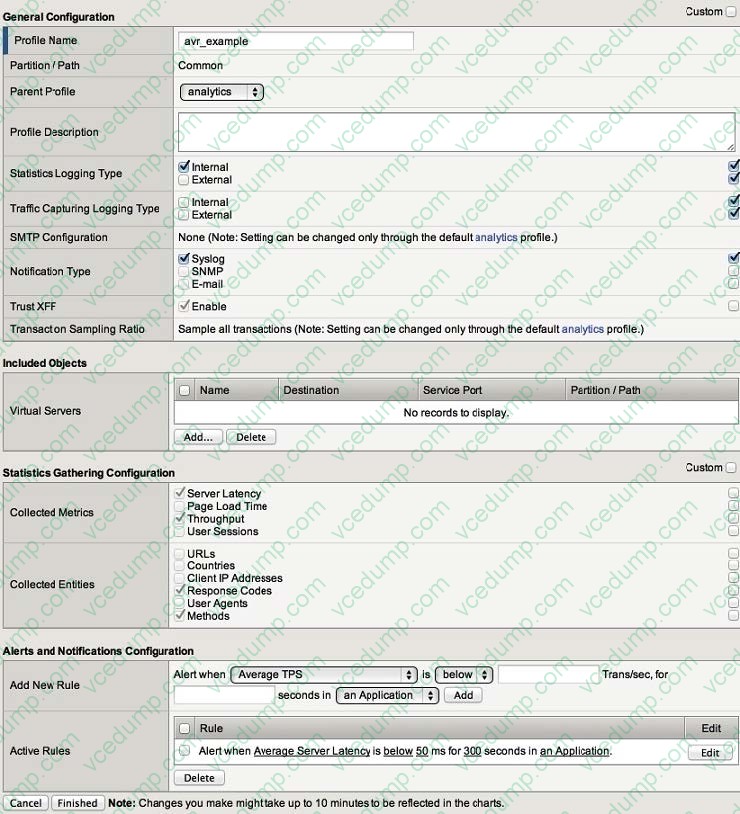

  Refer to the exhibit.



  An LTM Specialist sets up AVR alerts and notifications for a specific virtual server if the server latency exceeds 50ms. The LTM Specialist simulates a fault so that the server latency is consistently exceeding the 50ms threshold; however, no alerts are being received.

  Which configuration should the LTM Specialist modify to achieve the expected results?

  A. The rule should be adjusted to trigger when server latency is above 50ms.
  B. SNMP alerting should be enabled to allow e-mail to be sent to the support team.
  C. User Agents needs to be enabled to ensure the correct information is collected to trigger the alert.
  D. The metric "Page Load Time" needs to be enabled to ensure that the correct information is collected.
  A. The rule should be adjusted to trigger when server latency is above 50ms.

• Question 179:

  A BIG-IP Administrator needs to view the CPU utilization of a particular Virtual Server. Which section of the Configuration Utility should the administrator use for this purpose?

  A. Statistics > Module Statistics > Local Traffic > Virtual Addresses
  B. Statistics > Module Statistics > Traffic Summary
  C. Statistics > Analytics > Process CPU Utilization
  D. Statistics > Module Statistics > Local Traffic > Virtual Servers
  D. Statistics > Module Statistics > Local Traffic > Virtual Servers

• Question 180:

  A BIG-IP Administrator uses a device group to share the workload and needs to perform service on a BIG-IP device currently active for a traffic group. The administrator needs to enable the traffic group to run on another BIG-IP device in the device group. What should the administrator do to meet the requirement?

  A. Create a new Traffic Group and then fail to Standby Unit
  B. Select Traffic Group and then select Failover
  C. Select Traffic Group and then select Force to Standby
  D. Select Traffic Group on Primary Unit and then select Demote
  C. Select Traffic Group and then select Force to Standby
