F5 303 Online Practice Questions and Exam Preparation

F5 303 Online Questions & Answers

• Question 101:

  An LTM Specialist is tasked with ensuring that the syslogs for the LTM device are sent to a remote syslog server. The following is an extract from the config file detailing the node and monitor that the LTM device is using for the remote syslog server: monitor Syslog_15002 { defaults from udp dest *:15002 }

  node 91.223.45.231 {

  monitor Syslog_15002

  screen RemoteSYSLOG

  }

  There seem to be problems communicating with the remote syslog server. However, the pool monitor shows that the remote server is up.

  The network department has confirmed that there are no firewall rules or networking issues preventing the LTM device from communicating with the syslog server. The department responsible for the remote syslog server indicates that there

  may be problems with the syslog server. The LTM Specialist checks the BIG-IP LTM logs for errors relating to the remote syslog server. None are found. The LTM Specialist does a tcpdump:

  tcpdump -nn port 15002, with the following results:

  21:28:36.395543 IP 192.168.100.100.44772 > 91.223.45.231.15002: UDP, length 19

  21:28:36.429073 IP 192.168.100.100.39499 > 91.223.45.231.15002: UDP, length 169

  21:28:36.430714 IP 192.168.100.100.39499 > 91.223.45.231.15002: UDP, length 181

  21:28:36.840524 IP 192.168.100.100.39499 > 91.223.45.231.15002: UDP, length 169

  21:28:36.846547 IP 192.168.100.100.39499 > 91.223.45.231.15002: UDP, length 181

  21:28:39.886343 IP 192.168.100.100.39499 > 91.223.45.231.15002: UDP, length 144

  NotE. 192.168.100.100 is the self IP of the LTM device.

  Why are there no errors for the remote syslog server in the log files?

  A. The -log option for tcpdump needs to be used.
  B. The monitor type used is inappropriate.
  C. The "verbose" logging option needs to be enabled for the pool.
  D. When the remote syslog sever fails, it returns to service before the timeout for the monitor has expired.
  B. The monitor type used is inappropriate.

• Question 102:

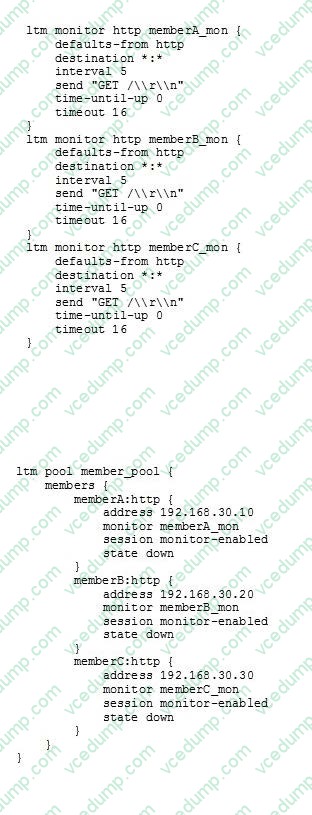

  Refer to the exhibit.



  How should the LTM Specialist minimize the configuration?

  A. Remove the pool member level monitors.
  B. The configuration is as minimized as possible.
  C. Create a single monitor and apply it to each pool member.
  D. Create a single monitor, apply it to the pool, and remove the pool member level monitors.
  D. Create a single monitor, apply it to the pool, and remove the pool member level monitors.

• Question 103:

  A BIG-IP Administrator is setting up a new BIG-IP device. The network administrator reports that the interface has an incompatible media speed. The BIG-IP Administrator needs to change this setting manually. From which location should the BIG-IP Administrator perform this task?

  A. On the Front Console
  B. In the TMOS Shell Command line
  C. In the Configuration Utility, Network > Interface
  D. In the Configuration Utility, System > Configuration
  C. In the Configuration Utility, Network > Interface

• Question 104:

  A BIG-IP Administrator plans to upgrade a BIG-IP device to the latest TMOS version.

  Which two tools could the administrator leverage to verify known issues for the target versions? (Choose two.)

  A. F5 University
  B. F5 Downloads
  C. F5 End User Diagnostics (EUD)
  D. FSiHealth
  E. F5 Bug Tracker
  D. FSiHealth
  E. F5 Bug Tracker

• Question 105:

  A BIG-IP device has only LTM and ASM modules provisioned. Both have nominal provisioning level. The BI6-IP Administrator wants to dedicate more resources to the LTM module. The ASM module must remain enabled. Which tmsh command should the BIG-IP Administrator execute to obtain the desired result?

  A. modify/sys provision asm level minimum
  B. modify /sys provision Itm level dedicated
  C. modify /sys provision asm level none
  D. modify /sys provision Itm level minimum
  A. modify/sys provision asm level minimum

• Question 106:

  An LTM Specialist needs to enable TCP connection re-use for a non-HTTP application. The application uses a simple request response protocol where each request and response iscontained within a single packet. Which configuration option should the LTM Specialist adjust?

  A. increase the connection limit for pool members
  B. increase the idle Timeout in a custom TCP profile
  C. use a Performance (Layer 4) Virtual Server
  D. assign aOneConnect profile
  D. assign aOneConnect profile

• Question 107:

  A Standard Virtual Server for a web application is configured with Automap for the Source Address Translation option. The original source address of the client must be known by the backend servers. What should the BIG-IP Administrator configure to meet this requirement?

  A. The Virtual Server type as Performance (HTTP)
  B. An HTTP profile to insert the X-Forward-For header
  C. An HTTP Transparent profile
  D. A SNAT Pool with the client IP
  B. An HTTP profile to insert the X-Forward-For header

• Question 108:

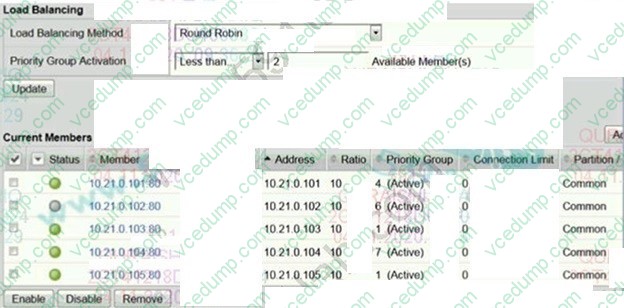

  Refer to the exhibit.



  Which two pool members are eligible to receive new connections? (Choose two)

  A. 10.21.0.102.80
  B. 10.21.0.104.80
  C. 10.21.0.105.80
  D. 10.21.0.101.80
  E. 10.21.0.103.80
  B. 10.21.0.104.80
  D. 10.21.0.101.80

• Question 109:

  An LTM Specialist configures a new virtual server with a single pool member. The LTM Specialist has NOT defined a health monitor for the pool, pool member or node. What is the status of the virtual server?

  A. Available (Enabled)
  B. Offline (Disabled)
  C. Unavailable (Enabled)
  D. Unknown (Enabled)
  D. Unknown (Enabled)

• Question 110:

  When importing a PEM formatted SSL certificate, which text needs to appear first in the file?

  A. --START CERTIFICATE....
  B. ...BEGIN CERTIFICATE....
  C. ...SECURITY CERTIFICATE....
  D. ...SSL CERTIFICATE....
  B. ...BEGIN CERTIFICATE....
