F5 301A Online Questions & Answers

• Question 121:

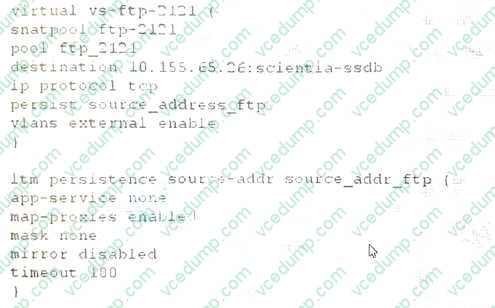

  An LTM Specialist is experiencing issues in a failover event. Certain long-lasting FTP event. Certain long-lasting FTP connections using a single node pool are forced to reconnect. The bigip.conf extract is shown:



  What does the LTM Specialist need to change in the configuration to avoid this issue?

  A. snatpool
  B. persistence mirroring
  C. connection mirroring
  D. ftp profile
  C. connection mirroring

• Question 122:

  An HA pair of LTM devices that load balance multiple HTTPS applications utilizes highly customized RAM Cache and compression profiles on each virtual server. The LTM Specialist who is administering the HA pair regularly observes

  entines in the log similar to the following:

  tmm tmm I708S1 011e0002.4. sweeper_update: aggressive mode activated (117504/138240 pages) No DoS attacks arc occurring. No user problems have been reported. Which step should the LTM Specialist take to help mitigate the issue?

  A. change the Adaptive Reaping High watermark
  B. change the Adaptive Reaping Low watermark
  C. allocate less memory to the RAM cache feature
  D. use a OneConnect profile
  B. change the Adaptive Reaping Low watermark

• Question 123:

  An LTM Specialist regularly provides analytics reports that show that traffic generated by different subnets within the organization. The LTM Specialist needs show the associate department names next the IP addresses in the reports. Which step should the LTM Specialist take to meet this requirement?

  A. use an iRule to change the output of the report
  B. export the report and add the department names manually
  C. create VLANs for each subnet and set the name accordingly
  D. define active subnets and assign a name to certain subnets
  C. create VLANs for each subnet and set the name accordingly

• Question 124:

  To improve application security, an LTM Specialist must configure a BIG application access. The BIG IP system to authenticate the client certificate before permitting application access. The BIG-IP system must also support the ability to red

  to redirect users to a certificate enrolment system without generating a browser error.

  Within the Client SSL profile, which value should the LTM Specialist select for the Client Certificate option?

  A. Require
  B. Request
  C. Demand
  D. ignore
  A. Require

• Question 125:

  Refer to the exhibit



  Given the bigip conf extract shown where the servers only talk http on port 80, which node will receive the next user request?

  A. 72.10.1.1
  B. 10.1.1.1
  C. 10.1.1.2 0
  D. 10.1.1.3
  D. 10.1.1.3

• Question 126:

  An LTM device configured with a management IP address and route and a series of self-IPs and TMM routes. Both management and TMM have a routing entry for 101 10/24 Application traffic is being load balanced and sent to pool member

  10.1.1.123 with SNAT Automap and configured. Which route will the LTM device use?

  A. TMM route regardless of the management port status
  B. both routes, which will duplicate traffic on both management and TMM interface
  C. equal cost multipath load balancing via both routes
  D. management route when TMM interface is down or TMM is offline
  E. management route regardless of the management port status
  A. TMM route regardless of the management port status

• Question 127:

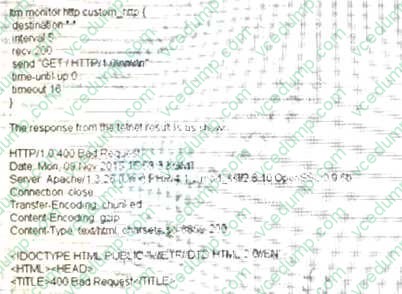

  An LTM Specialist discovers an issue with the custom http monitor that returns in a false positive status.

  The end users cannot get the right website, but the http monitor marks the pool member UP.

  What is causing the false positive result?



  A. The end user should use another type of browser.
  B. The response is chunked.
  C. The response is compressed.
  D. The Content-Type has value "iso-8859-200".
  D. The Content-Type has value "iso-8859-200".

• Question 128:

  Exhibit.



  Webserver_pool consists of 6 members. phpAuction_80_pool consists of 2 members LTM1 is the current Active member.

  LTM1 loses connectivity to 3 of the 6 members in the webserver_pool LTM2 still has connectivity to all servers.

  What is the expected failover behavior?

  A. LTM1 Standby / LTM2 Standby
  B. LTM1 Active /LTM2 Active
  C. LTM1 Active / LTM2 Standby
  D. LTM1 Standby / LTM2 Active
  C. LTM1 Active / LTM2 Standby

• Question 129:

  Refer to the exhibit.

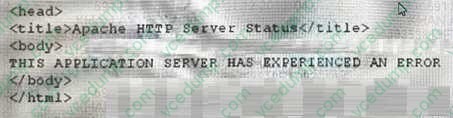

  The http monitor is applied to a pool. All members are enabled. One server responds as follows.



  What is the resulting status of this poo! member?

  A. Offline (Disabled)
  B. Offline (Enabled)
  C. Unavailable (Disabled)
  D. Available (Enabled)
  B. Offline (Enabled)

• Question 130:

  A customer wants to select the pool for an application based on information found in the path of the URL.

  For example:

  http://www.example.com/app 1 should be sent to the app 1 pool http.//www.exampie.com/app 2 should be sent to the app2 pool Which two profiles need to be assigned to the virtual server? (Choose two.)

  A. Client SSL
  B. Persistence
  C. TTP Compression
  D. HTTP
  E. TCP
  D. HTTP
  E. TCP
