Cisco Cisco Certifications 300-825 Questions & Answers

• Question 51:

  An administrator wants to automatically schedule conferences with a cluster of Cisco Meeting Server devices that are managed with Cisco TMS. How should Cisco TMS be configured to accomplish this goal?

  A. After the Cisco Meeting Server cluster is added, the Cisco TMS should failover an active conference to a different Cisco Meeting Server.

  B. After the first Cisco Meeting Server is added, all servers in the cluster should automatically be detected.

  C. When the first Cisco Meeting Server is added, the system name should automatically be detected.

  D. After the Cisco Meeting Server cluster is added, the primary Cisco Meeting Server should automatically failover to another cluster member.

  Correct Answer: D

• Question 52:

  An engineer must configure Cisco Meeting Server integration to Cisco UCM. Which DNS A record must be configured to accomplish this goal?

  A. Call Bridge

  B. SRV

  C. Conference Name

  D. Cisco UCM Subscriber

  Correct Answer: A

  Reference: https://www.cisco.com/c/en/us/support/docs/conferencing/meeting-server/213821-configure-and-integrate-cms-single-combi.html

• Question 53:

  CCNP Collaboration

  false

  8001

  849274932

  1234

  XnKexB0yWQ2iwfuoCe6AWQ

  2

  Refer to the exhibit. When a user dials 8001 to connect to a space that is hosted on Cisco Meeting Server, the user is prompted for a pin. The prompt says the user should press # to connect to a meeting without a pin, but guests and hosts

  must enter a pin before connecting to the meeting.

  Which configuration change resolves this issue?

  A. The secret value must be changed to be solely numeric instead of alpha-numeric.

  B. The passcode must be changed to be longer than four digits.

  C. All access methods that are associated with the space must be changed to include a pin.

  D. A callLegProfile must be created and associated with the space so that pins are not optional.

  Correct Answer: D

  Reference: https://www.cisco.com/c/en/us/support/docs/conferencing/meeting-server/213552-configure-and-troubleshoot-guest-and-hos.html#anc10

• Question 54:

  Content-Type: application/sdp Content-Length: 4938 v=0 o=Acano 0 0 IN IP4 10.0.101.120 s=c=IN IP4 10.0.101.120 b=CT:16 t=0 0 m=audio 50262 RTP/AVP 108 107 109 110 9 99 111 100 104 103 0 8 15 102 18 13 118 101 a=crypto:1 AEAD_AES_128_GCM ************************************************|2^48 a=crypto:2 AEAD_AES_256_GCM ********************************************************************|2^48 a=crypto:3 AES_CM_128_HMAC_SHA1_80 *******************************************************|2^48 a=crypto:4 AES_CM_128_HMAC_SHA1_32 *******************************************************|2^48

  m=video 50264 RTP/AVP 97 116 114 96 34 31 100 121 b=TIAS:16000 a=crypto:1 AEAD_AES_128_GCM ************************************************|2^48 a=crypto:2 AEAD_AES_256_GCM ********************************************************************|2^48 a=crypto:3 AES_CM_128_HMAC_sha1_80 *******************************************************|2^48 a=crypto:4 AES_CM_128_HMAC_sha1_32 *******************************************************|2^48 a=content:main a=sendrecv a=sprop-source:1 count=2;policies=cs:1 a=sprop-simul:1 1 * a=rtcp-fb:* nack pli a=rtcp-fb:* ccm fir a=rtcp-fb:* ccm cisco-scr a=extmap:1 http://protocols.cisco.com/virtualid a=extmap:2 http://protocols.cisco.com/framemarking a=rtpmap:97 H264/90000 a=fmtp:97 profile-level-id=42800a;max-mpbs=489600;max-fs=8160;max-cpb=4000;max-dpd=4752;max-fps=6000

  Refer to the exhibit. Users report that they do not see a high-quality picture on the high-definition endpoints when they call into Cisco Meeting Server. An engineer must extract the SDP that is offered by Cisco Meeting Server from the SIP traces to troubleshoot. What is the cause of this issue?

  A. Cisco Meeting Server is not configured for H.265 to support high-definition video calling.

  B. The AES ciphers are not compatible with high-definition video calling.

  C. The Content-Length value in the SDP does not support high-definition video calling.

  D. The SIP call bandwidth is not at a value that supports high-definition video calling.

  Correct Answer: D

• Question 55:

  An engineer configures Cisco Meeting Server as a conference resource for Cisco UCM. Cisco UCM has a secure SIP trunk to Cisco Meeting Server, but the server does not register to Cisco UCM. Which configuration resolves this issue?

  A. Ensure that the SIP trunk from Cisco UCM to Cisco Meeting Server is a secure trunk using port 5061.

  B. Add Cisco Meeting Server to the Cisco UCM SIP trunk with an IP address and not an FQDN.

  C. Set the Web Admin port on the Conference Bridge settings to match Cisco Meeting Server.

  D. Configure an MRGL that contains Cisco Meeting Server to be associated with device pools.

  Correct Answer: D

  Reference: https://www.cisco.com/c/en/us/support/docs/conferencing/meeting-server/213820-configure-cisco-meeting-server-and-cucm.html

• Question 56:

  Which Expressway-E service or protocol is required for external web app participants to join a Cisco Meeting Server version 3.0 conference as guests?

  A. XMPP

  B. TURN

  C. SIP

  D. H.323

  Correct Answer: B

• Question 57:

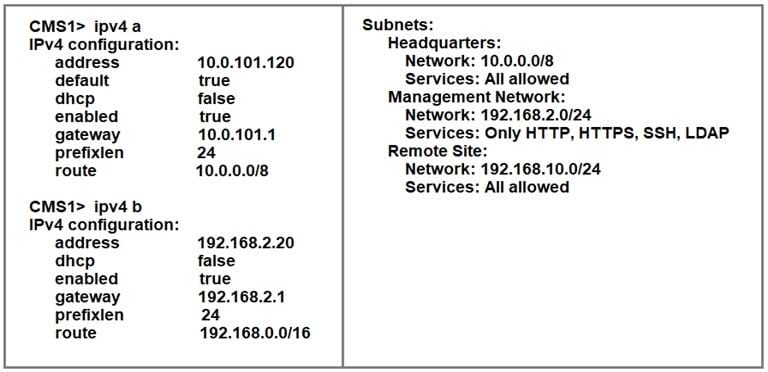

  Refer to the exhibit. An administrator troubleshoots an issue with Cisco Meeting Server. Endpoints that call from the remote site cannot connect, but endpoints that call from headquarters can connect. What should the administrator do to resolve this issue?

  A. Add a route for 192.168.10.0/24 to interface b.

  B. Set interface b as the default interface.

  C. Remove the route for 192.168.0.0/16 from interface b.

  D. Enable DHCP on interface a but not on interface b.

  Correct Answer: A

• Question 58:

  DRAG DROP

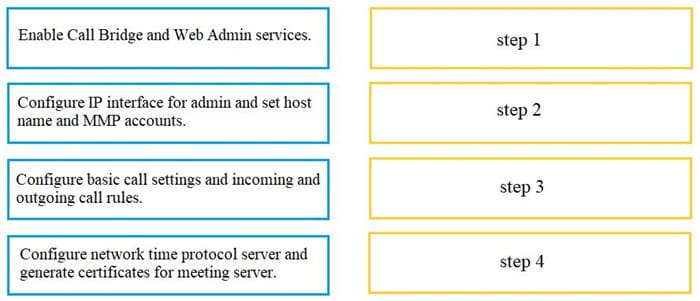

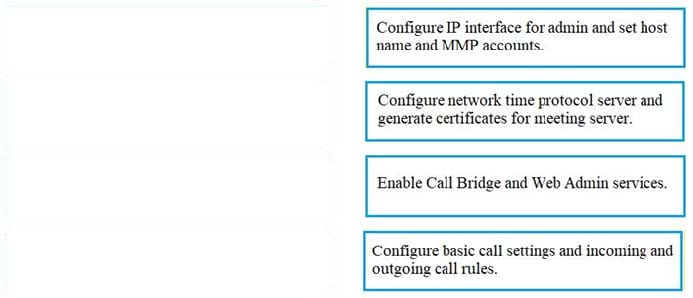

  Drag and drop the tasks from the left into the order on the right to install Cisco Meeting Server version 3.0.

  Select and Place:



  Correct Answer:



  Reference: https://www.cisco.com/c/dam/en/us/td/docs/conferencing/Cisco-Meeting-Management/Installation/Cisco-Meeting-Management-3-0-Installation-and-Configuration-Guide.pdf

• Question 59:

  DRAG DROP

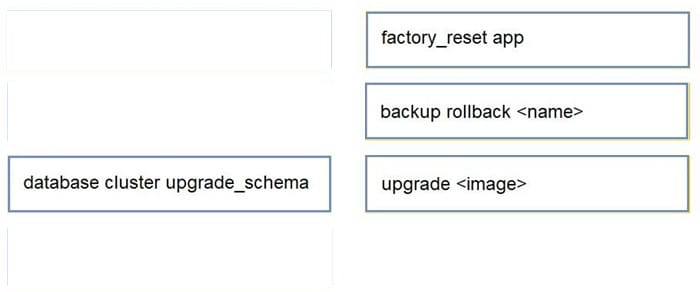

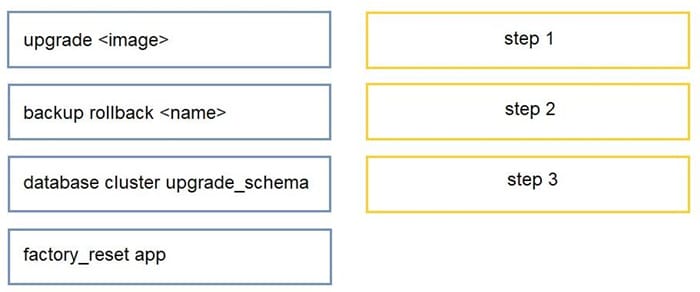

  A Cisco Meeting Server administrator upgrades a cluster but encounters an issue that requires downgrading to a previous version. Drag and drop the MMP commands from the left into the order on the right to perform the downgrade. Not all options are used.

  Select and Place:



  Correct Answer:



  Reference: https://www.cisco.com/c/en/us/support/docs/conferencing/meeting-server/214620-upgrade-downgrade-cms-server.html#anc11

• Question 60:

  DRAG DROP

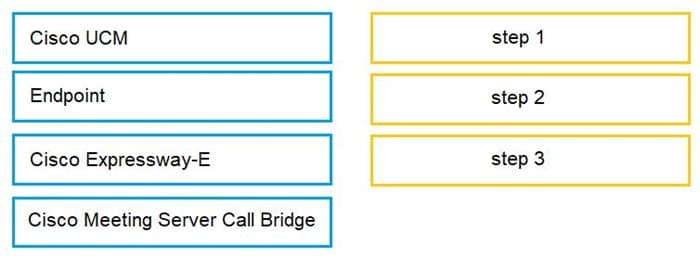

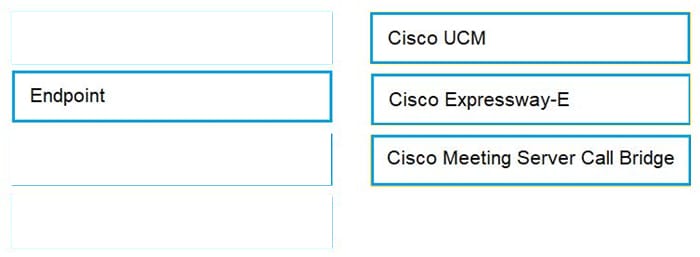

  Drag and drop the options from the left into the order on the right to make the call flow connect an endpoint that is registered to Cisco UCM to a Cisco Meeting Server meeting. Not all options are used.

  Select and Place:



  Correct Answer:
