Cisco CCNP Collaboration 300-825 Questions & Answers

• Question 1:

  An administrator configures a Call Bridge to record meetings. Which two configuration elements tell the Call Bridge where to find the recording server? (Choose two.)

  A. tenants

  B. IVR

  C. DTMF combination

  D. sipRecorderUri

  E. outbound rules

  Correct Answer: AD

  Reference: https://www.cisco.com/c/dam/en/us/td/docs/conferencing/ciscoMeetingServer/Deployment_Guide/Version-3-0/Cisco-Meeting-Server-3-0-Single-Combined-Server-Deployment.pdf

• Question 2:

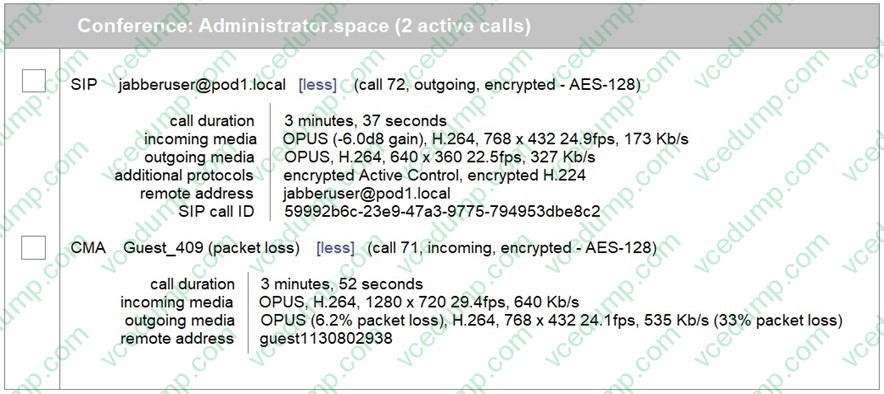

  Refer to the exhibit. Two participants are in a conference together. On which call leg and direction does the packet loss occur?

  A. from Cisco Meeting Server to the web app

  B. from Cisco Meeting Server to the SIP client

  C. from the web app to Cisco Meeting Server

  D. from the SIP client to Cisco Meeting Server

  Correct Answer: A

• Question 3:

  Which of following protocol or Expressway-E service is required for external web app participants to join a Cisco Meeting Server version 3.0 conference as guests?

  A. H.323

  B. SIP

  C. TURN

  D. XMPP

  Correct Answer: C

• Question 4:

  What is the maximum number of full HD external web app calls that is supported per large OVA Expressway?

  A. 800

  B. 600

  C. 150

  D. 200

  Correct Answer: B

• Question 5:

  Which type of zone should be configured on the Expressway-C to route calls to Cisco Meeting Server spaces?

  A. ENUM

  B. DNS

  C. traversal

  D. neighbor

  Correct Answer: D

• Question 6:



  Refer to the exhibit. A Cisco Meeting Management operator reports that there is a delay in seeing participants join and leave in the participant list, and there are issues with audio and video mute operations. The administrator investigates and sees notifications in Cisco Meeting Management.

  Which step resolves this issue?

  A. Free a CDR slot on Cisco Meeting Server.

  B. Set the CDR address in Cisco Meeting Management under Settings > CDR.

  C. Manually set the Cisco Meeting Management CDR address in Cisco Meeting Server and Cisco Meeting Management.

  D. Change the CDR address to use HTTPS.

  Correct Answer: C

• Question 7:

  An administrator sets up conference resources by using a clustered Cisco Meeting Server deployment for video endpoints that are registered to Expressway. The administrator must ensure that no single server gets overloaded within the cluster. What should be configured to accomplish this goal?

  A. a record with the cluster FQDN of the Cisco Meeting Server in the external DNS servers.

  B. Expressway-C as the traversal client to Expressway-E.

  C. Cisco Meeting Server and Expressway-C in the same domain.

  D. a separate zone for Cisco Meeting Server servers in the cluster.

  Correct Answer: D

• Question 8:

  A company wants to keep conferencing resources isolated and local for a new branch. The branch has one administrator for both internal and external traffic. Which Cisco Meeting Server deployment should be used?

  A. Scalable and Resilient Cisco Meeting Server

  B. Cisco Meeting Server Edge

  C. Single Combined Cisco Meeting Server

  D. Single Split Cisco Meeting Server

  Correct Answer: D

• Question 9:

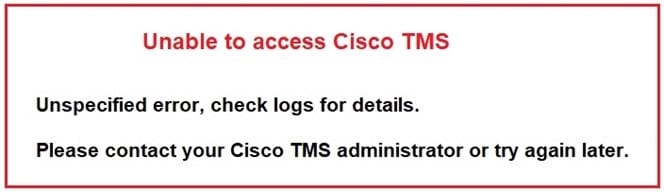

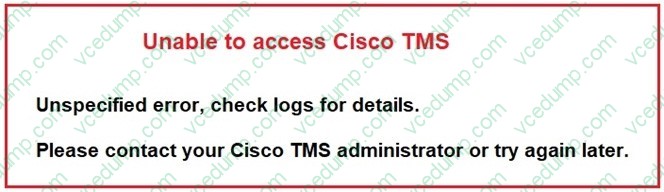

  Refer to the exhibit. An administrator tries to access Cisco TMS GUI and sees this error message. Which step resolves this issue?

  A. Restart the Windows server that hosts Cisco TMS.

  B. Connect to the Windows server that hosts Cisco TMS and manually review the service logs.

  C. Navigate directly to the Cisco TMS server maintenance page and download diagnostic files.

  D. Restart World Wide Web Publishing Service on the Windows server that hosts Cisco TMS.

  Correct Answer: D

• Question 10:

  In a cluster of Cisco Meeting Servers, one of the peer servers has the FQDN CMS1.local, and the web admin is running on 445. Which server address must be configured in the clustered Call Bridges page?

  A. http://cms1.local

  B. https://cms1.local

  C. https://cms1.local:445

  D. http://cms1.local:445

  Correct Answer: C
