Cisco CCNP 300-815 Questions & Answers

• Question 31:

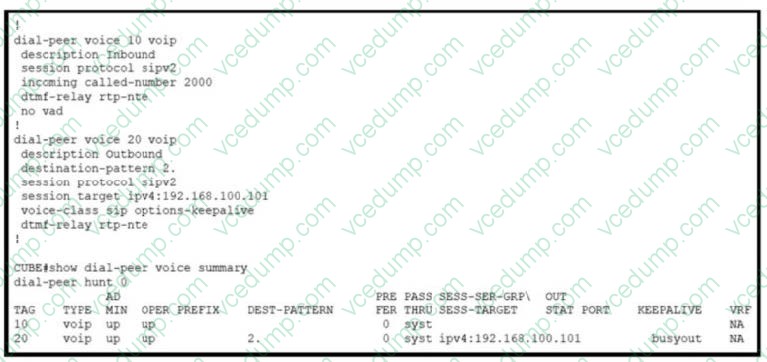

  Refer to the exhibit. When setting up a new connection to Cisco UCM, the engineer must use out-of-band DTMF. Which configuration meets this requirement?

  A. dtmf-relay h245-alphanumeric

  B. dtmf-relay sip-kpml

  C. dtmf-relay cisco-rtp

  D. dtmf-relay cisco-rtp

  Correct Answer: B

• Question 32:

  An organization has decided to implement hunt groups to help with the distribution of calls between different members. The administrator must configure hunt groups on Cisco UCM. In the configuration, at which step does an administrator have the option to configure a distribution algorithm (top down, circular, longest idle time, broadcast)?

  A. hunt group

  B. line group

  C. hunt list

  D. route list

  Correct Answer: C

• Question 33:

  An administrator must control the number of calls to a remote specific site to reduce bandwidth constraints. The users on that remote site report bad quality of the calls passing through that WAN link. Which action must the administrator take in Cisco UCM to resolve the issue?

  A. Use RSPV.

  B. Use Location Bandwidth Manager.

  C. Use Expressway deployment.

  D. Use Call Allow Controller.

  Correct Answer: B

• Question 34:

  Which set of commands binds SIP media and signaling to interface GigabitEthernet0/0 when dial peer 1 is chosen for call routing?

  A. dial-peer voice 1 voip voice-class source interface GigabitEthernet0/0

  B. voice service voip bind sip source-interface GigabitEthernet0/0

  C. voice service voip sip bind all source-interface GigabitEthernet0/0

  D. dial-peer voice 1 voip voice-class bind control source-interface GigabitEthernet0/0 voice-class sip bind media source-interface GigabitEthernet0/0

  Correct Answer: C

• Question 35:



  Refer to the exhibit. All calls from site A to site B are failing, and the issue has been identified as a media negotiation problem. Which configuration change resolves this issue?

  A. Increase the bandwidth allowance between the RTP_Reg and SJ_Reg regions to 64 kbps.

  B. Enable Early Offer on the SIP trunk.

  C. Create a new audio codec preference list with G.711 U-law 64k as the highest priority and apply it to RTP_Reg and SJ_Reg.

  D. Disable G.722 on all devices at both sites.

  Correct Answer: C

• Question 36:

  A company was looking at the IT charges and saw many long-distance and international calls primarily to sites in North America and around the world. The administrator wants to optimize the PSTN expense. Which dial plan configuration reduces PSTN connectivity charges by using the IP network to bring the egress point to the PSTN as close as possible to the called number?

  A. translation patterns

  B. tail end hop off

  C. client matter codes

  D. dial rules

  Correct Answer: B

• Question 37:

  An administrator is troubleshooting call failures on an H.323 gateway via the CLI. To see signaling for media and call setup, which debug must the Administrator turn on?

  A. debug H.323 messages

  B. debug H.225 asn1

  C. debug H.246 asn 1

  D. debug H.225 media

  E. debug H.323 asn 1

  Correct Answer: B

• Question 38:

  Which two statements are correct with respect to the Client Matter Code setting in the route pattern configuration? (Choose two.)

  A. The Client Matter Code feature does not support overlap sending because the Cisco Unified CM cannot determine when to prompt the user for the code.

  B. If you check the Allow Overlap Sending check box, the Require Client Matter Code check box becomes disabled.

  C. If you check the Allow Overlap Sending check box, you can also check the Require Client Matter Code check box.

  D. The Client Matter Code feature does support overlap sending because the Cisco Unified Communications Manager can determine when to prompt the user for the code.

  E. The Client Matter Code has the option to configure Authorization Level such as in the Forced Authorization Code.

  Correct Answer: AB

• Question 39:

  A user reports that when they attempt to log out from the Cisco Extension Mobility service by pressing the services button, they cannot log out. What is cause of this issue?

  A. The Cisco Extension Mobility service has not been configured on the phone.

  B. Network latency should be checked since there might be a significant delay between the button being pressed and it being recognized by the Cisco Extension Mobility service.

  C. The user device profile has not been assigned to the user.

  D. The user device profile is not subscribed to the Cisco Extension Mobility service.

  Correct Answer: D

• Question 40:

  An administrator configured Cisco Unified Mobility to block access to remote destinations for certain caller IDs. A user reports that a blocked caller was able to reach a remote destination. Which action resolves the issue?

  A. Configure an access list.

  B. Configure Single Number Reach.

  C. Configure Mobile Voice Access.

  D. Configure a mobility identity.

  Correct Answer: C

  Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/admin/10_5_2/ccmfeat/CUCM_BK_C3A84B33_00_cucm-feature-configuration-guide_1052/CUCM_BK_C3A84B33_00_cucm-feature-configurationguide_chapter_010.html
