Cisco 300-415 Online Practice Questions and Exam Preparation

Cisco 300-415 Online Questions & Answers

• Question 111:

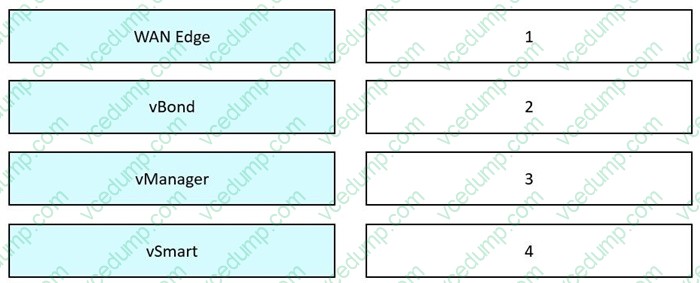

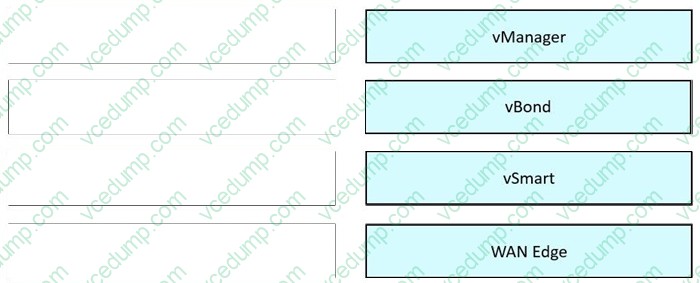

  DRAG DROP

  Drag and drop the devices from the left into order on the right to upgrade the software from version 19 to version 20.

  Select and Place:





• Question 112:

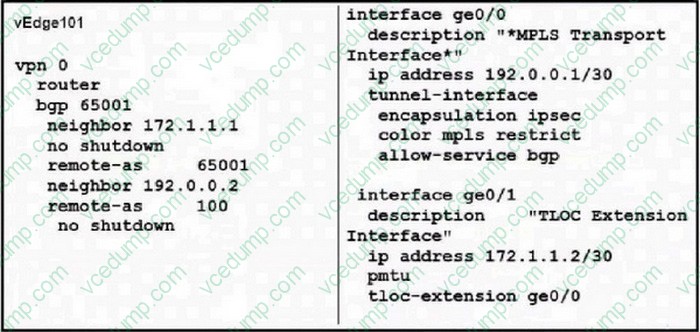

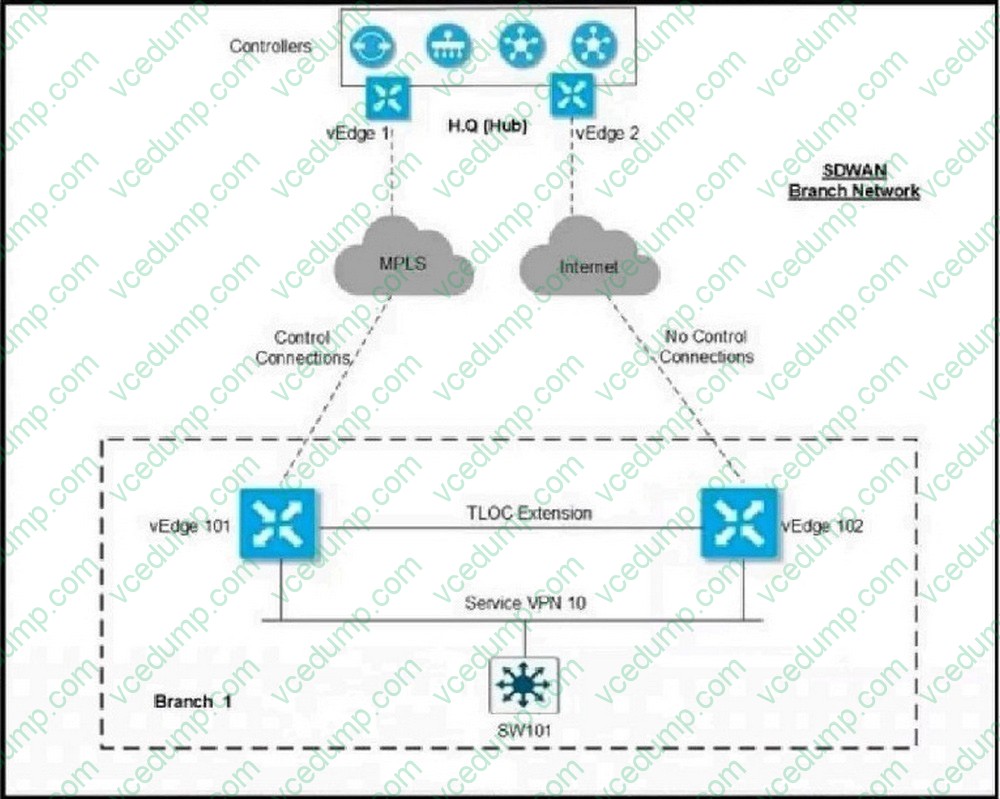

  Refer to the exhibit.





  vEdge102 must form a control connection over MPLS using TLOC extension and dynamic routing.

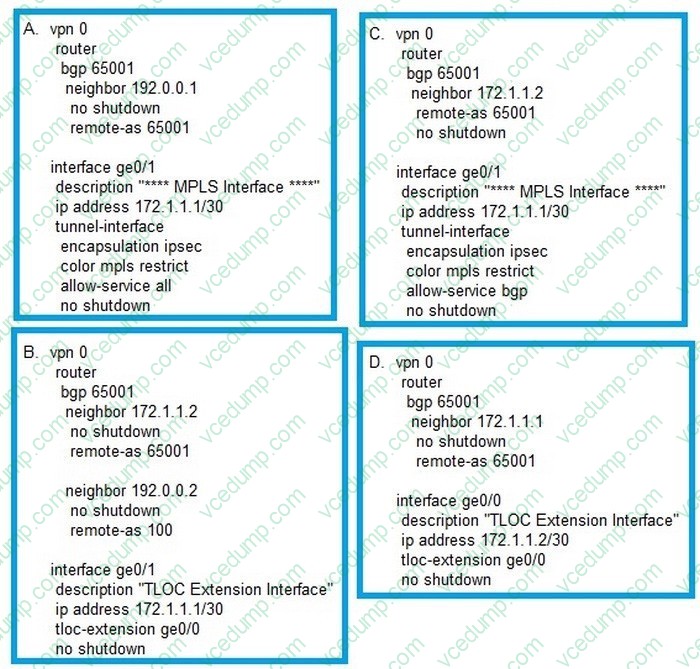

  Which configuration accomplishes the task?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  C. Option C

• Question 113:

  How many cloud gateway instance(s) can be created per region when provisioning Cloud OnRamp for Multicloud from AWS in a multiregion environment?

  A. one
  B. two
  C. three
  D. four
  A. one

• Question 114:

  An engineer configured a data policy called ROME-POLICY.

  Which configuration allows traffic flow from the Rome internal network toward other sites?

  A. apply-policy site-list Rome data-policy ROME-POLICY from-tunnel
  B. apply-policy site-list Rome data-policy ROME-POLICY from-service
  C. site-list Rome control-policy ROME-POLICY in
  D. site-list Rome control-policy ROME-POLICY out
  A. apply-policy site-list Rome data-policy ROME-POLICY from-tunnel

• Question 115:

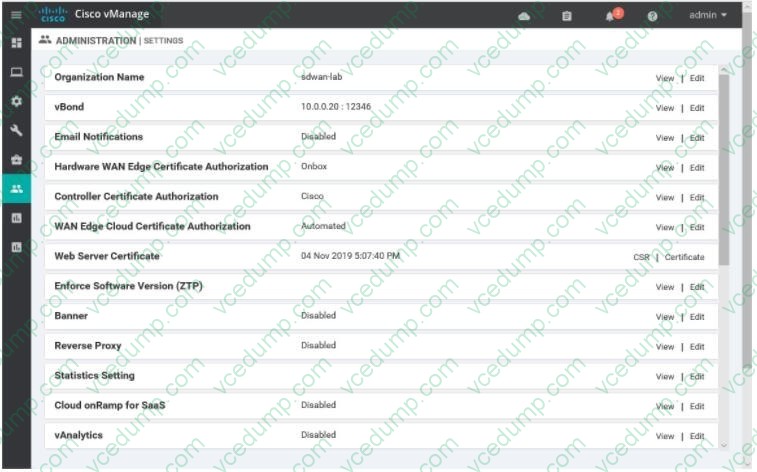

  Which port is used for vBond under controller certificates if no alternate port is configured?

  A. 12345
  B. 12347
  C. 12346
  D. 12344
  C. 12346

• Question 116:

  An administrator is configuring the severity level on the vManage NMS for events that indicate that an action must be taken immediately.

  Which severity level must be configured?

  A. warning
  B. error
  C. critical
  D. alert
  D. alert

  ---

  Explanation

  Select the severity of the syslog message to save. The severity indicates the seriousness of the event that generated the 1. message. priority can be one of the following:

  2. Emergency - System is unusable (corresponds to syslog severity 0).

  3. Alert - Action must be taken immediately (corresponds to syslog severity 1).

  4. Critical - Critical: A serious condition (corresponds to syslog severity 2).

  5. Error - An error condition that does not fully impair system usability (corresponds to syslog severity 3).

  6. Warning - A minor error condition (corresponds to syslog severity 4).

  7. Notice - A normal, but significant condition (corresponds to syslog severity 5).

  8. Informational - Routine condition (the default) (corresponds to syslog severity 6).

• Question 117:

  Which command on a WAN Edge device displays the information about the colors present in the fabric that are learned from vSmart via OMP?

  A. show omp peers
  B. show omp route
  C. show omp sessions
  D. show omp tlocs
  D. show omp tlocs

  ---

  Explanation

  References:

  https://www.cisco.com/c/en/us/td/docs/routers/sdwan/command/sdwan-cr-book/sdwan-cr-book_chapter_0100.html#wp1675287742

• Question 118:

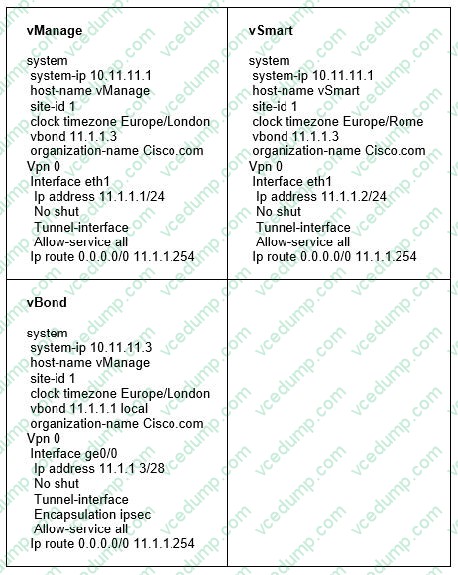

  Refer to the exhibit.



  Which two configurations are needed to get the WAN Edges registered with the controllers when certificates are used? (Choose two)

  A. Generate a CSR manually within vManage server
  B. Generate a CSR manually on the WAN Edge
  C. Request a certificate manually from the Enterprise CA server
  D. Install the certificate received from the CA server manually on the WAN Edge
  E. Install the certificate received from the CA server manually on the vManage
  A. Generate a CSR manually within vManage server
  E. Install the certificate received from the CA server manually on the vManage

  ---

  Explanation

  https://www.cisco.com/c/dam/en/us/td/docs/solutions/CVD/SDWAN/cisco-sd-wan-certificates-deploy-2020aug.pdf

• Question 119:

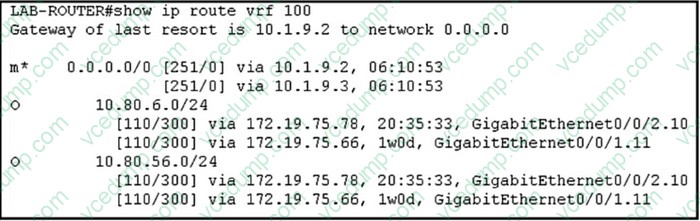

  Refer to the exhibit.



  The network administrator has configured a centralized topology policy that results in the displayed routing table at a branch office.

  Which two configurations are verified by the output? [Choose two.)

  A. The routing table is for the transport VPN.
  B. The default route is learned via OMP.
  C. This routing table is from a cEdge router.
  D. The default route is configured locally.
  E. The configured policy is adding a route tag of 300 to learned routes.
  B. The default route is learned via OMP.
  C. This routing table is from a cEdge router.

• Question 120:

  What is the behavior of vBond orchestrator?

  A. It builds permanent connections with vSmart controllers.
  B. It builds permanent connections with WAN Edge routers.
  C. It updates vSmart of WAN Edge routers behind NAT devices using OMP.
  D. It maintains vSmart and WAN Edge routers secure connectivity state.
  D. It maintains vSmart and WAN Edge routers secure connectivity state.

  ---

  Explanation

  References:

  https://www.cisco.com/c/en/us/td/docs/routers/sdwan/configuration/sdwan-xe-gs-book/system-overview.html
