Cisco 300-370 Online Practice Questions and Exam Preparation

Cisco 300-370 Online Questions & Answers

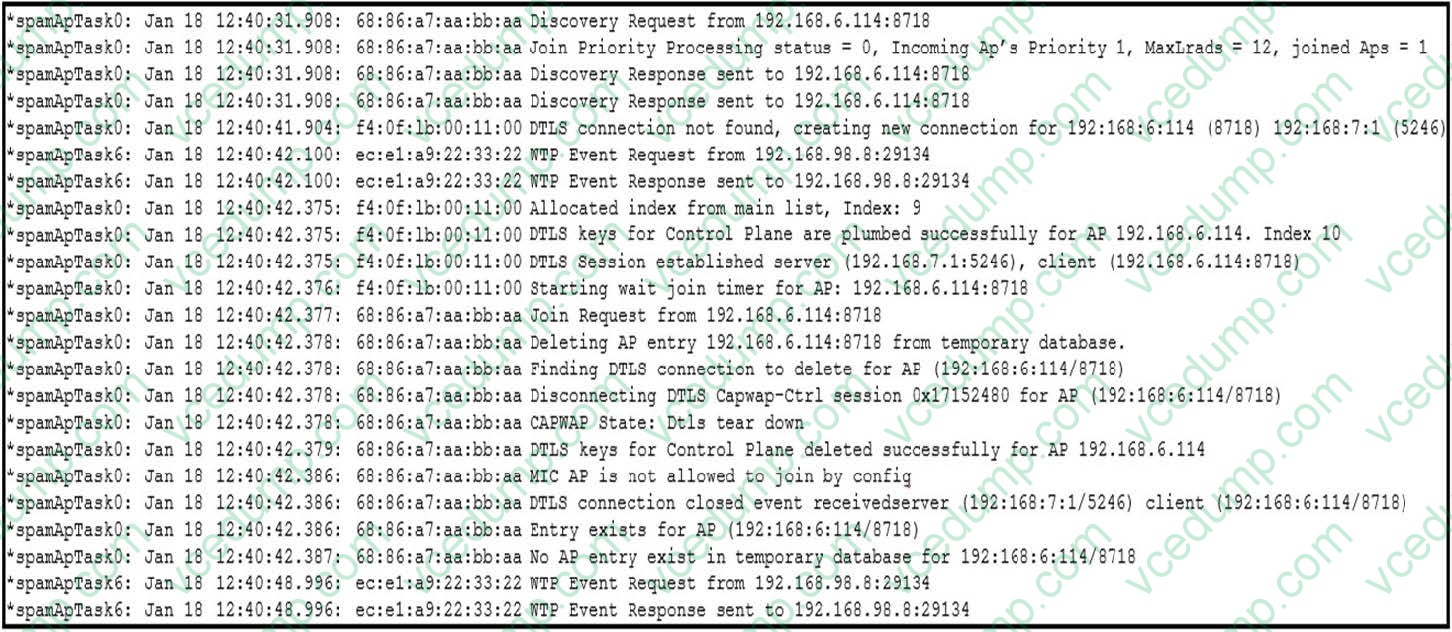

• Question 41:



  Refer to the exhibit. An engineer has connected APs with locally significant certificates and is joining them to the controller. What is causing one of the APs to fail the join phase?

  A. The controller auth-list is not configured to accept LCS apps.
  B. The AP does not have the required certificate.
  C. The time configured on the controller does not match that of the AP certificate.
  D. The controller does not have the config auth-list ap-policy mic disable command.
  D. The controller does not have the config auth-list ap-policy mic disable command.

• Question 42:

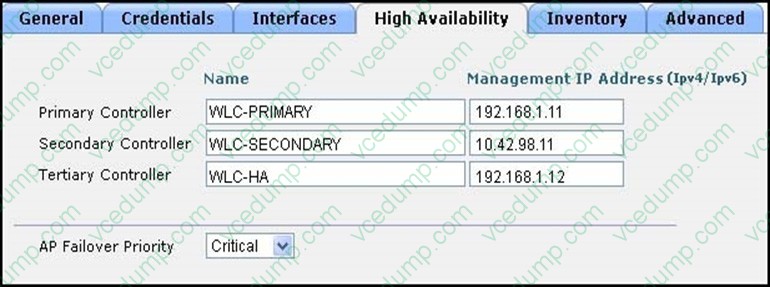

  Refer to the exhibit.



  A network engineer has identified that during a recent controller failure, several access points failed over to the tertiary controller instead of the secondary controller. Pictured is a configuration from one of the access points.

  Which is the most likely reason for this occurring?

  A. The secondary controller was at capacity.
  B. The tertiary controller is an HA-SKU controller, so it took priority.
  C. The secondary controller is an SSO configuration.
  D. The tertiary controller is in the same subnet as the primary controller
  D. The tertiary controller is in the same subnet as the primary controller

• Question 43:

  An engineer has received an alarm on a wireless LAN controller and is unsure of its meaning. The engineer attempted to ping the wireless LAN controller interfaces. Which troubleshooting methodology does this action demonstrate?

  A. bottom-up
  B. follow the path
  C. shoot from the hip
  D. top-down
  E. divide and conquer
  E. divide and conquer

• Question 44:

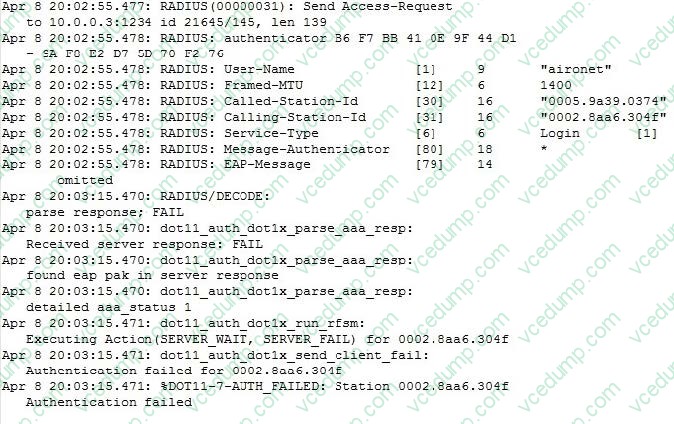

  Refer to the exhibit.



  A client reports being unable to log into the wireless network. According to the output, which network information should be verified?

  A. the Failed Attempts log on the authentication server
  B. that the AP has IP connectivity to the authentication server
  C. that the user has an account on the authentication server
  D. that the authentication and accounting configuration are correct
  B. that the AP has IP connectivity to the authentication server

• Question 45:

  An AP will be deployed to an area where DHCP Option 43 is unavailable and the WLAN engineer is unable to have DNS modifications made to support this AP. Which two actions can enable the AP to join the WLC? (Choose two.)

  A. issue the clear capwap private-config command in the AP console.
  B. Pre-stage or prime the AP on the same Layer 2 VLAN as the WLC.
  C. Issue the capwap ap ip default-gateway WLC IP address command in the AP console.
  D. Issue the capwap ap ip address WLC IP address command in the AP console.
  E. Issue the capwap ap controller ip address WLC IP address command in the AP console.
  A. issue the clear capwap private-config command in the AP console.
  D. Issue the capwap ap ip address WLC IP address command in the AP console.

• Question 46:

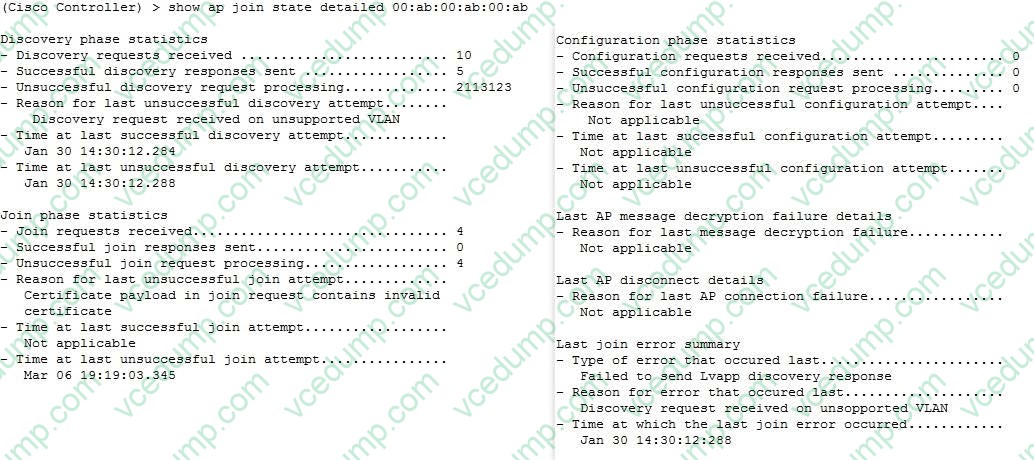

  Refer to the exhibit.



  Which statement about the join process of the access point is true?

  A. The time on the controller is outside of the certificates validity time interval, so the join phase failed.
  B. The AP moved from this controller to its primary controller.
  C. The controller rejected most of the discovery requests from the AP because they were not received on the management interface subnet. The AP failed to join the controller.
  D. The AP successfully joined the controller.
  E. The AP failed to join because the self-signed certificate of the AP on the controller was not correct.
  C. The controller rejected most of the discovery requests from the AP because they were not received on the management interface subnet. The AP failed to join the controller.

• Question 47:

  An engineer is trying to prime a lightweight access point running 8.2 code using the CLI with an IP address of 10.10.10.100/24. Which command set must the engineer input to manually configure this access point?

  A. enable iwapp ap ip address 10.10.10.100 255.255.255.0
  B. enable capwap ap ip address 10.10.10.100 255.255.255.0
  C. configure terminal interface Dot11Radio0 ip address 10.10.10.100 255.255.255.0
  D. configure terminal interface BVI 1 ip address 10.10.10.100 255.255.255.0
  B. enable capwap ap ip address 10.10.10.100 255.255.255.0

• Question 48:

  Which three components are needed to identify the zone of impact for non-802.11 sources of 2.4 GHz and 5.0 GHz interference? (Choose three.)

  A. WLC
  B. MSE
  C. RF site survey tool
  D. Wi-Fi analyzer
  E. CleanAir AP
  F. spectrum analyzer
  C. RF site survey tool
  E. CleanAir AP
  F. spectrum analyzer

• Question 49:

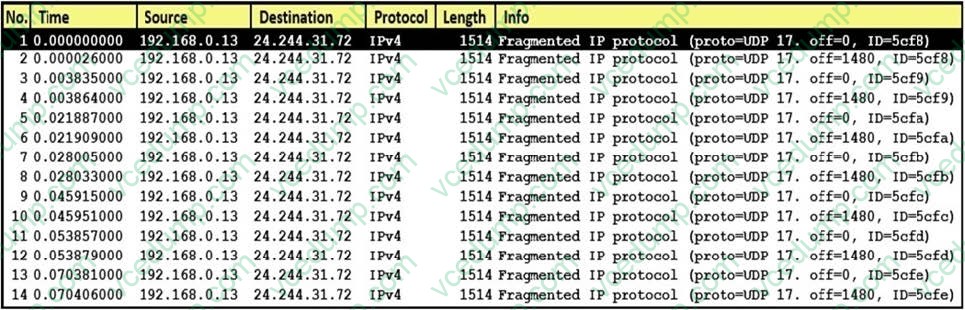

  Refer to the exhibit. Wireless users notify the helpdesk of poor wireless performance. Based on the packet capture from a client PC, what is the cause of the connectivity issue?

  A. TCP retransmissions
  B. MSS mismatch
  C. MTU mismatch
  D. UDP retransmissions
  C. MTU mismatch

• Question 50:

  A WLAN was installed at a high AP density. DTPC is lowering the transmit power of many APs too low. Which change in the DTPC transmit power threshold must be made to allow APs to globally increase AP transmit power by 3dBm?

  A. from 70 dBm to 73 dBm
  B. from -70 dBm to -73 dBm
  C. from 70 dBm to 67 dBm
  D. from -70 dBm to -67 dBm
  D. from -70 dBm to -67 dBm
