Cisco 300-170 Online Practice Questions and Exam Preparation

Cisco 300-170 Online Questions & Answers

• Question 111:

  You plan to use L3Out connections when implementing Layer 3 multicast. Which statement about the router ID configuration is true?

  A. The router ID must be unique for each L3Out on the same node in a VRF.
  B. The router ID must be configured as a loopback address.
  C. Each node in a VRF must use the same router ID.
  D. The router ID must be an IPv4 address in a range of 224.0.0.0 - 239.255.255.255.
  B. The router ID must be configured as a loopback address.

• Question 112:

  You must apply a contract to all of the EPGs in a tenant. The solution must ensure that the contract is also applied to any new EPGs that are added to the tenant. Which options must you use?

  A. the GUI
  B. the vzAny managed object
  C. the RESR API
  D. a Python script
  B. the vzAny managed object

• Question 113:

  You create a dynamic VLAN pool to be used for Virtual Machine Manager integration. On which two other components must you ensure the VLANs in the pool are allowed? (Choose two.)

  A. AVS
  B. Cisco Nexus 1000V
  C. the intermediate switch
  D. vSwitch
  E. the Cisco UCS blade system
  A. AVS
  D. vSwitch

• Question 114:

  Which description of EPGs is true?

  A. A single subnet can be extended across several EPGs.
  B. EPGs can only be linked to physical domains.
  C. EPGs can contain endpoints from multiple tenants.
  D. Communication between EPGs is governed by static path binding policies.
  A. A single subnet can be extended across several EPGs.

  ---

  Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/1-x/Operating_ACI/guide/b_Cisco_Operating_ACI/b_Cisco_Operating_ACI_chapter_0111.html

• Question 115:

  Which two descriptions of deploying VSMs to a VMware vSphere environment are true? (Choose two.)

  A. A VSM pair can manage multiple VMware vSphere clusters.
  B. Multiple VSM pairs can be deployed within one data center.
  C. A VSM pair can manage multiple VMware vCenter deployments.
  D. Multiple VSM pairs can be deployed as VMware NSX edges.
  E. A VSM pair can manage multiple VMware vSphere data centers.
  B. Multiple VSM pairs can be deployed within one data center.
  D. Multiple VSM pairs can be deployed as VMware NSX edges.

• Question 116:

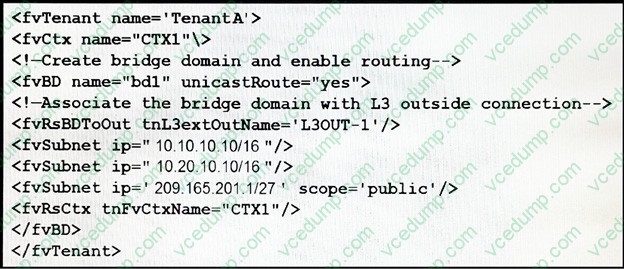

  Refer to the exhibit. What is created by the configuration?

  A. an L3Out
  B. an L3OUT-1 bridge domain
  C. three subnets within a BD
  D. a CTX1 tenant
  A. an L3Out

• Question 117:

  Which two statements about the configuration synchronization feature on Cisco Nexus switches are true? (Choose two.)

  A. Config-sync mode allows you to create a switch profile that can be used to configure a peer switch so that both peers have the same configuration.
  B. Configuration synchronization can be used to synchronize all parts of the vPC configuration.
  C. Configuration synchronization uses the Cisco Fabric Services over IPv6 protocol.
  D. FEX interfaces are incompatible with configuration synchronization.
  E. Configuration synchronization uses the Cisco Fabric Services over IP protocol.
  A. Config-sync mode allows you to create a switch profile that can be used to configure a peer switch so that both peers have the same configuration.
  E. Configuration synchronization uses the Cisco Fabric Services over IP protocol.

  ---

  Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus5000/sw/operations/n5k_config_sync_ops.html#pgfId-999073

• Question 118:

  Physical interface, except mgmt0, can be shared between storage and user VDC when using which protocol?

  A. FCoE
  B. Fibre Channel
  C. LLDP
  D. FCIP
  A. FCoE

• Question 119:

  You are troubleshooting node discovery issues by using the acidiag fnvread command. Which description of the node status when the CLI output showns a status of Discovering is true?

  A. The node is decommissioned.
  B. The node ID is configured, but not discovered yet.
  C. The node is discovered, but an IP address is not assigned yet.
  D. The node is discovered, but the node ID policy is not configured yet.
  C. The node is discovered, but an IP address is not assigned yet.

  ---

  Reference: http://aci-troubleshooting-book.readthedocs.io/en/latest/fabric_init.html

• Question 120:

  Which type of Embedded Event Manager component pairs events with one or more actions to troubleshoot or recover from the event?

  A. monitor
  B. action
  C. policy
  D. event
  C. policy

  ---

  Reference: http://www-testaka.cisco.com/c/en/us/td/docs/switches/datacenter/nexus3000/sw/system_mgmt/7_x/b_Cisco_Nexus_3000_Series_NX-OS_System_Management_Configuration_Guide_7x/b_Cisco_Nexus_3000_Series_NXOS_System_Management_Configuration_Guide_7x_chapter_01010.pdf
