Cisco 300-170 Online Practice Questions and Exam Preparation

300-170 Exam Details

  • Exam Code
    :300-170
  • Exam Name
    :Implementing Cisco Data Center Virtualization and Automation
  • Certification
    :Cisco Certifications
  • Vendor
    :Cisco
  • Total Questions
    :154 Q&As
  • Last Updated
    :Dec 15, 2021

Cisco 300-170 Online Questions & Answers

  • Question 101:

    Which description of the Visore tool is true?

    A. It reports the current managed object in the bottom left hand corner of the GUI window.
    B. It is a tool within UCS Director that allows the user to view the end point database.
    C. It is an object store browser that exists on the APIC which can directly query the managed objects.
    D. It is a tool used to report API calls that are made by the GUI to the APIC.

  • Question 102:

    When configuring port profiles on a Cisco 5000 Series switch, which two statements are true?

    A. If a conflict occurs, commands that you enter under the interface mode take precedence over port profile commands.
    B. If a conflict occurs when a range of interfaces inherits a second port profile, the commands of the second port profile override the commands of the initial port profile.
    C. If a conflict occurs when a range of interfaces inherits a second port profile, the commands of the initial port profile override the commands of the second port profile
    D. If a conflict occurs, port profile commands take precedence over commands that you enter under the interface mode.
    E. When an interface has a port profile applied to it, no other conflicting configuration can be applied to that interface.

  • Question 103:

    Which feature allows firewall ACLs to be configured automatically when new endpoints are attached to an EPG?

    A. ARP Gleaning
    B. Network-stitching
    C. Hardware Proxy
    D. Dynamic endpoint attach

  • Question 104:

    A unicast packet enters into the front panel port of a leaf switch. The leaf switch performs a forwarding lookup for the packet destination IP address and has a miss result. Assuming default configuration, which statement about what happens next is true?

    A. The packet is sent to the forwarding proxy in the spine switch.
    B. The packet is dropped on the leaf switch.
    C. The packet is sent to another leaf switch within the same bridge domain.
    D. The packet is flooded across the entire fabric because it is an unknown unicast.

  • Question 105:

    You have a network that has three subnets. You migrate the network to a Cisco ACI fabric. You want to bridge the three subnets without changing the IP addresses of the endpoints. The default gateway for the endpoints does not sit on the ACI fabric. Which action must you take to keep the three subnets in a single flood domain?

    A. Create multiple bridge domains that have unicast routing disabled within the same EPG. Connect the existing subnets to the bridge domains.
    B. Create one bridge domain that has unicast routing disabled and connect the existing subnets to the bridge domain.
    C. Create one bridge domain that has unicast routing enabled and create corresponding subnets inside the bridge domain. Connect the existing network to the bridge domain.
    D. Create multiple bridge domains that have unicast routing enabled within the same EPG. Create corresponding subnets inside the bridge domains and connect the existing network to the bridge domains.

  • Question 106:

    What occurs when you make an interface a member of an existing VRF in Cisco NX-OS?

    A. The VRF-Aware services start to be filtered.
    B. You are prompted to enter an IP address assignment.
    C. All of the Layer 3 configurations are removed.
    D. The state of the interface is changed to down.

  • Question 107:

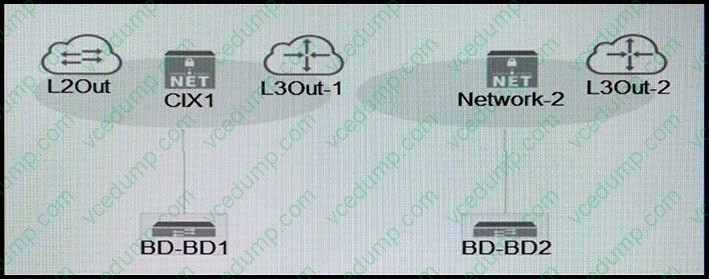

    Refer to the exhibit.

    For which option is the L3OUT-1 connection used?

    A. bridge domain BD2
    B. private network CIX1
    C. private network Network-2
    D. bridge domain BD1

  • Question 108:

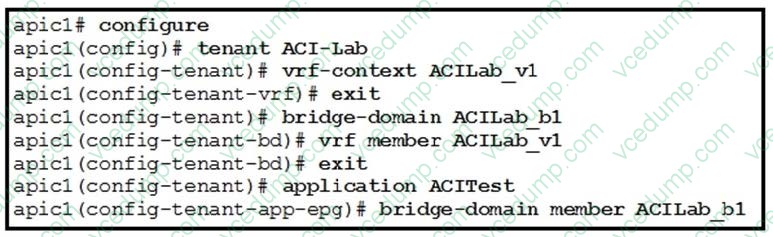

    Refer to the exhibit. Which component must you create to deploy the application profile?

    A. domain
    B. global policy
    C. EPG
    D. private network

  • Question 109:

    Which two benefits come from using a Cisco Nexus 7000 Series Switch in VDC mode? (Choose two.)

    A. per-VDC kernel resource allocation
    B. per-VDC administration
    C. per-VDC load balancing for Cisco EtherChannel
    D. per-VDC forwarding information base
    E. per-VDC fault isolation

  • Question 110:

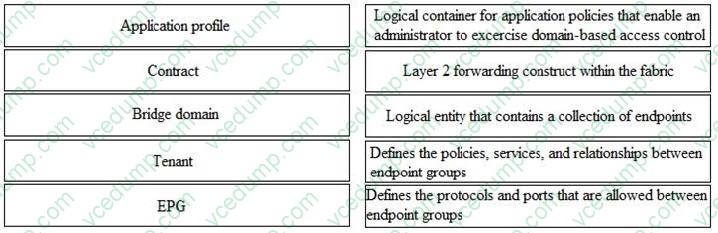

    DRAG DROP

    Drag and drop each Cisco ACI policy model component on the left to the correct description on the right.

    Select and Place:
