Cisco 300-160 Online Practice Questions and Exam Preparation

Cisco 300-160 Online Questions & Answers

• Question 411:

  Which three options are critical benefits of deploying Cisco FabricPath architecture? (Choose three.)

  A. Layer 2 scalability
  B. conversational learning
  C. improved spanning-tree performance
  D. equal-cost multipath forwarding
  E. flexible hardware support
  F. broadcast storm suppression
  A. Layer 2 scalability
  B. conversational learning
  D. equal-cost multipath forwarding

• Question 412:



  What prefix in the IPv6 address does the Interface ID begin?

  A. /32
  B. /48
  C. /64
  D. /96
  C. /64

• Question 413:

  Which two options are advantages when using NPIV? (Choose two.)

  A. allows a single physical N-Port to have single WWPNs, and therefore single N-Port IDs, associated with it
  B. NPIV-enabled physical N-Port can subsequently issue additional commands to register more WWPNs and receive more N-Port IDs (one for each WWPN).
  C. allows a 'single' physical N-Port to have multiple WWPNs, and therefore multiple N-Port IDs, associated with it
  D. NPV-enabled physical N-Port can subsequently issue additional commands to register more WWPNs and receive more N-Port IDs (one for each WWPN).
  E. allows 'multiple' single physical N-Port to have multiple WWPNs, and therefore multiple N-Port IDs, associated with it
  F. N-Port on the physical host would have only a single WWPN (and N-Port ID).
  B. NPIV-enabled physical N-Port can subsequently issue additional commands to register more WWPNs and receive more N-Port IDs (one for each WWPN).
  C. allows a 'single' physical N-Port to have multiple WWPNs, and therefore multiple N-Port IDs, associated with it

• Question 414:

  You deploy a new Cisco UCS system and use switching mode for storage communication. Which type of port should you configure as the interconnect to the SAN network?

  A. FCoE storage
  B. appliance
  C. server
  D. uplink
  E. FCoE uplink
  E. FCoE uplink

• Question 415:

  Which three options are features of a Cisco Nexus 7700 Switch? (Choose three.)

  A. Total number of slots are 4, 9, 10, and 18.
  B. Maximum switching capacity is up to 83 Tbps.
  C. They support redundant supervisors.
  D. Bandwidth per slot is 1.3 Tbps.
  E. Minimum switching capacity is 1 Tbps.
  F. Bandwidth per slot is 1.3 Gbps.
  G. Maximum switching capacity is up to 83 Gbps.
  B. Maximum switching capacity is up to 83 Tbps.
  C. They support redundant supervisors.
  D. Bandwidth per slot is 1.3 Tbps.

• Question 416:

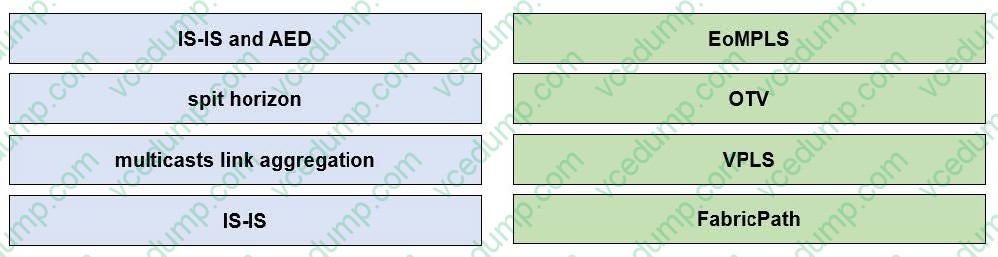

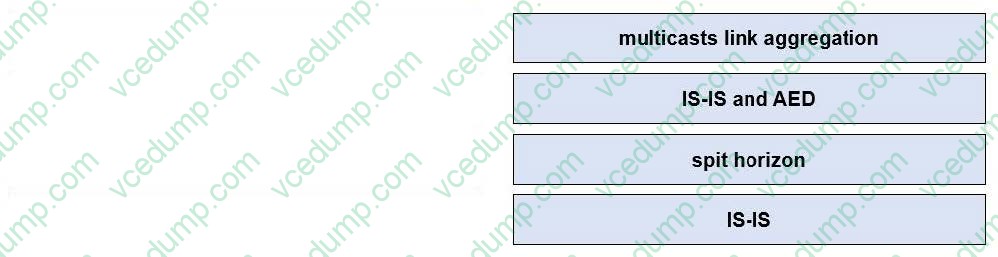

  DRAG DROP

  Designing data center interconnects requires the understanding of the loop avoidance mechanisms. Drag and drop the loop avoidance mechanisms on the left to the technologies that utilize them on the right.

  Select and Place:





• Question 417:

  You are evaluating the use of a VMware virtual switch or a Cisco Nexus 1000V Series distributed virtual switch. Which two options describe benefits of using the Cisco Nexus 1000V Series distributed virtual switch? (Choose two.)

  A. provides unified network management and operations
  B. allows policies to be applied to individual virtual machines
  C. lowers the power consumption of the Cisco UCS servers
  D. reduces the deployment time of the virtual machine
  E. provides a graphical interface to configure virtual machine policies
  A. provides unified network management and operations
  B. allows policies to be applied to individual virtual machines

• Question 418:

  Which three control plane operations are used by vPC? (Choose three.)

  A. ARP cache
  B. MAC address learning
  C. CGMP snooping
  D. LACP
  E. BPDUs
  A. ARP cache
  B. MAC address learning
  E. BPDUs

• Question 419:

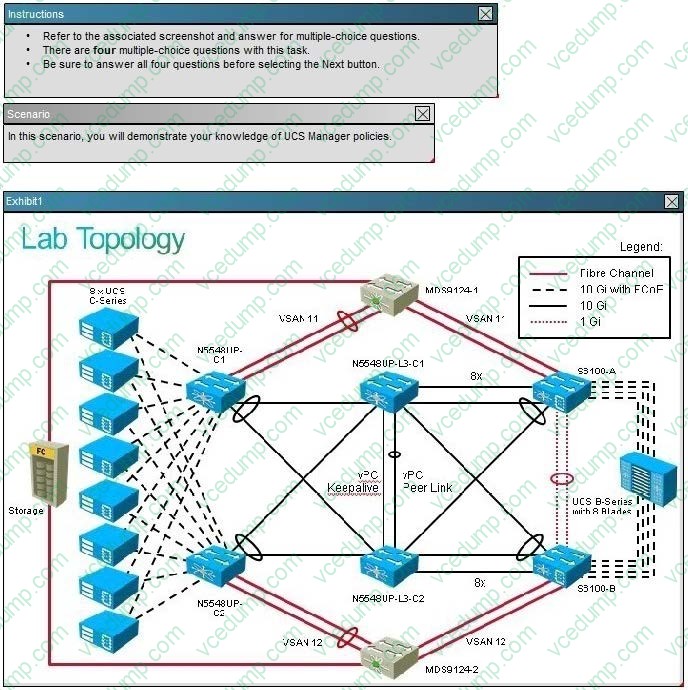

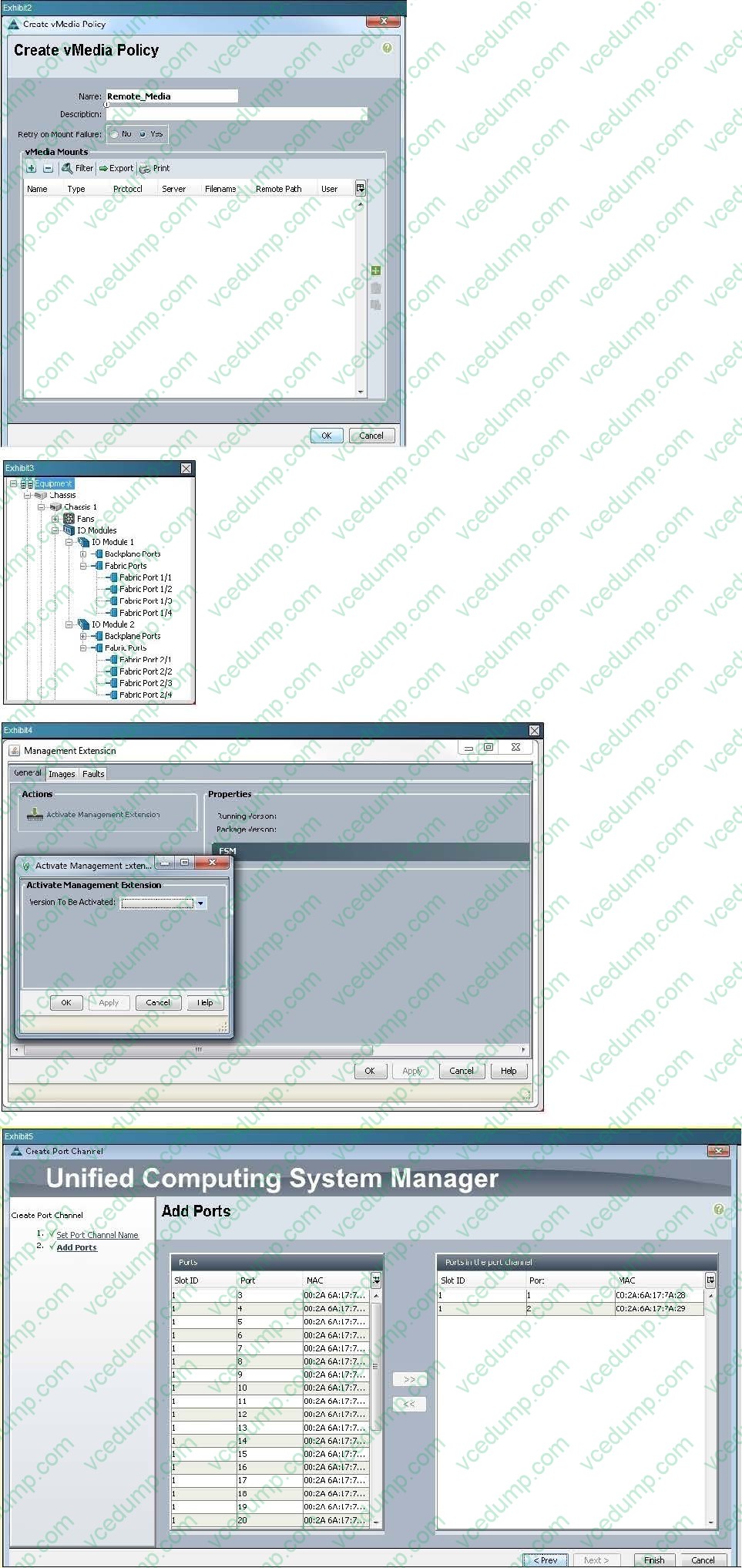

  Refer to the screenshot in Exhibit 5. There are two interfaces in Port Channel. Assuming you are creating this Port Channel on a Cisco UCS 6248, how many additional interfaces can be added to the Port Channel?

  B. 6
  C. 8
  D. 14
  E. 18
  B. 6

• Question 420:

  Which access layer technology will provide redundancy if there is a link failure on a server link?

  A. VDC
  B. MPLS
  C. vPC
  D. Cisco OTV
  C. vPC
