Cisco 300-160 Online Practice Questions and Exam Preparation

Cisco 300-160 Online Questions & Answers

• Question 171:

  Which three options are differences between vPC and VSS from an operational point of view? (Choose three.)

  A. With vPC, the two switches operate as a single device.
  B. With vPC, the two switches operate as individual devices.
  C. With VSS, the two switches operate as individual devices.
  D. With VSS, the two switches operate as a single device.
  E. VSS eliminates the need to implement a FHRP.
  F. vPC eliminates the need to implement a FHRP.
  G. With vPC, the peer keep-alive link also carries user traffic.
  H. With VSS, heartbeat links also carries user traffic.
  B. With vPC, the two switches operate as individual devices.
  D. With VSS, the two switches operate as a single device.
  E. VSS eliminates the need to implement a FHRP.

• Question 172:

  You must configure resiliency for Fiber Channel uplink ports on Cisco UCS Fabric Interconnects. Which feature should you configure?

  A. A port channels
  B. An appliance ports
  C. vPC
  D. a unified storage ports
  A. A port channels

• Question 173:

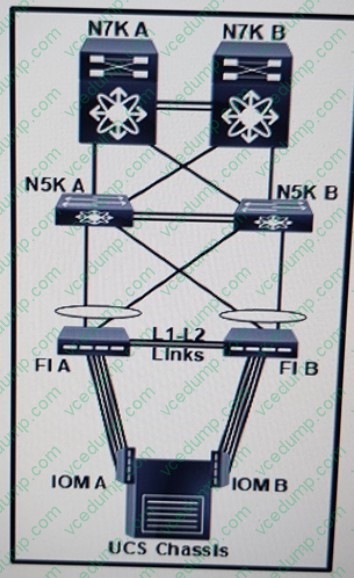

  Refer to the exhibit.



  Which two descriptions of the purpose of the L1-L2 links between FI A and FI B are true? (Choose two)

  A. synchronizes the configuration information
  B. provides a vPC peer link between the fabric interconnects.
  C. allows each fabric interconnect to monitor the status of the other fabric interconnect continuously.
  D. provides an alternate data path if an upstream link fails.
  E. migrates VIFs from FI A to FI B if FI fails.
  A. synchronizes the configuration information
  C. allows each fabric interconnect to monitor the status of the other fabric interconnect continuously.

• Question 174:

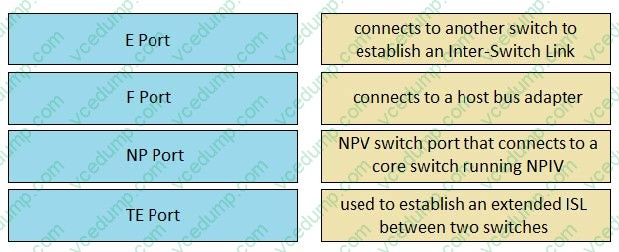

  DRAG DROP

  Drag and drop the Fibre Channel switch port types from the left onto correct descriptions on the right.

  Select and Place:





• Question 175:

  You are designing a Cisco UCS environment that requires RSA SecurID for user authentication. Which authentication method must you include in the design?

  A. a local Cisco UCS user database
  B. LDAP authentication
  C. RADIUS authentication
  D. client certificate authentication
  C. RADIUS authentication

• Question 176:

  Which statement about Cisco UCS power cap groups is true?

  A. Servers within a single Cisco UCS chassis can be part of multiple power cap groups.
  B. Multiple Cisco UCS chassis cannot be part of a single power cap group.
  C. Cisco UCS incorporates power cap information in the service profile that is associated with a server.
  D. Cisco UCS power capping technology can provision power based on theoretical server maximums rather than on actual usage.
  C. Cisco UCS incorporates power cap information in the service profile that is associated with a server.

• Question 177:

  You are designing a Cisco Fabric interconnect blade chassis and stand alone UCS server solution for a large public cloud provider the design includes these items One upstream cisco nexus 7000 series switches that provides LAN and SAN

  connectivity Ten Fabric interconnect switches (five pair in high availability).

  Five fully equipped cisco UCS blade chassis per fabric interconnect switches pair Fifty cisco UCS stand alone servers

  Which statement ae true regarding San connections from the fabric interconnect switches to the upstream cisco nexus 7000 series switch? (choose two)

  A. Fabric interconnect switches must be design in end host mode
  B. The maximum no of domain ids that can be addressed by the fiber channel protocol 355
  C. Cisco UCS blade server and stand server must be connected to the SAN directly
  D. The cisco nexus 7000 switches must deploy NPIV
  E. Fabric interconnect Switch must be design in switch Mode
  A. Fabric interconnect switches must be design in end host mode
  D. The cisco nexus 7000 switches must deploy NPIV

• Question 178:

  You are assessing whether the storage system at a data center meets the needs of a customer. Which three storage system parameters must you assess? (Choose three.)

  A. the storage capacity used by the applications
  B. the number of physical CPU cores installed on the storage systems
  C. the number of input/output operations per second used by the applications
  D. the memory resources used by the storage systems
  E. the SAN bandwidth used by the applications
  F. the CPU speed and utilization of the storage systems
  A. the storage capacity used by the applications
  D. the memory resources used by the storage systems
  F. the CPU speed and utilization of the storage systems

• Question 179:

  You plan to implement Cisco Nexus 7000 Series switches in a data center. Which two factors must be considered for the implementation? (Choose two.)

  A. M-Series modules support FcoE.
  B. In storage VDCs, you can have only storage traffic.
  C. Each F-Series module that runs FCoE requires an FCoE license.
  D. F1-Series and F2-Series modules cannot exist in the same VDC.
  E. F3-Series modules lack support for FEX.
  C. Each F-Series module that runs FCoE requires an FCoE license.
  E. F3-Series modules lack support for FEX.

• Question 180:

  Which two devices are recommended for an MoR design that includes Cisco Unified Fabric? (Choose two.)

  A. Cisco Nexus 5548UP
  B. Cisco Nexus 4004
  C. Cisco Nexus 3064
  D. Cisco Nexus 2232PP
  E. Cisco Nexus 2248T
  A. Cisco Nexus 5548UP
  D. Cisco Nexus 2232PP
