Cisco 300-115 Online Practice Questions and Exam Preparation

300-115 Exam Details

  • Exam Code
    :300-115
  • Exam Name
    :Implementing Cisco IP Switched Networks
  • Certification
    :Cisco Certifications
  • Vendor
    :Cisco
  • Total Questions
    :1076 Q&As
  • Last Updated
    :Dec 10, 2021

Cisco 300-115 Online Questions & Answers

  • Question 781:

    Which command correctly configures standby tracking for group 1 using the default decrement priority value?

    A. standby 1 track 100
    B. standby 1 track 100 decrement 1
    C. standby 1 track 100 decrement 5
    D. standby 1 track 100 decrement 20

  • Question 782:

    Refer to the exhibit. Which two statements about the network environment are true? (Choose two.)

    A. UDLD aggressive mode put the interface into an error-disabled state
    B. After the error is corrected, the udld reset command recovers the disabled ports.
    C. The UDLD mode changed from normal to aggressive when the error was detected.
    D. The interface was error-disabled as the result of STP.
    E. UDLD negotiation failed when the neighbor switch went offline.

  • Question 783:

    Which two limitations of LOCAL SPAN are true ? (Choose Two)

    A. The source and destination ports must reside in the same switch or switch stack
    B. It can monitor only traffic that ingresses or egresses on the source interface or VLAN
    C. A SPAN session can support multiple destination ports only if they are on the same VLAN.
    D. EACH SPAN session supports only one source VLAN or interface.
    E. A switch can support only one local SPAN session at a time.

  • Question 784:

    After implementing VTP, the extended VLANs are not being propagated to other VTP switches. What should be configured for extended VLANs?

    A. VTP does not support extended VLANs and should be manually added to all switches.
    B. Enable VTP version 3, which supports extended VLAN propagation.
    C. VTP authentication is required when using extended VLANs because of their ability to cause network instability.
    D. Ensure that all switches run the same Cisco IOS version. Extended VLANs will not propagate to different IOS versions when extended VLANs are in use.

  • Question 785:

    How does the Spanning Tree Protocol determine path cost?

    A. interface hop count
    B. interface reliability
    C. interface bandwidth
    D. interface load
    E. interface delay

  • Question 786:

    Refer to the exhibit.

    An engineer is configuring EtherChannel between two switches and notices the console message on switch 2. Based on the output, which option describes the reason for this error?

    A. Switch 1 does not have enough member ports configured.
    B. Switch 2 has too many member ports configured
    C. The port channel interface numbers do not match.
    D. The EtherChannel protocols do not match.

  • Question 787:

    Which two statements about Cisco StackWise are true? (Choose two.)

    A. It supports multiple switches in a stack.
    B. It supports both homogeneous and mixed stacks.
    C. The LAN base feature set is supported on mixed stacks.
    D. Each stack identifier (or identifies) a stack master and a backup stack master.
    E. Stacks running the LAN base feature set support Layer 3 features.

  • Question 788:

    Which command displays the current SDM template?

    A. show sdm prefer routing
    B. show sdm prefer layer 2
    C. show sdm prefer
    D. show sdm prefer default

  • Question 789:

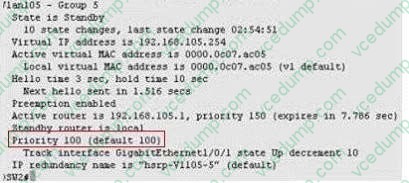

    HSRP Ferris Plastics, Inc. is a medium sized company, with an enterprise network (access, distribution and core switches) that provides LAN connectivity from user PCs to corporate servers. The distribution switches are configured to use HSRPto provide a high availability solution.

    -DSW1 -primary device for VLAN 101 VLAN 102 andVLAN 105

    -DSW2 - primary device for VLAN 103 and VLAN 104

    - A failure of GigabitEthemet1/0/1 on primary device should cause the primary device to release its status as the primary device, unless GigabitEthernet1/0/1 on backup device has also failed. Troubleshooting has identified several issues. Currently all interfaces are up. Using the running configurations and show commands, you have been asked to investigate and respond to the following question.

    What is the priority value of the VLAN 105 HSRP group on DSW2?

    A. 50
    B. 100
    C. 150
    D. 200

  • Question 790:

    When port security is configured on a switch, which violation mode is the default ?

    A. log
    B. shutdown
    C. no change
    D. error-disable
