Cisco 300-115 Online Practice Questions and Exam Preparation

Cisco 300-115 Online Questions & Answers

• Question 711:

  Which three HSRP exchange states are used in multicast messages? (Choose three.)

  A. err-disabled
  B. coup
  C. inherit
  D. hold
  E. hello
  F. resign
  B. coup
  E. hello
  F. resign

• Question 712:

  During the implementation of a voice solution, which two required items are configured at an access layer switch that will be connected to an IP phone to provide VoIP communication? (Choose two.)

  A. allowed codecs
  B. untagged VLAN
  C. auxiliary VLAN
  D. Cisco Unified Communications Manager IP address
  E. RSTP
  B. untagged VLAN
  C. auxiliary VLAN

• Question 713:

  In which two ways are IEEE STP BPDUs forwarded if VLAN 99 is configured as native? (Choose two )

  A. VLAN 1 STP BPDUs are sent tagged on VLAN 1
  B. VLAN 1 STP BPDUs are sent tagged on VLAN 99
  C. VLAN 1 and VLAN 99 BPDUs are sent tagged on VLAN 1
  D. VLAN 1 STP BPDUs are sent untagged on VLAN 1
  E. VLAN 1 STP BPDUs are sent untagged on VLAN 99
  D. VLAN 1 STP BPDUs are sent untagged on VLAN 1
  E. VLAN 1 STP BPDUs are sent untagged on VLAN 99

• Question 714:

  How many active virtual gateways can each GLBP group support?

  A. 1
  B. 2
  C. 4
  D. 16
  A. 1

• Question 715:

  An engineer is configuring an etherchannel between two switches, he notices the error message on Switch 2 (error message channel-missconfiguring error), based on the output what is the problem

  A. the etherchannel on the switch 1 using incorrect member port
  B. the etherchannel interface of switch 1 is not configured
  C. the etherchannel protocol on switch 1 is not correct
  D. the etherchannel interface of switch 2 is not configured
  C. the etherchannel protocol on switch 1 is not correct

• Question 716:

  When two MST instances (MST 1 and MST 2) are created on a switch, what is the total number of spanning-tree instances running on the switch?

  A. 1
  B. 2
  C. 3
  D. 4
  C. 3

  ---

  Unlike other spanning tree protocols, in which all the spanning tree instances are independent, MST establishes and maintains IST, CIST, and CST spanning trees:

  An IST is the spanning tree that runs in an MST region.

  Within each MST region, MST maintains multiple spanning tree instances. Instance 0 is a special instance for a region, known as the IST. All other MST instances are numbered from 1 to 4094. In the case for this question, there will be the 2

  defined MST instances, and the special 0 instance, for a total of 3 instances. The IST is the only spanning tree instance that sends and receives BPDUs. All of the other span- ning tree instance information is contained in MSTP records (M-

  records), which are encapsu- lated within MST BPDUs. Because the MST BPDU carries information for all instances, the number of BPDUs that need to be processed to support multiple spanning tree instances is signifi- cantly reduced. All

  MST instances within the same region share the same protocol timers, but each MST in- stance has its own topology parameters, such as root bridge ID, root path cost, and so forth. By default, all VLANs are assigned to the IST. An MST

  instance is local to the region; for example, MST instance 1 in region A is independent of MST instance 1 in region B, even if regions A and B are interconnected.

  A CIST is a collection of the ISTs in each MST region.

  The CST interconnects the MST regions and single spanning trees.

  Reference: http://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst6500/ios/12- 2SX/configuration/ guide/book/spantree.html

• Question 717:

  When SDM templates are configured, which action must be performed for the configuration to take effect?

  A. reload
  B. shutdown
  C. write memory
  D. backup config
  A. reload

• Question 718:

  Which device type can act as a client in a system that uses TACACS+?

  A. router
  B. ADserver
  C. end user wireless device
  D. end user workstation
  B. ADserver

• Question 719:

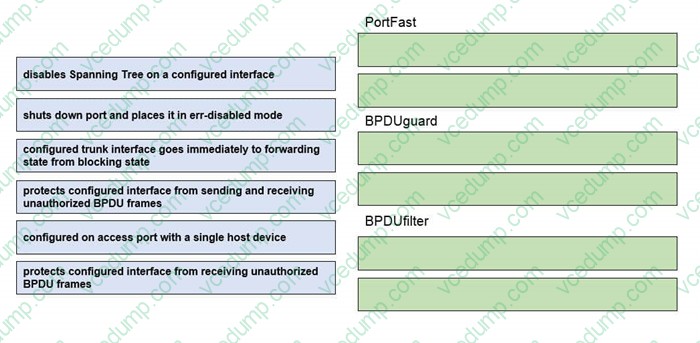

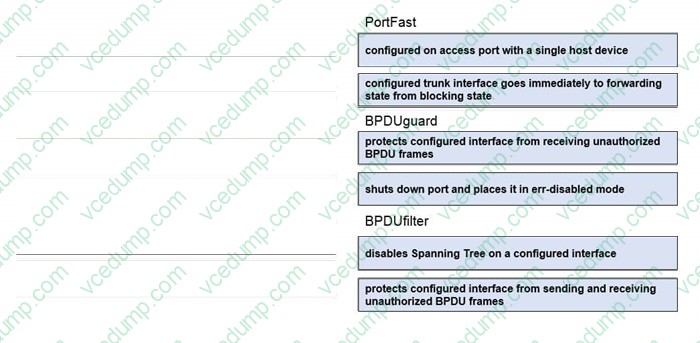

  Drag and Drop

  Select and Place:





• Question 720:

  Which two statements about VRRP are true? (Choose two.)

  A. Preemption is not supported.
  B. It support clear text authentication only.
  C. It uses a shared VIP to support default gateway redundancy.
  D. It requires each device in the group to participate in the same dynamic routing protocol.
  E. It can use a single virtual address to provide default gateways redundancy.
  D. It requires each device in the group to participate in the same dynamic routing protocol.
  E. It can use a single virtual address to provide default gateways redundancy.
