Cisco 300-115 Online Questions & Answers

• Question 681:

  Core switch is connected to 2 distribution switches which are connected to 2 access switches. PC1 is connected to DSW1 and DSW2 root bridge. Link connected from PC1 to DSW2 is 4Gbps and DSW1 is 10gbps. There is an EtherChannel trunk between DSW1 and DSW2. Default port priority is configured. Change in port priority so traffic goes through DSW1 to DSW2. (Choose two.)

  A. DSW1: spanning-tree port priority 16**
  B. DSW1: interface g1/0
  C. DSW2: spanning-tree port priority 16
  D. DSW2: interface g1/0
  E. DSW1: spanning-tree port priority 0
  A. DSW1: spanning-tree port priority 16**
  B. DSW1: interface g1/0

• Question 682:

  Which two commands configure RSPAN to capture incoming and outgoing traffic on a single interface'? (Choose two)

  A. monitor session 1 source interface gigabitethernetl/0/2 tx
  B. monitor session 1 destination remote vlan 910
  C. monitor session 1 source interface gigabitethernetl/0/1 rx
  D. monitor session 1 destination interface gigabitethernetl/0/2 rx
  E. monitor session 1 source interface gigabitethernet1/0/2 both
  B. monitor session 1 destination remote vlan 910
  E. monitor session 1 source interface gigabitethernet1/0/2 both

• Question 683:

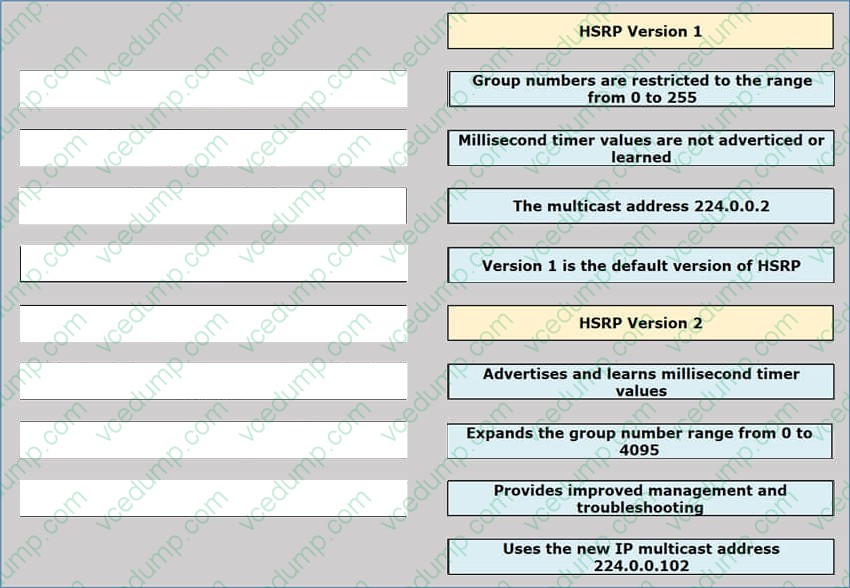

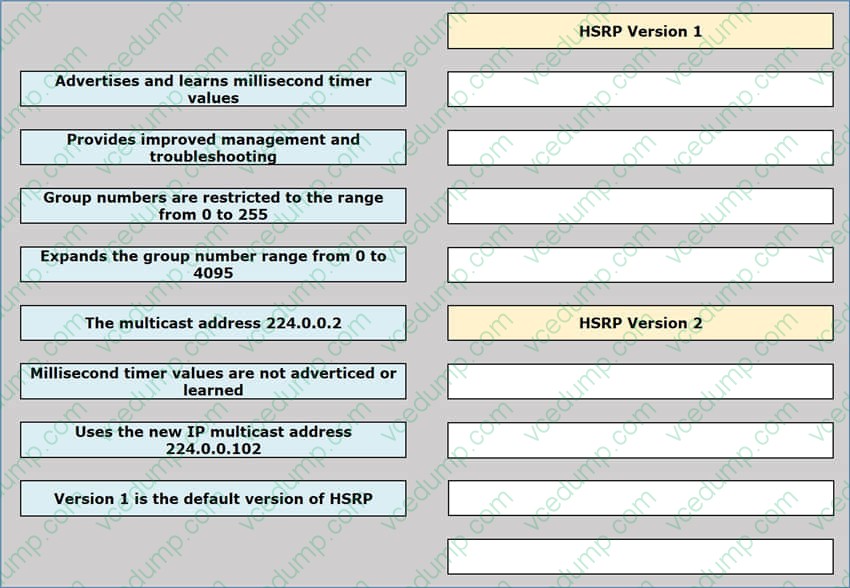

  Drag and Drop

  Select and Place:





• Question 684:

  Refer to the exhibit. Three switches are configured for HSRP. Switch1 remains in the HSRP listen state. What is the most likely cause of this status?

  A. this is normal operation
  B. standby group number does not match VLAN number
  C. IP addressing is incorrect
  D. incorrect priority commands
  E. incorrect standby timers
  A. this is normal operation

• Question 685:

  Which two new features are included in VTPv3? (Choose two.)

  A. VTPs can now be configured in off mode.
  B. It can be configured to prevent the override of the VLAN database.
  C. VTP now supports MD5 passwords.
  D. VLANs configured for token ring are now eligible to participate in VTP.
  E. VLANs in the extended range are now eligible to participate in VTP.
  A. VTPs can now be configured in off mode.
  C. VTP now supports MD5 passwords.

  ---

  http://brbccie.blogspot.com/2014/07/vtp-v3.html

  Supports extended VLANs (1006 - 4094)

  VTP can now be turned off completely, as opposed to just transparent mode Fixes the bane of VTP v1/2, the accidental-high-configuration-revision-wipes-out-your- network issue, by design it does this no configuration is necessary.

• Question 686:

  Which command do you enter to enable Dynamic ARP Inspection for VLAN 15?

  A. SW1(config-vlan)# ip arp inspection vlan 15
  B. SW1(config-vlan)# ip arp inspection trust
  C. SW1(config-if)# ip arp-inspection trust
  D. SW1(config)# ip arp inspection vlan 15
  D. SW1(config)# ip arp inspection vlan 15

• Question 687:

  A question related to Cisco StackWise Virtual.

  A. single control and management plane
  B. distributed data plane
  C. www.certbus.com
  D. www.certbus.com
  A. single control and management plane

• Question 688:

  A question about VLAN STP BPDU, when in trunk native VLAN is 99

  A. VLAN 1 STP BPDU tagged through VLAN 1
  B. VLAN 1 STP BPDU untagged through VLAN 1
  C. VLAN 1 STP BPDU tagged through VLAN 99
  D. VLAN 1 STP BPDU untagged through VLAN 99
  E. VLAN 1 STP BPDU tagged through VLAN 1 and 99
  F. VLAN 1 STP BPDU untagged through VLAN 1 and 99
  A. VLAN 1 STP BPDU tagged through VLAN 1
  D. VLAN 1 STP BPDU untagged through VLAN 99

• Question 689:

  Which statement describes what happens if all VSL connections between the virtual switch members are lost?

  A. Both virtual switch members cease to forward traffic.
  B. The VSS transitions to the dual active recovery mode, and both virtual switch members continue to forward traffic independently.
  C. The virtual switch members reload.
  D. The VSS transitions to the dual active recovery mode, and only the new active virtual switch continues to forward traffic.
  D. The VSS transitions to the dual active recovery mode, and only the new active virtual switch continues to forward traffic.

  ---

  Q. What happens if all VSL connections between the virtual switch members are lost? A. VSLs can be configured with up to eight links between the two switches across any combination of line cards or supervisor ports to provide a high level of redundancy. If for some rare reason all VSL connections are lost between the virtual switch members leaving both the virtual switch members up, the VSS will transition to the dual active recovery mode. The dual active state is detected rapidly (subsecond) by any of the following three methods: Enhancement to PAgP used in MEC with connecting Cisco switches L3 Bidirectional Forwarding Detection (BFD) configuration on a directly connected link (besides VSL) between virtual switch members or through an L2 link through an access layer switch L2 Fast-Hello Dual-Active Detection configuration on a directly connected link (besides VSL) between virtual switch members (supported with 12.2(33)SXI) In the dual active recovery mode, all interfaces except the VSL interfaces are in an operationally shut down state in the formerly active virtual switch member. The new active virtual switch continues to forward traffic on all links. Reference: http://www.cisco.com/en/US/prod/collateral/switches/ps5718/ ps9336/ prod_qas0900aecd806ed74 b.html

• Question 690:

  A question about configuring spanning-tree port-priority based on a diagram.

  A. (config)# spanning-tree port-priority 127
  B. config-if)# spanning-tree port-priority 127
  C. config)# spanning-tree port-priority 129
  D. config-if)# spanning-tree port-priority 129
  B. config-if)# spanning-tree port-priority 127
