Cisco 300-115 Online Practice Questions and Exam Preparation

Cisco 300-115 Online Questions & Answers

• Question 571:

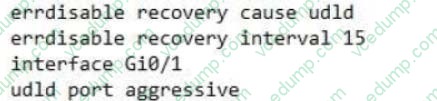

  A switch has a pair of fiber and it has been damaged. Which two statements is true about the configuration below? (Choose two.)



  A. It would prevent loops.
  B. It would be in shutdown mode until fiber is replaced.
  C. It would be up for 15 minutes after fiber is fixed.
  D. The port would try to actively repair the damaged fiber after 15 seconds.
  A. It would prevent loops.
  D. The port would try to actively repair the damaged fiber after 15 seconds.

• Question 572:

  What statements about STP path cost are true? (Choose two.)

  A. Long path cost is 64 bits
  B. Short path cost is 32 bits
  C. MST uses long path cost
  D. Default path cost is short
  C. MST uses long path cost
  D. Default path cost is short

• Question 573:

  If EtherChannel guard is configured on a device, which result happens when the device detects a misconfiguration on a connected device?

  A. Spanning tree is disabled for the VLANs associated with the EtherChannel.
  B. The port generates a syslog message.
  C. The EtherChannel configuration is removed from the running configuration of the device.
  D. The port is error disabled.
  D. The port is error disabled.

• Question 574:

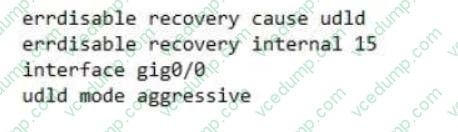

  Refer to the exhibit.



  One pair of fibre that is connected to Gi0/1 has been damaged. What is likely to happen?

  A. The interface is shut down until the fiber pair is replaced
  B. The interface is prevented from causing spanning-tree loops.
  C. After the fiber pair is replaced, the interface recovers within 15 minutes.
  D. The interfaces actively tries to fix the damaged fiber link.
  B. The interface is prevented from causing spanning-tree loops.

• Question 575:

  uestion about configuring VLAN 10 root bridge with spanning-tree switch priority.

  A. spanning-tree vlan 10 root primary
  B. spanning-tree vlan 10 priority 4096
  A. spanning-tree vlan 10 root primary
  B. spanning-tree vlan 10 priority 4096

• Question 576:

  When you connect an internal switch to an upstream provider switch, which feature is most appropriate to implement to avoid potential broadcast storms?

  A. BPDU ignore
  B. BPDU guard
  C. BPDU filter
  D. loop guard
  E. flex links
  B. BPDU guard

• Question 577:

  Lab Simulation - MLS and EIGRP

  You have been tasked with configuring multilayer SwitchC, which has a partial configuration and has been attached to RouterC as shown in the topology diagram.

  You need to configure SwitchC so that Hosts H1 and H2 can successfully ping the server S1.

  Also SwitchC needs to be able to ping server S1.Due to administrative restrictions and requirements you should not add/delete vlans or createtrunk links. Company policies forbid the use of static or default routing. All routes must be learned

  via EIGRP 650 routing protocol.

  You do not have access to RouteC. RouterC is correctly configured. No trunking has been configured on RouterC. Routed interfaces should use the lowest host on a subnet when possible. The following subnets are available to implement this

  solution:

  A. Check the answer below

  A. Check the answer below

  ---

  In real life, there are two ways to configure interVLAN routing in this case:

  + Use RouterC as a "router on a stick" and SwitchC as a pure Layer2 switch. Trunking must be established between RouterC and SwitchC. + Only use SwitchC for interVLAN routing without using RouterC, SwitchC should be configured as a Layer 3 switch (which supports ip routing function as a router). No trunking requires.

  The question clearly states "No trunking has been configured on RouterC" so RouterC does not contribute to interVLAN routing of hosts H1 and H2 -> SwitchC must be configured as a Layer 3 switch with SVIs for interVLAN routing.

  We should check the default gateways on H1 and H2. Click on H1 and H2 and type the "ipconfig" command to get their default gateways.

  C:\>ipconfig

  We will get the default gateways as follows:

  Host1:

  +

  Default gateway: 190.200.250.33 Host2:

  +

  Default gateway: 190.200.250.65

  mls>enable mls# configure terminal mls(config)# int gi0/1 mls(config-if)#no switchport mls(config-if)# ip address 10.10.10.2 255.255.255.0 mls(config-if)# no shutdown mls(config-if)# exit mls(config)# int vlan 2 mls(config-if)# ip address 190.200.250.33 255.255.255.224 mls(config-if)# no shutdown mls(config-if)# int vlan 3 mls(config-if)# ip address 190.200.250.65 255.255.255.224 mls(config-if)# no shutdown mls(config-if)#exit mls(config)# ip routing mls(config)# router eigrp 650 mls(config-router)# network 10.10.10.0 0.0.0.255 mls(config-router)# network 190.200.250.32 0.0.0.31 mls(config-router)# network 190.200.250.64 0.0.0.31 mls(config-router)# no auto-summary mls(config-router)# end mls# copy run start

• Question 578:

  Refer to the exhibit. Which statement about the current configuration on port GigabitEthernet2/0/1 is true?



  A. It is an access port configured for a phone and a PC
  B. It is a trunk port and the native VLAN is VLAN1
  C. It is a trunk port and the native VLAN is VLAN 700
  D. It is an access port in VLAN 700
  B. It is a trunk port and the native VLAN is VLAN1

• Question 579:

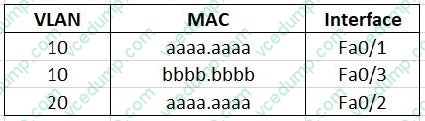

  A question related to a MAC address output. (Choose two.)



  A. Fa0/1 and Fa0/2 are in the same VLAN.
  B. Fa0/1 and Fa0/2 are not in the same VLAN.
  C. Fa0/1 and Fa0/3 can not communicate on the Layer 2 switch.
  D. Fa0/3 and Fa0/2 can communicate on the Layer 2 switch
  E. Fa0/1 and Fa0/2 can not communicate on the Layer 2 switch.
  B. Fa0/1 and Fa0/2 are not in the same VLAN.
  E. Fa0/1 and Fa0/2 can not communicate on the Layer 2 switch.

• Question 580:

  Which command sets the interval at which a device sends LLDP updates to its neighbors?

  A. IIdp holdtime
  B. IIdp timer
  C. IIdp transmit
  D. IIdp tlv-select
  B. IIdp timer
