Cisco 300-115 Online Practice Questions and Exam Preparation

Cisco 300-115 Online Questions & Answers

• Question 21:

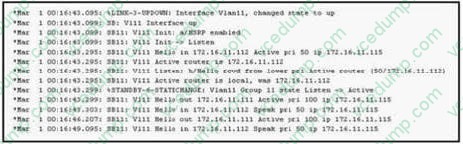

  Refer to the exhibit. Based on the debug output, which three statements about HSRP are true? (Choose Three)



  A. The final active router is the router with IP address 172.16.11.111
  B. The router with IP address 172.16.11.111 has preempt configured
  C. The priority of the router with IP address 172.16.11.112 is preferred over the router with IP address 172.16.11.111
  D. The IP address 172.16.11.115 is the virtual HSRP IP address
  E. The router with IP address 172.16.11.112 has nonpreempt configured
  F. The router with IP address 172.16.11.112 is using default HSRP priority.
  A. The final active router is the router with IP address 172.16.11.111
  B. The router with IP address 172.16.11.111 has preempt configured
  D. The IP address 172.16.11.115 is the virtual HSRP IP address

• Question 22:

  Which two commands configure SPAN to monitor incoming traffic across multiple interfaces? (choose two)

  A. monitor session 3 destination interface gigabitethernet1/0/2
  B. monitor session 1 destination interface gigabitethernet1/0/2
  C. monitor session 3 source vlan 10-20 tx
  D. monitor session 1 source interface gigabitethernet1/0/1
  E. monitor session 3 source vlan 10-20 rx
  A. monitor session 3 destination interface gigabitethernet1/0/2
  E. monitor session 3 source vlan 10-20 rx

• Question 23:

  Which two tasks can be accomplished to configure multiple HSRP client groups? (Choose two.)

  A. Use the standby priority command to configure an HSRP group to become a backup of another HSRP group.
  B. Use the standby follow command to configure an HSRP group to become a slave of another HSRP group.
  C. Use the standby track command to configure an HSRP group to become a primary HSRP group.
  D. Use the standby mac-refresh command to change the refresh interval of the HSRP client group.
  E. Use the standby mac-resurrect command to change the refresh interval of the HSRP client group.
  B. Use the standby follow command to configure an HSRP group to become a slave of another HSRP group.
  D. Use the standby mac-refresh command to change the refresh interval of the HSRP client group.

• Question 24:

  A question with two VRRP routers and there is an IP reachability

  A. When R1 lose route to 10.x.x.x then R2 will take mastership because it will be decrement of 20 the priority of R1 is 110
  B. When R2 lose route to 10.x.x.x then R1 will take mastership because it will be increment of 20 the priority of R2 is 120.
  C. When both R1 and R2 lose route to 10.x.x.x then either R1 or R2 will take mastership because it will be decrement of 10 the priority of R1 is 110.
  D. When R2 lose route to 10.x.x.x then R1 will take mastership because it will be increment of 20 the priority of R1 is 130
  A. When R1 lose route to 10.x.x.x then R2 will take mastership because it will be decrement of 20 the priority of R1 is 110

• Question 25:

  Refer to the exhibit.



  Which login credentials are required when connecting to the console port in this output?

  A. none required
  B. username cisco with password cisco
  C. no username with password linepass
  D. login authentication default
  A. none required

  ---

  Here the console has been configured with the NO_AUTH name, which lists none as the authentication method. None means no authentication, meaning that credentials are not required and all sessions are allowed access immediately.

• Question 26:

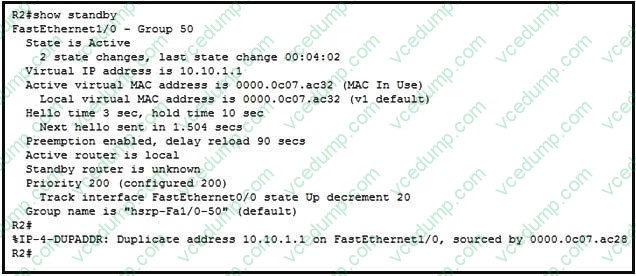

  Refer to the exhibit.



  Which option is the most likely explanation of the duplicate address message logged?

  A. spanning-tree loop
  B. HSRP misconfiguration
  C. a PC with IP of 10.10.1.1
  D. a hardware problem
  B. HSRP misconfiguration

• Question 27:

  Which feature do you implement so that a physical port enters the loop inconsistent state if it fails to receive BPDUs?

  A. loop guard
  B. loop disable
  C. root guard
  D. flex links
  E. BPDU ignore
  F. loop block
  A. loop guard

• Question 28:

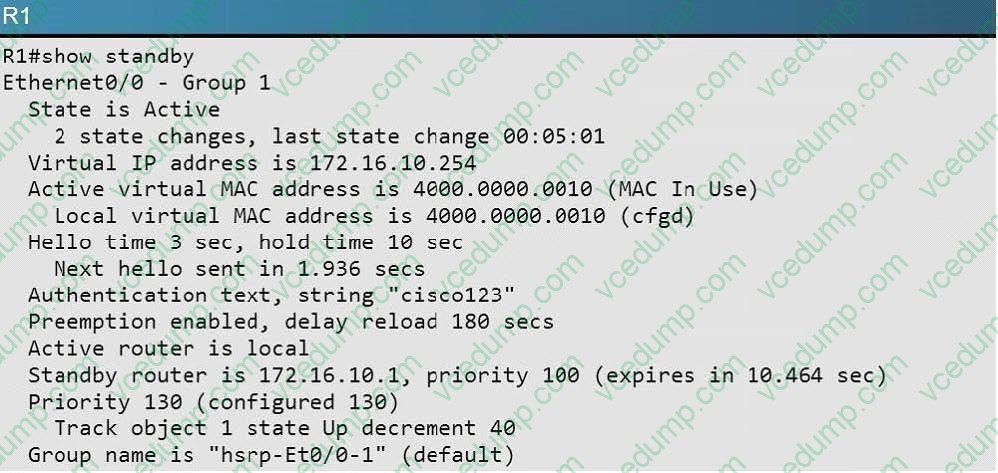

  Your customer has asked you to come in and verify the operation of routers R1 and R2 which are configured to use HSRP. They have questions about how these two devices will perform in the event of a device failure.



  What percentage of the outgoing traffic from the 172.16.10.0/24 subnet is being forwarded through R1?

  A. R1-0%
  B. R1-50 %, R2-50%
  C. R2-100%
  D. R1-100%
  D. R1-100%

  ---

  Based on the following output, we see that R1 is the active standby router for the Ethernet 0/0 link, so all outgoing traffic will be forwarded to R1.



• Question 29:

  When the switches in a Cisco StackWise stack elect a new master switch, which value is used as the primary selector?

  A. Highest administrator-assigned priority
  B. highest MAC address
  C. lowest uptime
  D. lowest MAC address
  A. Highest administrator-assigned priority

• Question 30:

  A question about the difference between HSRP and GLBP.

  A. GLBP supports load balance over multiple routers.
  B. www.certbus.com
  C. www.certbus.com
  D. www.certbus.com
  A. GLBP supports load balance over multiple routers.
