Cisco 300-115 Online Practice Questions and Exam Preparation

Cisco 300-115 Online Questions & Answers

• Question 151:

  which mechanism is specific for RSPAN and not for SPAN?

  A. source port
  B. monitor port
  C. reflector port
  D. redundant port
  E. destination port
  C. reflector port

• Question 152:

  Which two features are new in VTPv3? (Choose two)

  A. extended VLAN support
  B. support for token ring VLANs
  C. using multiple switches in the server role
  D. private VLAN propagation
  E. transparent mode
  A. extended VLAN support
  D. private VLAN propagation

• Question 153:

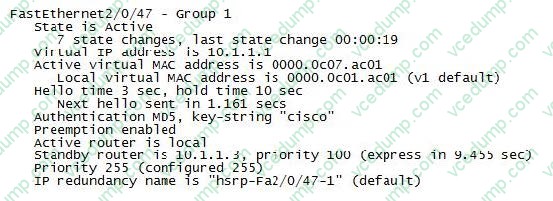

  Refer to the exhibit.



  Which two statements about the network environment of the device that generated this output are true? (Choose two.)

  A. The default hello and hold timer values are in use.
  B. The standby router can take the active HSRP if it fails to receive a hello packet from the active router within 1.616 seconds.
  C. The priority value of the HSRP group is 1.
  D. HSRP version 2 is in use.
  E. The standby router can take the active HSRP role if it fails to receive a hello packet from the active router within 10 seconds.
  A. The default hello and hold timer values are in use.
  E. The standby router can take the active HSRP role if it fails to receive a hello packet from the active router within 10 seconds.

• Question 154:

  Which statement is true about tracking with VRRP?

  A. Track on interface and route
  B. Track only interface
  C. Track only route
  D. Only one track per group
  B. Track only interface

• Question 155:

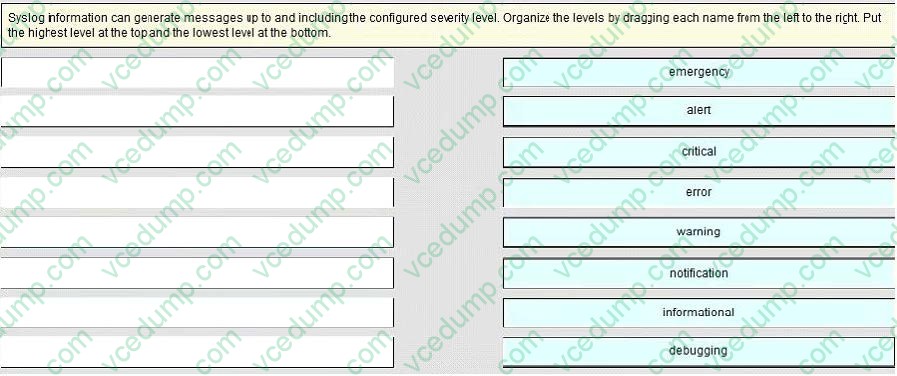

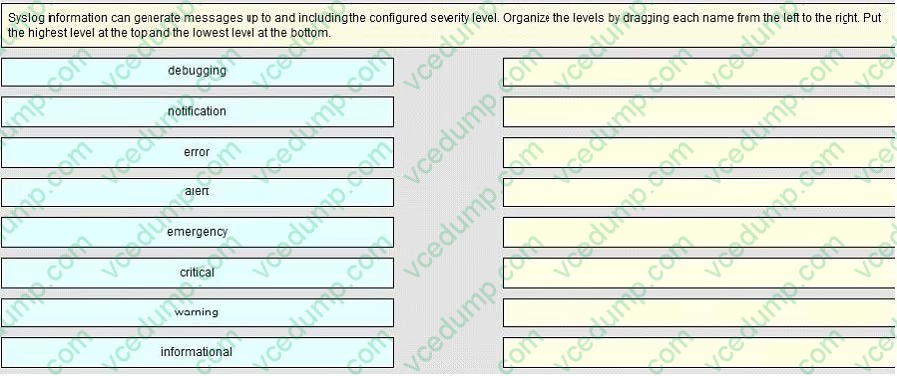

  Drag and Drop

  Select and Place:





• Question 156:

  Technician moves PC from one switch port to another switch port. After the move, the new switch port goes errdisabled. Why?

  A. Security violation
  B. Duplex mismatch
  C. different vlan
  A. Security violation

• Question 157:

  Which option is a benefit of using VSS?

  A. reduces cost
  B. simplifies configuration
  C. provides two independent supervisors with two different control planes
  D. removes the need for a First Hop Redundancy Protocol
  D. removes the need for a First Hop Redundancy Protocol

  ---

  First Hop Redundancy Protocols (FHRPs) such as VRRP and HSRP were designed to allow for a highly available first IP route hop for host systems. FHRPs allow two (or more) distinct routers to share a common IP address providing a redundant Layer-3 default gateway for end nodes. The VSS system creates a single logical router at Layer 3. This VSS routing instance fulfills this first-hop role without the need for a dedicated protocol. The VSS IP route is highly available due to MEC and the resiliency of the VSS system. VSS eliminates the need for FHRP at the aggregation layer of the data center. Reference: http://www.cisco.com/en/US/docs/solutions/Enterprise/Data_Center/vssdc_integrate.html

• Question 158:

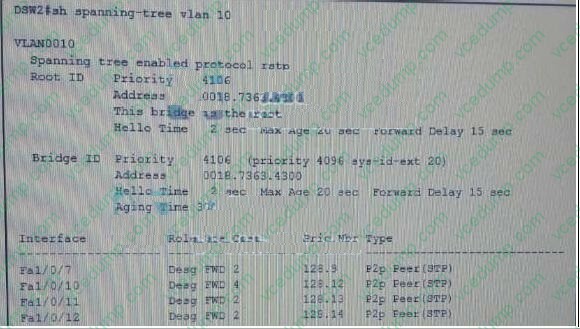

  Refer to the exhibit.Which statement describes the result if a switch that is running PVST+ is added to this network?



  A. Spanning tree is disabled attomatically on the network
  B. Spanning tree contines to operate in Rapid PVST+ on DSW2 and the new switch operates in PVST+
  C. Both switches operate in the PVST+ mode
  D. Both switches operate in the Rapid PVST+ mode
  B. Spanning tree contines to operate in Rapid PVST+ on DSW2 and the new switch operates in PVST+

• Question 159:

  What happens when configuring VLAN on switches running VTP server mode?

  A. Host on the switch without router can communicate with other on the same VLAN.
  B. VLAN created first will be native VLAN.
  C. VLAN created should be propagated on switch on the same domain.
  D. http://certbus.com
  C. VLAN created should be propagated on switch on the same domain.

• Question 160:

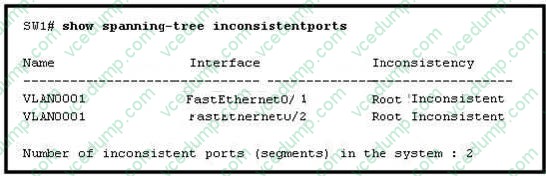

  Refer to the exhibit. On the basis of the output of the show spanning-tree inconsistentports command, which statement about interfaces FastEthernet 0/1 and FastEthernet 0/2 is true?



  A. They have been configured with the spanning-tree bpdufilter disable command.
  B. They have been configured with the spanning-tree bpdufilter enable command.
  C. They have been configured with the spanning-tree bpduguard disable command.
  D. They have been configured with the spanning-tree bpduguard enable command.
  E. They have been configured with the spanning-tree guard loop command.
  F. They have been configured with the spanning-tree guard root command.
  F. They have been configured with the spanning-tree guard root command.
