Cisco 300-075 Online Questions & Answers

• Question 431:

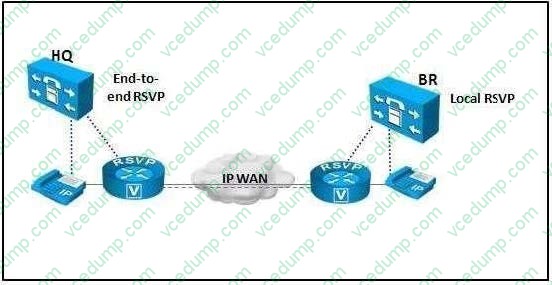

  Refer to the exhibit.



  The Cisco Unified Communications Manager at HQ has been configured for end-to-end RSVP. The Cisco Unified Communications Manager at BR has been configured for local RSVP. RSVP between the locations assigned to the IP phones and SIP trunks at each site are configured with mandatory RSVP. When a call is placed from the IP phone at the BR site to the IP phone at the HQ site, which statement is true?

  A. The Cisco Unified Communications Manager at BR will fall back to local RSVP and place the call. No RSVP end-to-end will occur.
  B. RSVP end-to-end will occur.
  C. The Cisco Unified Communications Manager at BR will use local RSVP. The HQ Cisco Unified Communications Manager will use end-to-end RSVP.
  D. The call will fail.
  E. The call will proceed as a normal call with no RSVP reservation.
  A. The Cisco Unified Communications Manager at BR will fall back to local RSVP and place the call. No RSVP end-to-end will occur.

• Question 432:

  Which two Cisco Unified Communications Manager gateway types require manual dial-peer configuration to enable PSTN call routing? (Choose two.)

  A. MGCP
  B. H.323
  C. SCCP
  D. SIP
  E. VG224
  A. MGCP
  B. H.323

• Question 433:

  Which device is used to connect to the H.323 gatekeeper?

  A. H.323 gateway
  B. SIP trunk
  C. H.323 trunk
  D. MGCP gateway
  C. H.323 trunk

• Question 434:

  You need to verify if the Media Gateway Control Protocol gateway is enabled and active. Which command should you use for this purpose?

  A. show running-config
  B. show fallback-mgcp
  C. show gateway
  D. show ccm-manager fallback-mgcp
  E. show running-config gateway
  F. show fallback-mgcp ccm-manager
  D. show ccm-manager fallback-mgcp

• Question 435:

  Scenario:

  There are two call control systems in this item.

  The Cisco UCM is controlling the DX650, the Cisco Jabber for Windows Client, and the 9971 Video IP Phone.

  The Cisco VCS is controlling the SX20, the Cisco TelePresence MCU, and the Cisco Jabber TelePresence for Windows.

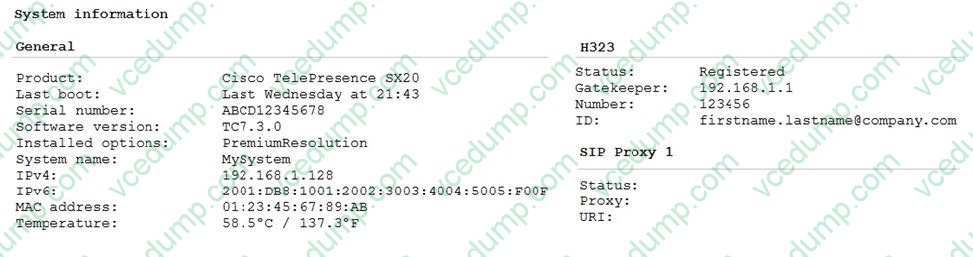

  SX20 System information:

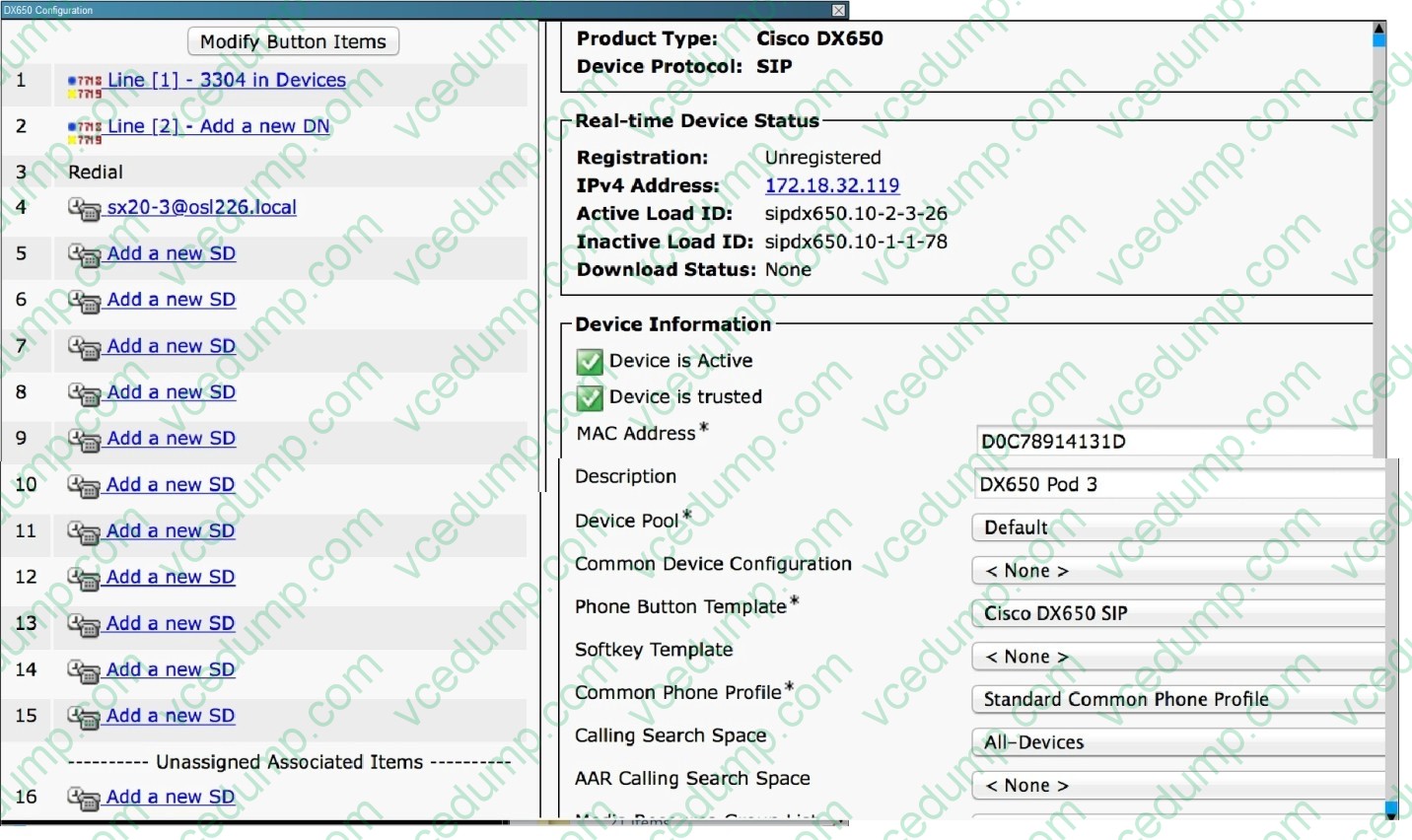

  DX650 Configuration:

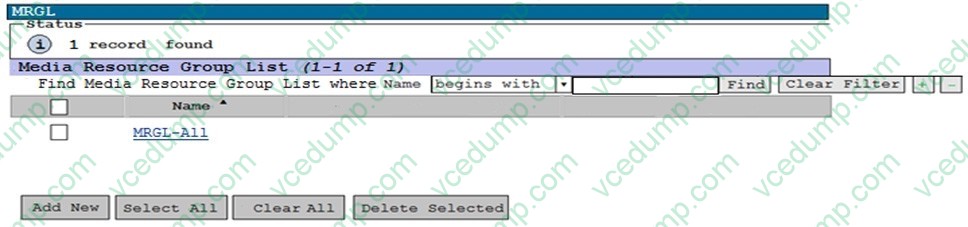

  MRGL:

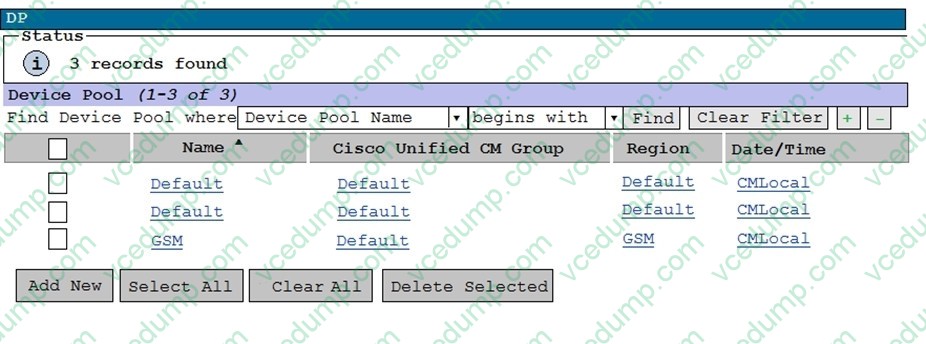

  DP:

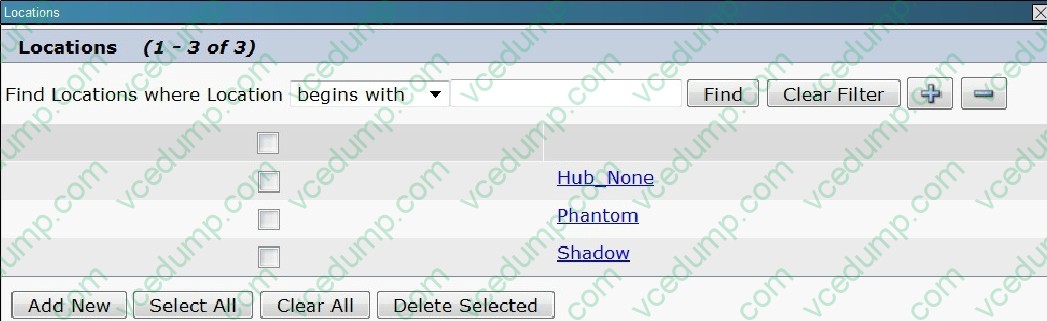

  Locations:

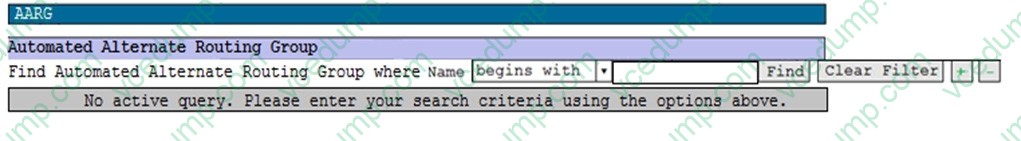

  AARG:

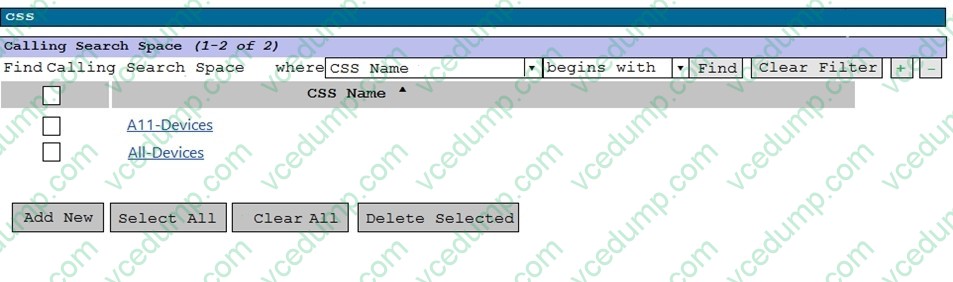

  CSS:

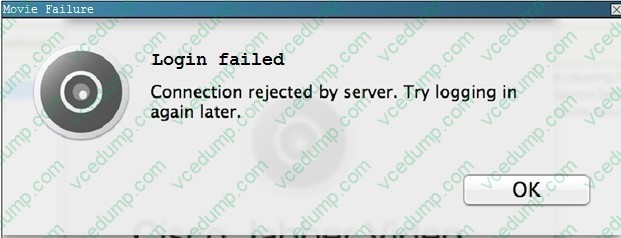

  Movie Failure:

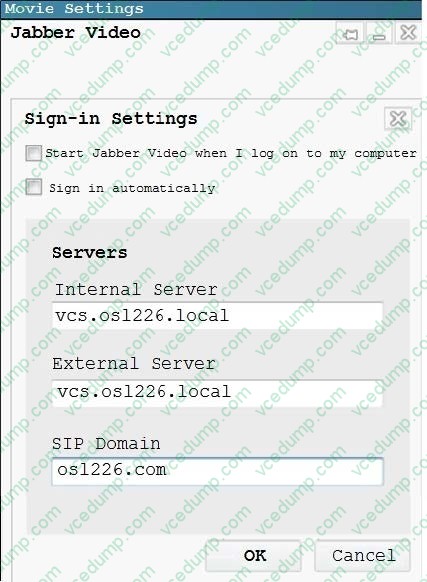

  Movie Settings:



  Which device configuration option will allow an administrator to assign a device to specific rights for making calls to specific DNs?

  A. Media Resource Group List
  B. Device Pool
  C. Location
  D. AAR Group
  E. Calling Search Space
  E. Calling Search Space

• Question 436:

  A Cisco Unified Communications Manager cluster is installed in headquarters only. How can international calls be blocked while national calls are allowed for branch office Cisco IP Phones during a WAN failure?

  A. Configure CSS and partitions in Cisco Unified Communications Manager and apply the CSS and partitions to the SRST ISR.
  B. Configure CSS and partitions in the SRST ISR.
  C. Configure COR in the SRST ISR.
  D. Configure voice translations in the SRST ISR.
  C. Configure COR in the SRST ISR.

• Question 437:

  An engineer is configuring Global Dial Plan Replication and wants to prevent the local cluster from routing the Vice President number 5555555555 to the remote cluster. Which action on the remote cluster accomplishes this task?

  A. Create a block route pattern.
  B. Create a block learned pattern.
  C. Create a block transformation pattern.
  D. Create a block translation pattern.
  B. Create a block learned pattern.

• Question 438:

  Company X has deployed a VCS Control with a local zone and a traversal client zone. To facilitate external calls, VCS Expressway is deployed and traversal server zone is set up there. Video endpoints inside Company X have registered, but are unable to receive calls from outside endpoints.

  Which option could be the cause of this issue?

  A. The traversal zone on the VCS Control does not have a search rule configured.
  B. The access control list on the VCS Control must be updated with the IP for the external users.
  C. When a traversal zone is set up on VCS Control only outbound calls are possible.
  D. The local zone on the VCS Control does not have a search rule configured.
  A. The traversal zone on the VCS Control does not have a search rule configured.

• Question 439:

  You are the Cisco Unified Communications Manager in Certpaper.com. You use a remote site MGCP gateway to provide redundancy when connectivity to the central Cisco Unified Communications Manager cluster is lost. How to enable IP phones to establish calls to the PSTN when they have registered with the gateway? (Choose three.)

  A. POTS dial peers must be added to the gateway to route calls from the IP phones to the PSTN.
  B. The default service must be enabled globally.
  C. The command ccm-manager mgcp-fallback must be configured.
  D. COR needs to be configured to disallow outbound calls.
  A. POTS dial peers must be added to the gateway to route calls from the IP phones to the PSTN.
  B. The default service must be enabled globally.
  C. The command ccm-manager mgcp-fallback must be configured.

• Question 440:

  Which option configures call preservation for H.323-based SRST mode?

  A. voice service voip h323 call preserve
  B. call preservation not possible with H.323
  C. call-manager-fallback preserve-call
  D. dial-peer voice 1 voip call preserve
  A. voice service voip h323 call preserve
