Cisco 300-075 Online Practice Questions and Exam Preparation

Cisco 300-075 Online Questions & Answers

• Question 321:

  Which command should you use on the gatekeeper to specify the address of a Cisco Unified Communications Manager IP address?

  A. gw-type-ip
  B. gw-type-prefix-ip
  C. gw-ip-cm
  D. gw-type-prefix
  E. gw-ip-type
  F. gw-prefix-ip
  D. gw-type-prefix

• Question 322:

  After forgetting to log out of his IP phone in the main office, an Extension Mobility user is unable to log in to a different IP phone at a remote office. Which option is a possible reason for the problem?

  A. The phone at the remote location is a different model than the phone in the user's main office.
  B. The user's Extension Mobility profile is misconfigured.
  C. The user can log in to only one device at a time.
  D. The device pool is misconfigured.
  C. The user can log in to only one device at a time.

• Question 323:

  When an H.323 trunk is added for Call Control Discovery, which statement is true?

  A. The H.323 trunk is added by selecting Inter-Cluster Trunk (Non-Gatekeeper Controlled) and Device Protocol Inter-Cluster Trunk. The Enable SAF check box should be selected in the trunk configuration.
  B. The H.323 trunk is added by selecting Inter-Cluster Trunk (Non-Gatekeeper Controlled) and Device Protocol Inter-Cluster Trunk. The Trunk Service Type should be Call Control Discovery.
  C. The H.323 trunk is added by selecting Call Control Discovery Trunk and then selecting H.323 as the protocol to be used.
  D. The H.323 trunk is added by selecting H.323 Trunk, and selecting Inter-Cluster Trunk as the Device Protocol. The destination IP address field is configured as `SAF' to indicate that this trunk is used for SAF.
  A. The H.323 trunk is added by selecting Inter-Cluster Trunk (Non-Gatekeeper Controlled) and Device Protocol Inter-Cluster Trunk. The Enable SAF check box should be selected in the trunk configuration.

• Question 324:

  Which action configures the registration of transcoder resources?

  A. Cisco IOS software registers transcoder resources with SIP.
  B. Cisco IOS software registers transcoder resources with SCCP.
  C. Cisco IOS software registers transcoder resources with H.323.
  D. Cisco IOS software does not register transcoder resources.
  B. Cisco IOS software registers transcoder resources with SCCP.

• Question 325:

  Scenario:

  There are two call control systems in this item.

  The Cisco UCM is controlling the DX650, the Cisco Jabber for Windows Client, and the 7965 and 9971 Video IP Phones.

  The Cisco VCS and TMS control the Cisco TelePresence Conductor, the Cisco TelePresence MCU, and the Cisco Jabber TelePresence for Windows.

  DNS Server:

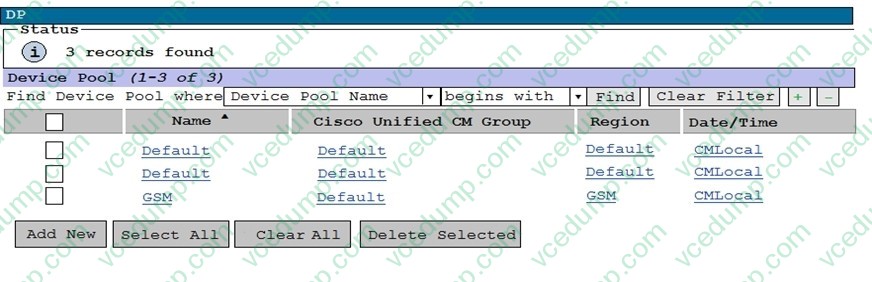

  Device Pool:

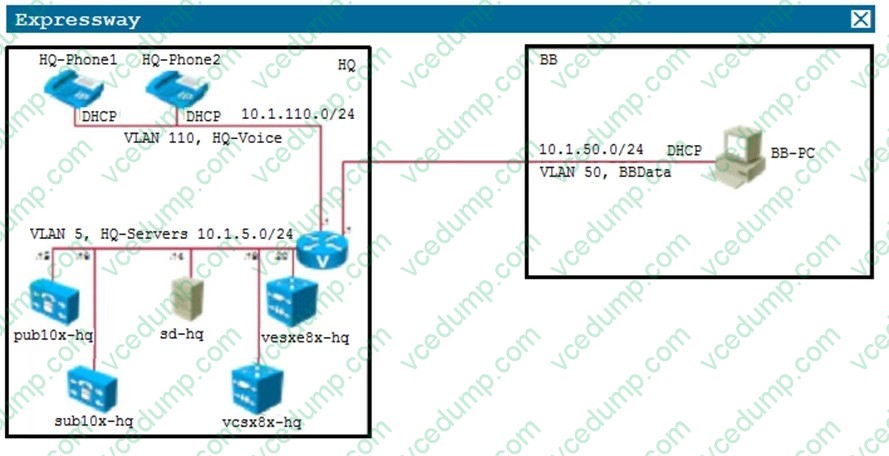

  Expressway:

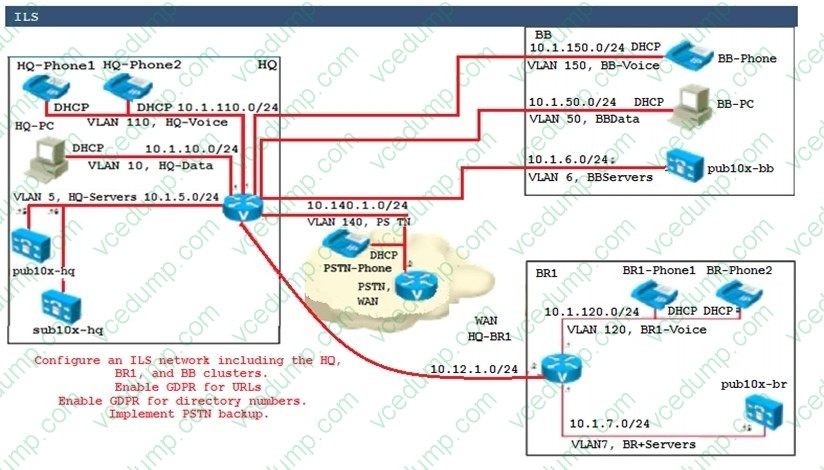

  ILS:

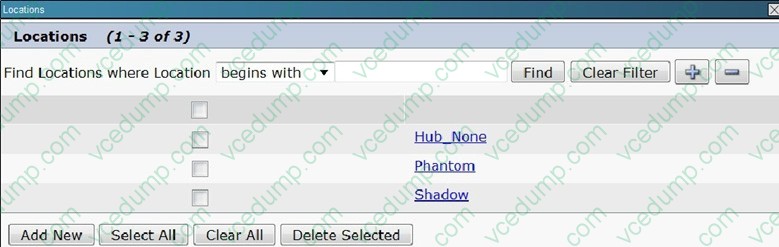

  Locations:

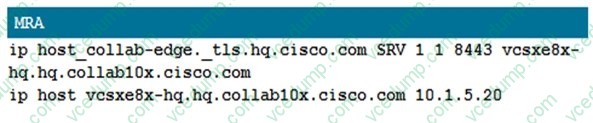

  MRA:



  Speed Dial:

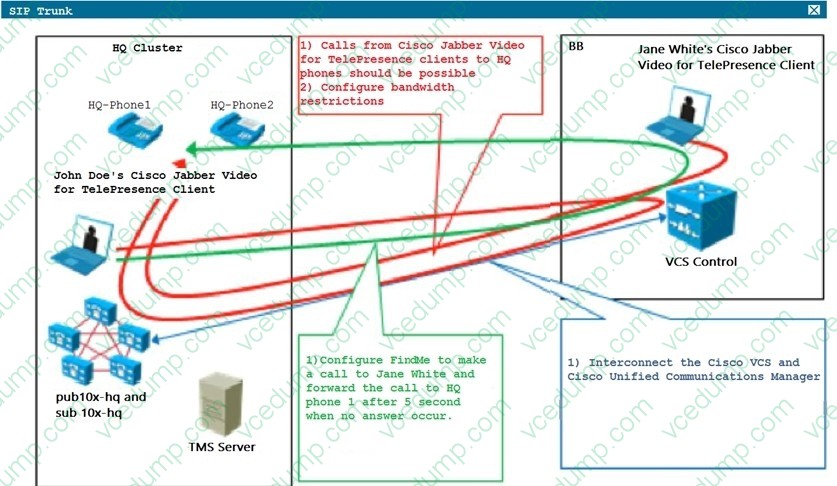

  SIP Trunk:



  The intercluster URI call routing no longer allows calls between sites. What is the reason why this would happen?

  A. Wrong SIP domain configured.
  B. User is not associated with the device.
  C. IP or DNS name resolution issue.
  D. No SIP route patterns for cisco.lab exist.
  C. IP or DNS name resolution issue.

• Question 326:

  Which configuration does Cisco recommend for the peer address on the Expressway-C secure traversal zone when the Expressway-E has one NIC enabled?

  A. Expressway-E internal IP address
  B. Expressway-E external IP address
  C. Expressway-E internal FQDN
  D. Expressway-E external FQDN
  D. Expressway-E external FQDN

• Question 327:

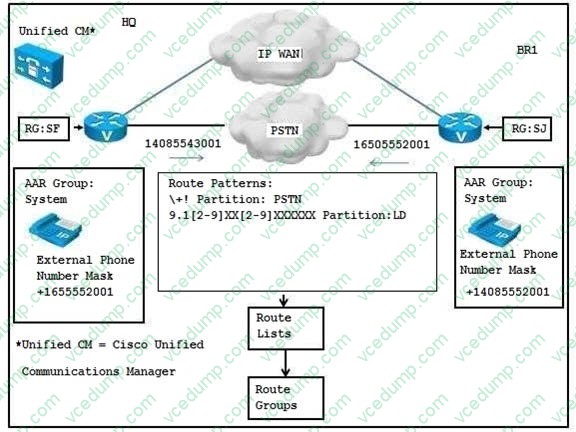

  Refer to the exhibit.



  The HQ site uses area code 650. The BR1 site uses area code 408. The long distance national code for PSTN dialing is 1. To make a long distance national call, an HQ or BR1 user dials access code 9, followed by 1, and then the 10-digit number. Both sites use MGCP gateways. AAR must use globalized call routing using a single route pattern. Assume that all outgoing PSTN numbers are localized at the egress gateway as shown in the exhibit. Which statement is true?

  A. The AAR group system must be configured on the device configuration of the phones.
  B. The AAR group system must be configured on the line configuration of the phones.
  C. The single AAR group system cannot be used. A second AAR group must be configured in order to have source and destination AAR groups.
  D. The AAR group system must be configured under the AAR service parameters.
  B. The AAR group system must be configured on the line configuration of the phones.

• Question 328:

  Which three configuration settings are included in a default region configuration? (Choose three.)

  A. Immersive Bandwidth
  B. Video Call Bandwidth
  C. Audio Codec
  D. Link Loss Type
  E. Real Time Protocol
  F. Location Description
  B. Video Call Bandwidth
  C. Audio Codec
  D. Link Loss Type

• Question 329:

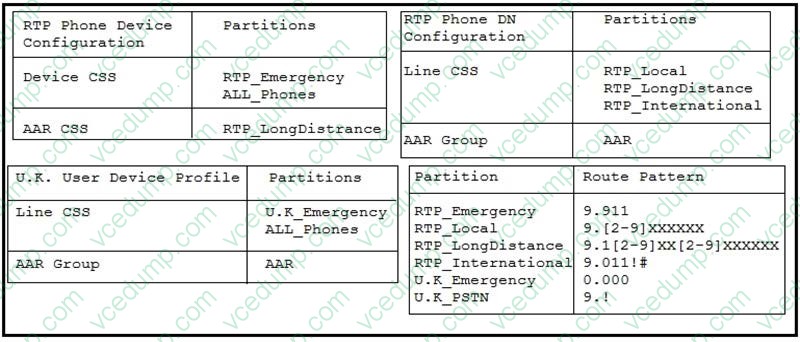

  Assume a centralized Cisco Unified Communications deployment with the headquarters in the U.K, and remote site in RTP. All route patterns are assigned a route list that points to the local route group. Local route groups have been configured on the U.K and RTP device pools. A U.K. user logs onto an RTP phone using the Cisco Extension Mobility feature and places an emergency call to 0000. Which statement about the emergency call is true?

  A. The call will match the U.K_Emergency route pattern partition and will egress at the RTP gateway.
  B. The call will match the U.K_Emergency route pattern partition and will egress at the U.K. gateway.
  C. The call will match the RTP_Emergency route pattern partition and will egress at the U.K. gateway.
  D. The call will match the RTP_Emergency route pattern partition and will egress at the RTP gateway.
  E. The call will fail.
  A. The call will match the U.K_Emergency route pattern partition and will egress at the RTP gateway.

• Question 330:

  Refer to the exhibit.



  The HQ site uses area code 650. The BR1 site uses area code 408. The long distance national code for PSTN dialing is 1. To make a long distance national call, an HQ or BR1 user dials access code 9, followed by 1, and then the 10-digit number. Both sites use MGCP gateways. AAR must use globalized call routing using a single route pattern. Assume that all outgoing PSTN numbers are localized at the egress gateway as shown in the exhibit.

  How many route lists and route groups should be configured for AAR at a minimum?

  A. a single route list with a local route group for each site
  B. two route lists and two route groups for each site
  C. a single route list and four route groups for each site
  D. None. The AAR CSS can point directly to the route pattern.
  A. a single route list with a local route group for each site
