Cisco 300-075 Online Practice Questions and Exam Preparation

Cisco 300-075 Online Questions & Answers

• Question 311:

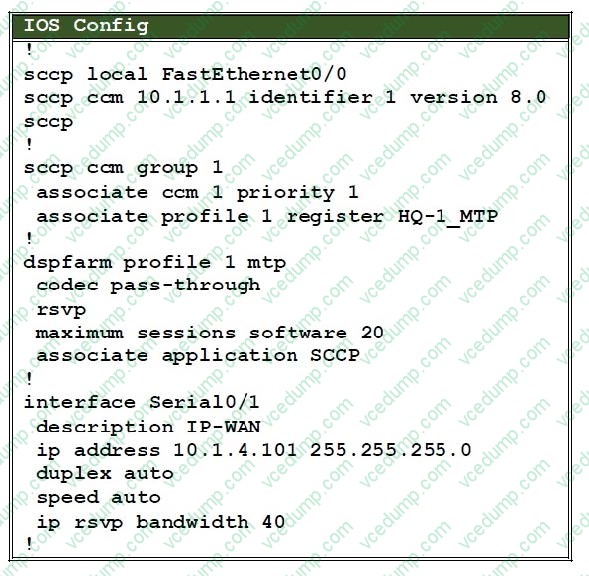

  Refer to the exhibit.



  What media resource should be configured in Cisco Unified Communications Manager?

  A. Cisco Media Termination Point Hardware
  B. Cisco IOS Enhanced Media Termination Point Cisco
  C. Cisco IOS Media Termination Point
  D. Cisco Media Termination Point Hardware (WS-SVC-CMM)
  B. Cisco IOS Enhanced Media Termination Point Cisco

• Question 312:

  Which two actions are performed by the Call Control Discovery service after the local Cisco Unified Communications Manager loses its TCP connection with the primary and secondary Service Advertisement Framework? (Choose two.)

  A. Calls are routed to the PSTN gateway after the Call Control Discovery Learned Pattern IP Reachable Duration parameter expires.
  B. All learned patterns are purged from the local cache after the Call Control Discovery PSTN Failover Duration parameter expires.
  C. The Service Advertisement Framework forwarder contacts all the remaining Service Advertisement Framework forwarders in the cluster.
  D. All the remaining Service Advertisement Framework forwarders are notified for their learned patterns.
  E. The Cisco Unified Communications Manager establishes a connection with the primary and secondary Service Advertisement Framework after the Learned Pattern IP Reachable Duration parameter expires.
  F. Call Control Discovery immediately redirects all the calls to the PSTN gateway based on the learned patterns.
  A. Calls are routed to the PSTN gateway after the Call Control Discovery Learned Pattern IP Reachable Duration parameter expires.
  B. All learned patterns are purged from the local cache after the Call Control Discovery PSTN Failover Duration parameter expires.

• Question 313:

  An engineer must resolve a "VIDEO" call failure issue. When using RTMT, the engineer notices that the Location Bandwidth Manager-OutOfResources counter is showing a positive value.

  Which option is the cause of the call failure?

  A. lack of audio bandwidth
  B. lack of video bandwidth
  C. lack of transcoding resources
  D. lack of audio or video bandwidth
  E. lack of conferencing resources
  B. lack of video bandwidth

• Question 314:

  An engineer is performing an international multisite deployment and wants to create an effective backup method to access TEHO destinations in case the call limit triggers. Which technology provides this ability?

  A. AAR
  B. CFUR
  C. LRG
  D. SRST
  A. AAR

• Question 315:

  Which bandwidth amounts are correct for configuring locations?

  A. 8 kb/s for G.729, 64 kb/s for G.711, and 64 kb/s for G.722
  B. 8 kb/s for G.729, 64 kb/s for G.711, and 16 kb/s for G.722
  C. 64 kb/s for G.729, 64 kb/s for G.711, and 64 kb/s for G.722
  D. 8 kb/s for G.729, 8 kb/s for G.711, and 8 kb/s for G.722
  A. 8 kb/s for G.729, 64 kb/s for G.711, and 64 kb/s for G.722

• Question 316:

  Which statement about Universal transcoder is true?

  A. It is required for video calls.
  B. It is a newer for transcoder resource.
  C. It allows any codec to any codec conversation.
  D. It is using less DSP resources.
  C. It allows any codec to any codec conversation.

• Question 317:

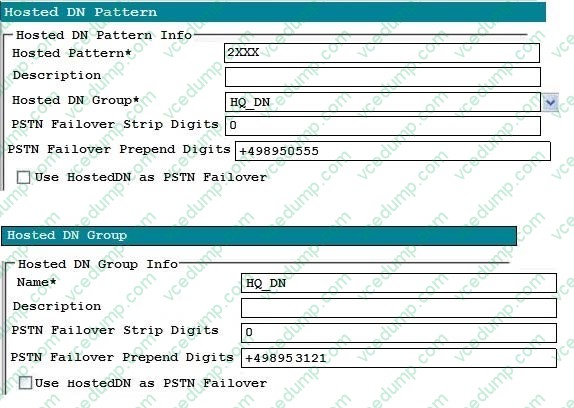

  Refer to the exhibit.



  When the Cisco Unified Communications Manager advertises the Hosted DN Pattern, which pattern would be advertised?

  A. 2XXX and the T0D1D will be 0:+498950555
  B. 2XXX and the ToDID will be 0:+4989531 21
  C. 4989S05552XXX and the ToDiD will be 0:
  D. + 4989631 21 2XXX and the ToDiD will be 0:
  E. Both +4989505552XXXand +4989531 21 2XXX will be advertised with ToDID of 0:
  A. 2XXX and the T0D1D will be 0:+498950555

• Question 318:

  Scenario:

  There are two call control systems in this item.

  The Cisco UCM is controlling the Cisco Jabber for Windows Client, and the 7965 and 9971 Video IP Phone.

  The Cisco VCS is controlling the SX20, the Cisco TelePresence MCU, and the Cisco Jabber TelePresence for Windows

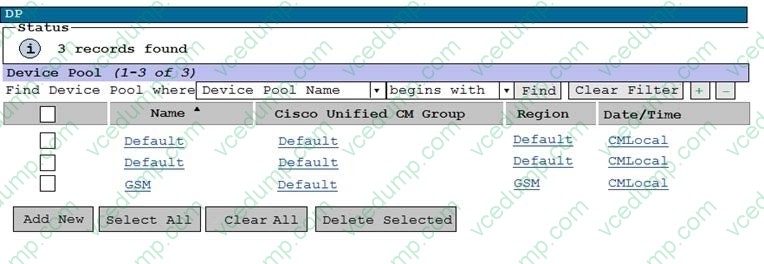

  DP:



  Locations:

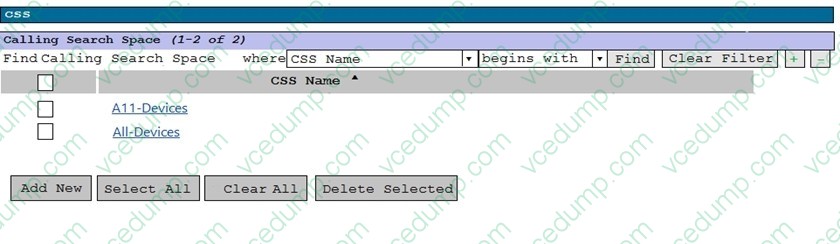

  CSS:



  Movie Failure:



  Movie Settings:



  CIPTV2 Topology:

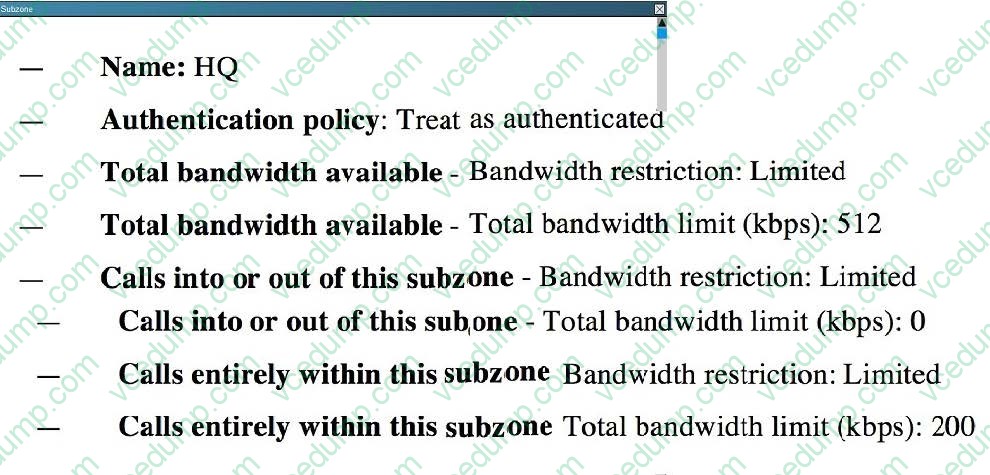

  Subzone:

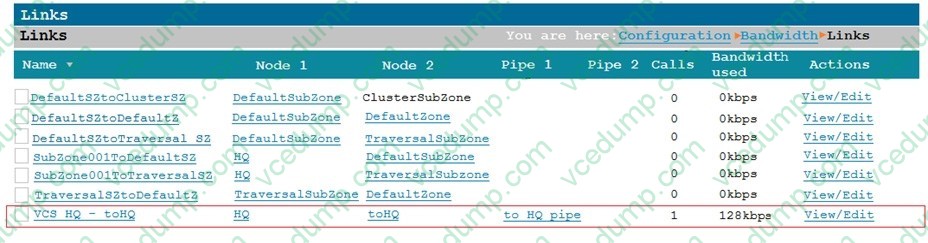

  Links:



  Pipe:



  What two issues could be causing the Cisco Jabber Video for TelePresence failure shown in the exhibit? (Choose two)

  A. Incorrect username and password.
  B. Wrong SIP domain configured.
  C. User is not associated with the device.
  D. IP or DNS name resolution issue.
  E. CSF Device is not registered.
  F. IP Phone DN not associated with the user.
  B. Wrong SIP domain configured.
  D. IP or DNS name resolution issue.

• Question 319:

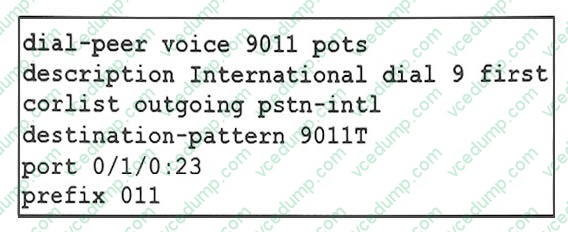

  Refer to the exhibit. What digits will be sent to the PSTN telco through 0/1/0:23 if the user dialed 9011443335343?

  A. 3335343
  B. 011443335343
  C. 443335343
  D. 9011443335343
  B. 011443335343

• Question 320:

  Which two commands, one of which can be used to verify Cisco IP phone sip registration, and one of which can be used to verify Cisco IP phone sccp registration on Cisco Unified Communications Manager Express? (Choose two.)

  A. show telephony-service ephone-dn
  B. show voice register session-server
  C. show ephone registered
  D. show ccm-manager hosts
  E. show sip-ua registrar status
  C. show ephone registered
  E. show sip-ua registrar status
