• Question 231:

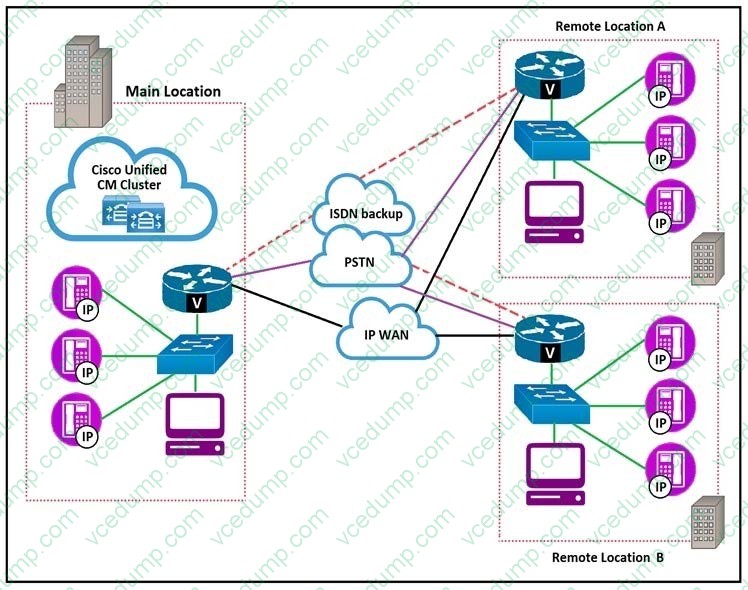

  Refer to the exhibit.

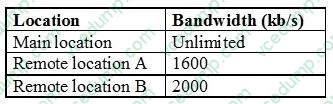

  Consider the following location configuration in the Cisco Unified Communications Manager cluster in main cluster.

  Which two codecs are recommended for each location if the requirement is to support 66 calls in remote location A 83 calls in remote location B? (Choose two.)



  A. iLBC
  B. G.723
  C. G.711
  D. GSM
  E. G.729
  B. G.723

• Question 232:

  Which type of IOS Conference bridge requires all users to use the same video format in order to participate in a video conference?

  A. Ad Hoc Conferencing
  B. Homogenous Conferencing
  C. Heterogenous Conferencing
  D. Guaranteed Audio Video Conferencing
  E. Meet-Me Conferencing
  B. Homogenous Conferencing

• Question 233:

  Which feature allows users to use the same set of patterns to route calls out of their local gateways?

  A. standard local route group
  B. route list
  C. SIP trunking
  D. intercluster trunk
  A. standard local route group

• Question 234:

  The Ajax Corporation is designing an IP telephony network using Cisco MCS 7845 Series servers, each one capable of supporting 7500 devices. The design must meet these requirements:

  be cost-effective support up to 7500 phones provide a minimal level of redundancy

  Which configuration will meet Ajax Corporation needs?

  A. two Cisco Unified Communications Manager servers: 1 publisher and TFTP server combined 1 primary subscriber
  B. three Cisco Unified Communications Manager servers: 1 publisher and TFTP server combined 1 primary subscriber 1 backup subscriber
  C. four Cisco Unified Communications Manager servers: 1 publisher 1 TFTP server 1 primary subscriber 1 backup subscriber
  D. five Cisco Unified Communications Manager servers 1 publisher 1 TFTP server 1 primary subscriber 2 backup subscribers
  B. three Cisco Unified Communications Manager servers: 1 publisher and TFTP server combined 1 primary subscriber 1 backup subscriber

• Question 235:

  Which two of these are examples of an off-net address class in a route plan? (Choose two.)

  A. international
  B. emergency
  C. intrasite
  D. intersite
  E. voicemail
  A. international
  B. emergency

• Question 236:

  When Cisco Unified Communications Manager software is installed on a Cisco MCS server, which level of access does it provide for the customer to the operating system of the server?

  A. CLI and GUI access.
  B. CLI access only
  C. GUI access only
  D. No access.
  E. Access only through an interface controlled by Cisco TAC
  A. CLI and GUI access.

• Question 237:

  You are a Network Engineer at ABC Company. You want to ensure that when the contact center agent for the company makes an external call, the extension 897 654 300 is displayed. How do you resolve this issue?

  A. Configure a Line Text Label on the Directory Number configuration page.
  B. Configure an external phone number mask on the Directory Number configuration page.
  C. Configure a translation pattern with the pattern 897654300.
  D. Configure an external phone number mask on the Device configuration page.
  B. Configure an external phone number mask on the Directory Number configuration page.

• Question 238:

  Which two dial peers successfully forward the digits 5551212? (Choose two.)

  A. dial-peer voice 1 pots destination-pattern 14085551212 forward-digits 10 port 1/1
  B. dial-peer voice 1 pots destination-pattern 14085551... prefix 555 port 1/1
  C. dial-peer voice 1 pots destination-pattern 1408...... forward-digits all port 1/1
  D. dial-peer voice 1 pots destination-pattern 555.... no digit-strip port 1/1
  E. dial-peer voice 1 pots destination-pattern 1408...... port 1/1
  A. dial-peer voice 1 pots destination-pattern 14085551212 forward-digits 10 port 1/1
  D. dial-peer voice 1 pots destination-pattern 555.... no digit-strip port 1/1

• Question 239:

  What are two characteristics of a partition? (Choose two.)

  A. Assigned to sources of call routing requests
  B. Any group of numbers with the same reachability
  C. Used in conjunction with calling search spaces to track calls to certain numbers
  D. Used in conjunction with calling search spaces to restrict outgoing calls to certain numbers
  E. Contains calling search spaces
  B. Any group of numbers with the same reachability
  D. Used in conjunction with calling search spaces to restrict outgoing calls to certain numbers

• Question 240:

  Which statement about a partition is true?

  A. A partition is a logical group of transformation patterns with similar accessibility characteristics.
  B. A partition is a group of gateways with similar accessibility characteristics.
  C. A partition is a logical group of directory numbers with similar accessibility characteristics.
  D. A partition is a logical group of route patterns with similar accessibility characteristics
  C. A partition is a logical group of directory numbers with similar accessibility characteristics.
