Cisco 300-070 Online Practice Questions and Exam Preparation

Cisco 300-070 Online Questions & Answers

• Question 91:

  Which three steps are needed to enable time-of-day call routing? (Choose three.)

  A. Configure an access list.
  B. Configure a time period.
  C. Configure a time schedule.
  D. Configure a route pattern.
  E. Configure a partition.
  F. Configure dial rules.
  G. Configure a calling search space.
  B. Configure a time period.
  C. Configure a time schedule.
  G. Configure a calling search space.

• Question 92:

  Which four call coverage features are used by voice gateways? (Choose four.)

  A. call hunt
  B. Call Park
  C. Call Pickup
  D. call redirecting
  E. overlaid phone-dn
  F. basic automatic call distribution
  G. overlaid ephone-dn
  H. basic manual call distribution
  A. call hunt
  C. Call Pickup
  F. basic automatic call distribution
  G. overlaid ephone-dn

• Question 93:

  If no SIP dial rules are configured on an IP phone, at which three points in the collection of digits does a Type A SIP phone send digits to the Cisco Unified Communications Manager? (Choose three.)

  A. when the interdigit timer expires
  B. when the collected digits match a SIP dial rule
  C. when the user presses the Dial softkey
  D. as each digit is collected (it is sent for analysis)
  E. when the user presses the # key
  A. when the interdigit timer expires
  C. when the user presses the Dial softkey
  E. when the user presses the # key

• Question 94:

  Refer to the exhibit. What is the command to place the static IP address by CLI in the Cisco TelePresence MSE 8000?



  A. MSE 8050: static 0 10.10.2.13 255.255.255.255 10.10.2.1 200.87.100.10 200.87.100.20.
  B. MSE 8050: static 0 10.10.2.13 255.255.255.0 10.10.2.1 200.87.100.10 200.87.100.20.
  C. MSE 8050: static 1 10.10.2.13 255.255.255.0 10.10.2.1 200.87.100.10 200.87.100.20
  D. MSE 8050: static ip 0 10.10.2.13 255.255.255.0 10.10.2.1 200.87.100.10 200.87.100.20.
  B. MSE 8050: static 0 10.10.2.13 255.255.255.0 10.10.2.1 200.87.100.10 200.87.100.20.

• Question 95:

  Which endpoint transport is the default when configuring Cisco TelePresence Server?

  A. SIP
  B. SCCP
  C. TCP
  D. UDP
  C. TCP

• Question 96:

  An engineer is configuring media resources and a language annunciator.

  Which component is required?

  A. music on hold
  B. transcoder
  C. software conference bridge
  D. annunciator
  D. annunciator

• Question 97:

  Which two of these describe Meet-Me conferencing? (Choose two.)

  A. The conference originator of the conference acts as the controller of the conference and is the only participant who can add or remove other participants.
  B. Any participant can add and remove other conference participants.
  C. Anyone who has calling privileges to call the directory number while the conference is active can join the conference.
  D. Multiple ad hoc conference can be added.
  E. A range of directory numbers must be allocated for exclusive use by the conference.
  C. Anyone who has calling privileges to call the directory number while the conference is active can join the conference.
  E. A range of directory numbers must be allocated for exclusive use by the conference.

• Question 98:

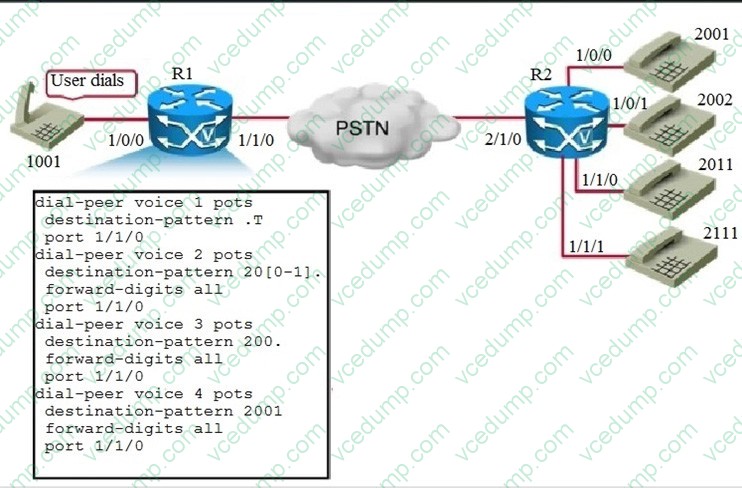

  Refer to Exhibit:



  If the user at extension 1001 dials the user at extension 2011, which dial peer is used to route the call?

  A. 3
  B. 2
  C. 4
  D. 1
  B. 2

• Question 99:

  Which two elements of a dial plan define the domains that are accessible and are assigned to an endpoint? (Choose two.)

  A. Partitions
  B. Calling Search Spaces
  C. Route patterns
  D. Translation patterns
  E. Call Admission Control
  A. Partitions
  B. Calling Search Spaces

• Question 100:

  Which two options are applications that support service categories in Cisco Unified Communications Manager? (Choose two.)

  A. WAV
  B. Java MIDlet
  C. CSV
  D. XML
  B. Java MIDlet
  D. XML
