VMware 2V0-41.20 Online Practice Questions and Exam Preparation

VMware 2V0-41.20 Online Questions & Answers

• Question 1:

  The NSX Control Plane is responsible for which two functions? (Choose two.)

  A. receive and validate configuration from NSX Policy
  B. host API services
  C. propagate topology information
  D. push stateless configurations to forwarding engines
  E. maintain packet-level statistics
  C. propagate topology information
  D. push stateless configurations to forwarding engines

• Question 2:

  Which two BGP configuration parameters can be configured in the VRF Lite gateways? (Choose two.)

  A. Route Aggregation
  B. Route Distribution
  C. Graceful Restart
  D. BGP Neighbors
  E. Local AS
  A. Route Aggregation
  D. BGP Neighbors

  ---

  The following parameters are inherited from the default Tier-0 gateway and cannot be modified at the VRF level:

  1.

  Local AS

  2.

  Graceful restart

  3.

  Graceful restart timer

  4.

  Graceful restart stale timer

  5.

  Multipath relax

  Inter-SR iBGP is not supported in VRF gateways.

  BGP can be enabled or disabled per VRF gateway.

  Route aggregation and BGP neighbors are local configurations per VRF.

• Question 3:

  An NSX administrator is troubleshooting a connectivity issue with virtual machines running on an ESXi transport node.

  Which feature in the NSX UI shows the mapping between the virtual NIC and the host's physical adapter?

  A. Switch Visualization
  B. Port Mirroring
  C. Activity Monitoring
  D. IPFIX
  A. Switch Visualization

• Question 4:

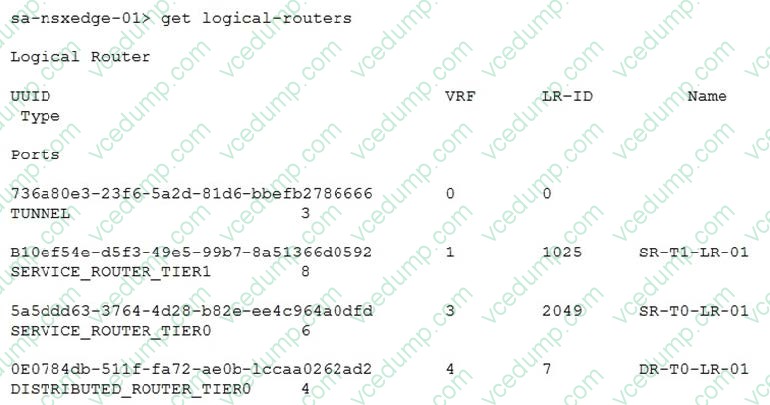

  A customer has a network where BGP has been enabled and the BGP neighbor is configured on the Tier-0 Gateway. A NSX-T Data Center administrator used the get logical-routers command to retrieve this information:



  Which two commands must be executed to check BGP neighbor status? (Choose two.)

  A. vrf 3
  B. vrf 1
  C. vrf 4
  D. sa-nsxedge-01(tier1_sr)> get bgp neighbor
  E. sa-nsxedge-01(tier0_sr)> get bgp neighbor
  F. sa-nsxedge-01(tier0_dr)> get bgp neighbor
  A. vrf 3
  E. sa-nsxedge-01(tier0_sr)> get bgp neighbor

• Question 5:

  Which command is used to set the NSX Manager's logging-level to debug mode for troubleshooting?

  A. set service nsx-manager logging-level debug
  B. set service nsx-manager log-level debug
  C. set service manager log-level debug
  D. set service manager logging-level debug
  D. set service manager logging-level debug

  ---

  Explanation: https://vdc-download.vmware.com/vmwb-repository/dcr-public/cc42e3c1-eb34-4567-a916-147e79798957/8264605c-a5e1-49a8-b603-cc78621eeeab/cli.html

• Question 6:

  An NSX administrator noticed that the nsxcli command times out after 600 secs of idle time. Which CLI command disables the nsxcli time out value on NSX Manager?

  A. set cli-timeout 0
  B. set cli-timeout enabled
  C. set cli-timeout disabled
  D. set cli-timeout 1
  A. set cli-timeout 0

  ---

  https://vdc-download.vmware.com/vmwb-repository/dcr-public/cc42e3c1-eb34-4567-a916-147e79798957/8264605c-a5e1-49a8-b603-cc78621eeeab/cli.html#set%20cli-timeout%20%3Ctimeout%3E https://www.virten.net/2020/06/quick-tip-remove-nsx-t-ssh-and-http-session-timeout/

• Question 7:

  An NSX administrator is configuring the KVM hypervisor host as a transport node and wants to apply the Failover Order as a NIC teaming policy. Which profile allows the administrator to configure the NIC Teaming policy as Failover Order?

  A. N-VDS/VDS Profile
  B. Transport Node Profile
  C. Host Switch Profile
  D. Uplink Profile
  D. Uplink Profile

• Question 8:

  Which statement is true about an alarm in a Suppressed state?

  A. An alarm can be suppressed for a specific duration in days.
  B. An alarm can be suppressed for a specific duration in minutes.
  C. An alarm can be suppressed for a specific duration in seconds.
  D. An alarm can be suppressed for a specific duration in hours.
  D. An alarm can be suppressed for a specific duration in hours.

  ---

  https://docs.vmware.com/en/VMware-NSX-Intelligence/1.1/user-guide/GUID-EBD3C5A8-F9AB-4A22-BA40-92D61850C1E6.html https://docs.vmware.com/en/VMware-NSX-T-Data-Center/3.0/administration/GUID-EB1BB1D3-8892-4890-BE74-EF43CFC75F19.html

  "If you move an alarm into a Suppressed state, you are prompted to specify the duration in hours. After the specified duration passes, the alarm state reverts to Open. However, if the system determines the condition has been corrected, the alarm state changes to Resolved."

• Question 9:

  Which two logical router components span across all transport nodes? (Choose two.)

  A. DISTRIBUTED_ROUTER_TIER0
  B. SERVICE_ROUTER_TIER0
  C. TIER0_DISTRIBUTED_ROUTER
  D. DISTRIBUTED_ROUTER_TIER1
  E. SERVICE_ROUTER_TIER1
  A. DISTRIBUTED_ROUTER_TIER0
  D. DISTRIBUTED_ROUTER_TIER1

• Question 10:

  Which three services are compatible with VRF Lite? (Choose three.)

  A. VPN
  B. Intrusion Detection
  C. NAT
  D. Load Balancer
  E. DHCP
  B. Intrusion Detection
  C. NAT
  E. DHCP

  ---

  VRF Lite is not compatible with the following services:

  1.

  VPN

  2.

  Load Balancer

  Taken from NSX-T ICM 3.0 Lecture Manual.
