F5 201 Online Practice Questions and Exam Preparation

F5 201 Online Questions & Answers

• Question 61:

  A BIG-IP Administrator needs to collect HTTP status code and HTTP method for traffic flowing through a virtual server. Which default profile provides this information?

  A. HTTP
  B. Analytics
  C. Request Adapt
  D. Statistics
  A. HTTP

• Question 62:

  Refer to the exhibit.



  An organization is reporting slow performance accessing their Intranet website, hosted in a public cloud. All employees use a single Proxy Server with the public IP of 104.219.110.168 to connect to the Internet. What should the BIG-IP Administrator of the Intranet website do to fix this issue?

  A. Change Source Address to 104.219.110.168/32
  B. Change Load Balancing Method to Least Connection
  C. Change Fallback Persistence Profile to source_addr
  D. Change Default Persistence Profile to cookie
  D. Change Default Persistence Profile to cookie

• Question 63:

  A BIG-IP Administrator explicitly creates a traffic group on a BIG-IP device.

  Which two types of configuration objects can be associated with this traffic group? (Choose two.)

  A. Pool Members
  B. Virtual Addresses
  C. iRules
  D. VLANS
  E. Application Instances
  B. Virtual Addresses
  E. Application Instances

• Question 64:

  Refer to the exhibit.



  A BIG-IP Administrator needs to configure health monitors for a newly configured server pool named Pool_B.

  Which health monitor settings will ensure that all pool members will be accurately marked as available or unavailable?

  A. HTTPS, HTTP, FTP, and ICMP, with the Availability Requirement of all health monitors
  B. HTTPS, HTTP, FTP, and SSH, with the Availability Requirement of at least one monitor
  C. HTTPS and HTTP with the Availability Requirement of at least one health monitor
  D. HTTPS, HTTP, FTP, and SSH with the Availability Requirement of all health monitors
  B. HTTPS, HTTP, FTP, and SSH, with the Availability Requirement of at least one monitor

• Question 65:

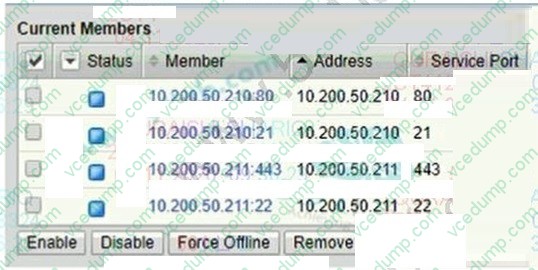

  Refer to the exhibit.



  A BIG-IP Administrator creates a new Virtual Server. The end user is unable to access the page. During troubleshooting, the administrator learns that the connection between the BIG-IP system and server is NOT set up correctly. What should the administrator do to solve this issue?

  A. Disable Address Translation
  B. Set Address Translation to Auto Map, configure a SNAT pool, and have pool members in the same subnet of the servers
  C. Set Address Translation to SNAT and configure a specific translation address
  D. Set Address Translation to SNAT and have self-IP configured in the same subnet of servers
  C. Set Address Translation to SNAT and configure a specific translation address

• Question 66:

  How is MAC masquerading configured?

  A. Specify the desired MAC address for each VLAN for which you want this feature enabled.
  B. Specify the desired MAC address for each selfIP address for which you want this feature enabled.
  C. Specify the desired MAC address for each VLAN on the active system and synchronize the systems.
  D. Specify the desired MAC address for each floating selfIP address for which you want this feature enabled.
  A. Specify the desired MAC address for each VLAN for which you want this feature enabled.

• Question 67:

  New Syslog servers have been deployed in an organization. The BIG-IP Administrator must reconfigure the BIG-IP system to send log messages to these servers. In which location in the Configuration Utility can the BIG-IP Administrator make the needed configuration changes to accomplish this?

  A. System > Logs > Configuration
  B. System > Configuration > Local Traffic
  C. System > Logs > Audit
  D. System > Configuration > Device
  A. System > Logs > Configuration

• Question 68:

  A standard virtual server is defined with a pool and a SNAT using automap. All other settings for the virtual server are at defaults. When client traffic is processed by the BIG-IP, what will occur to the IP addresses?

  A. Traffic initiated by the pool members will have the source address translated to a self-IP address but the destination address will not be changed.
  B. Traffic initiated to the virtual server will have the destination address translated to a pool member address and the source address translated to a self-IP address.
  C. Traffic initiated by selected clients, based on their IP address, will have the source address translated to a self-IP address but the destination will only be translated if the traffic is destined to the virtual server.
  D. Traffic initiated to the virtual server will have the destination address translated to a pool member address and the source address translated to a self-IP address. Traffic arriving destined to other destinations will have the source translated to a self-IP address only.
  B. Traffic initiated to the virtual server will have the destination address translated to a pool member address and the source address translated to a self-IP address.

• Question 69:

  A configuration change is made on the standby member of a device group.

  What is displayed as "Recommended Action" on the Device Management Overview screen?

  A. Force active member of device group to standby
  B. Activate device with the most recent configuration
  C. Synchronize the active member configuration to the group.
  D. Synchronize the standby member configuration to the group
  D. Synchronize the standby member configuration to the group

• Question 70:

  Which three iRule events are likely to be seen in iRules designed to select a pool for load balancing? (Choose three.)

  A. CLIENT_DATA
  B. SERVER_DATA
  C. HTTP_REQUEST
  D. HTTP_RESPONSE
  E. CLIENT_ACCEPTED
  F. SERVER_SELECTED
  G. SERVER_CONNECTED
  A. CLIENT_DATA
  C. HTTP_REQUEST
  E. CLIENT_ACCEPTED
