• Question 41:

  Which statement accurately describes the difference between two loadbalancing modes specified as "member" and "node"?

  A. There is no difference; the two terms are referenced for backward compatibility purposes.
  B. When the loadbalancing choice references "node", priority group activation is unavailable.
  C. Loadbalancing options referencing "nodes" are available only when the pool members are defined for the "any" port.
  D. When the loadbalancing choice references "node", the addresses' parameters are used to make the loadbalancing choice rather than the member's parameters.
  B. When the loadbalancing choice references "node", priority group activation is unavailable.

• Question 42:

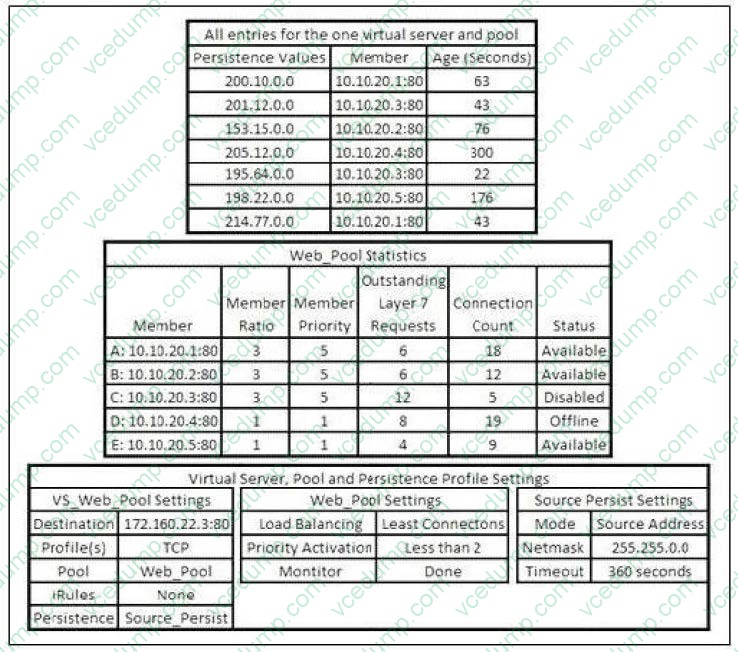

  A virtual server is defined using a source address based persistence profile. The last five connections were A, B, C, A, C . Given the conditions shown in the graphic, if a client with IP address 205.12.45.52 opens a connection to the virtual server, which member will be used for the connection?



  A. 10.10.20.1:80
  B. 10.10.20.2:80
  C. 10.10.20.3:80
  D. 10.10.20.4:80
  E. 10.10.20.5:80
  B. 10.10.20.2:80

• Question 43:

  Refer to the exhibit.



  Due to a change in application requirements, a BIG-IP Administrator needs to modify the configuration of a Virtual Server to include a Fallback Persistence Profile. Which persistence profile type should the BIG-IP Administrator use for this purpose?

  A. SSL
  B. Hash
  C. Universal
  D. Source Address Affinity
  D. Source Address Affinity

• Question 44:

  Refer to the exhibit.





  During maintenance, the BIG-IP Administrator manually disables a pool member as shown. What is the result?

  A. All pool members continue to process persistent connections
  B. All pool members stop accepting new connections.
  C. The disabled pool member stops processing persistent connections.
  D. The disabled pool member stops processing existing connections
  A. All pool members continue to process persistent connections

• Question 45:

  Assume a virtual server has a ServerSSL profile. What SSL certificates are required on the pool members?

  A. No SSL certificates are required on the pool members.
  B. The pool members.SSL certificates must only exist.
  C. The pool members.SSL certificates must be issued from a certificate authority.
  D. The pool members.SSL certificates must be created within the company hosting the BIGIPs.
  B. The pool members.SSL certificates must only exist.

• Question 46:

  Which Virtual Server type prevents the use of a default pool?

  A. Performance (Layer 4)
  B. Forwarding (IP)
  C. Performance HTTP
  D. Standard
  B. Forwarding (IP)

• Question 47:

  Where is connection mirroring configured?

  A. It an option within a TCP profile.
  B. It is an optional feature of each pool.
  C. It is not configured; it is default behavior.
  D. It is an optional feature of each virtual server.
  D. It is an optional feature of each virtual server.

• Question 48:

  The BIG-IP Administrator creates a custom iRule that fails to work as expected. Which F5 online resource should the administrator use to help resolve this issue?

  A. DevCentral
  B. Bug Tracker
  C. University
  D. Health
  A. DevCentral

• Question 49:

  How should a BIG-IP Administrator persistent sessions from being sent to a pool member so that the server administrator can perform maintenance?

  A. force the pool member offline
  B. disable the pool member
  C. add an additional monitor to the poor
  D. disable the virtual server
  A. force the pool member offline

• Question 50:

  Assume a client's traffic is being processed only by a NAT; no SNAT or virtual server processing takes place. Also assume that the NAT definition specifies a NAT address and an origin address while all other settings are left at their defaults. If the origin server were to initiate traffic via the BIG-IP, what changes, if any, would take place when the BIG-IP processes such packets?

  A. The BIG-IP would drop the request since the traffic didn't arrive destined to the NAT address.
  B. The source address would not change, but the destination address would be changed to the NAT address.
  C. The source address would be changed to the NAT address and destination address would be left unchanged.
  D. The source address would not change, but the destination address would be changed to a self-IP of the BIG-IP.
  C. The source address would be changed to the NAT address and destination address would be left unchanged.
