F5 201 Online Practice Questions and Exam Preparation

F5 201 Online Questions & Answers

• Question 161:

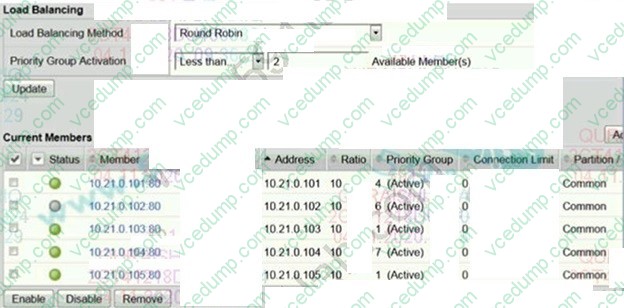

  Refer to the exhibit.



  Which two pool members are eligible to receive new connections? (Choose two)

  A. 10.21.0.102.80
  B. 10.21.0.104.80
  C. 10.21.0.105.80
  D. 10.21.0.101.80
  E. 10.21.0.103.80
  B. 10.21.0.104.80
  D. 10.21.0.101.80

• Question 162:

  Which statement is true about the synchronization process, as performed by the Configuration Utility or by typing b config sync all?

  A. The process should always be run from the standby system.
  B. The process should always be run from the system with the latest configuration.
  C. The two /config/bigip.conf configuration files are synchronized (made identical) each time the process is run.
  D. Multiple files, including /config/bigip.conf and /config/bigip_base.conf, are synchronized (made identical) each time the process is run.
  C. The two /config/bigip.conf configuration files are synchronized (made identical) each time the process is run.

• Question 163:

  A BIG-IP Administrator is configuring a pool with members who have differing capabilities. Connections to pool members must be load balanced appropriately.

  Which load balancing method should the BIG-IP Administrator use?

  A. Least Sessions
  B. Least Connections (member)
  C. Fastest (node)
  D. Weighted Least Connections (member)
  D. Weighted Least Connections (member)

• Question 164:

  A BIG-IP Administrator is unable to connect to the management interface via HTTPS. What is a possible reason for this issue?

  A. The port lockdown setting is configured to Allow None.
  B. An incorrect management route is specified.
  C. The IP address of the device used to access the management interface is NOT included in the "P Allow" list in the Configuration Utility.
  D. The IP address of the device used to access the management interface is NOT included in the "httpd Allow" list in the CLI.
  D. The IP address of the device used to access the management interface is NOT included in the "httpd Allow" list in the CLI.

• Question 165:

  Generally speaking, should the monitor templates be used as production monitors or should they be customized prior to use.

  A. Most templates, such as http and tcp, are as effective as customized monitors.
  B. Monitor template customization is only a matter of preference, not an issue of effectiveness or performance.
  C. Most templates, such as https, should have the receive rule customized to make the monitor more robust.
  D. While some templates, such as ftp, must be customized, those that can be used without modification are not improved by specific changes.
  C. Most templates, such as https, should have the receive rule customized to make the monitor more robust.

• Question 166:

  A BIG-IP Administrator finds the following log entry after a report of user issues connecting to a virtual server:

  01010201: 2: Inet port exhaustion on 10.70.110.112 to 192.28.123.250:80 (proto 6)

  How should the BIG-IP Administrator modify the SNAT pool that is associated with the virtual server?

  A. Remove the SNAT pool and apply SNAT Automap.
  B. Remove an IP address from the SNAT pool.
  C. Add an address to the SNAT pool.
  D. Increase the timeout of the SNAT addresses.
  C. Add an address to the SNAT pool.

• Question 167:

  A BIG-IP Administrator configures remote authentication and needs to make sure that users can still login even when the remote authentication server is unavailable.

  Which action should the BIG-IP Administrators in the remote authentication configuration to meet this requirement?

  A. Set partition access to "All"
  B. Enable the Fallback to Local option
  C. Configure a remote role grove
  D. Configure a second remote user directory
  B. Enable the Fallback to Local option

• Question 168:

  Assume a BIG-IP has no NATs or SNATs configured. Which two scenarios are possible when client traffic arrives on a BIG-IP that is NOT destined to a self-IP? (Choose two.)

  A. If the destination of the traffic does not match a virtual server, the traffic will be discarded.
  B. If the destination of the traffic does not match a virtual server, the traffic will be forwarded based on routing tables.
  C. If the destination of the traffic matches a virtual server, the traffic will be processed per the virtual server definition.
  D. If the destination of the traffic matches a virtual server, the traffic will be forwarded, but it cannot be loadbalanced since no SNAT has been configured.
  A. If the destination of the traffic does not match a virtual server, the traffic will be discarded.
  C. If the destination of the traffic matches a virtual server, the traffic will be processed per the virtual server definition.

• Question 169:

  A BIG-IP Administrator wants to add a new Self IP to the BIG-IP device. Which item should be assigned to the new Self IP being configured?

  A. Interface
  B. Route
  C. VLAN
  D. Trunk
  C. VLAN

• Question 170:

  A BIG-IP system has the following configuration:

  *

  SNAT is set to Auto Map

  *

  There are two VLANs internal and external

  *

  Default route is pointed to the gateway on external VLAN

  *

  Self P for internal VLAN is 1921.1.2

  *

  Self IP for external VLAN is 192.1.2.2

  *

  Floating IP addresses for internal VLAN is 192.1.1.1

  *

  Floating IP addresses for external VLAN is 192.1.2.1

  *

  The Virtual Server IP address is 192.1.1.100

  Which IP address does the BIG-IP system use first when traffic reaches the servers on the internal VLAN?

  A. 192.1.1.100
  B. 192.1.2.2
  C. 192.1.1.1
  D. 192.1.2.1
  C. 192.1.1.1
