Cisco 200-125 Online Practice Questions and Exam Preparation

Cisco 200-125 Online Questions & Answers

• Question 861:

  Which network topology allows all traffic to flow through a central hub?

  A. bus
  B. star
  C. mesh
  D. ring
  B. star

• Question 862:

  which statement about recovering a password on a cisco router is true ?

  A. it requires physical access to the router
  B. the default reset password is cisco
  C. a factory reset is required if you forget the password
  D. it requires a secure SSL/VPN connection
  A. it requires physical access to the router

• Question 863:

  What is the status of port-channel if LACP is misconfigured?

  A. Forwarding
  B. Enabled
  C. Disabled
  D. Err disabled
  C. Disabled

• Question 864:

  Which command you enter on a switch to display the ip address associated with connected devices?

  A. Show cdp neighbors detail
  B. Show cdp neighbor
  C. Show cdp interface
  D. Show cdp traffic
  A. Show cdp neighbors detail

• Question 865:

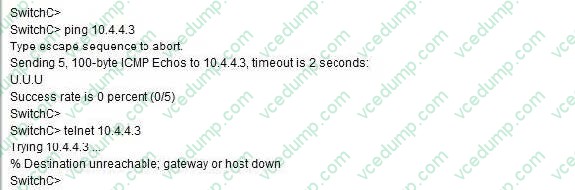

  An administrator is trying to ping and telnet from SwitchC to RouterC with the results shown below.



  Click the console connected to RouterC and issue the appropriate commands to answer the questions.





  What would be the effect of issuing the command ip access-group 114 in to the fa0/0 interface?

  A. Attempts to telnet to the router would fail.
  B. It would allow all traffic from the 10.4.4.0 network.
  C. IP traffic would be passed through the interface but TCP and UDP traffic would not.
  D. Routing protocol updates for the 10.4.4.0 network would not be accepted from the fa0/0 interface.
  B. It would allow all traffic from the 10.4.4.0 network.

  ---

  From the output of access-list 114: access-list 114 permit ip 10.4.4.0 0.0.0.255 any we can easily understand that this access list allows all traffic (ip) from 10.4.4.0/24 network

• Question 866:

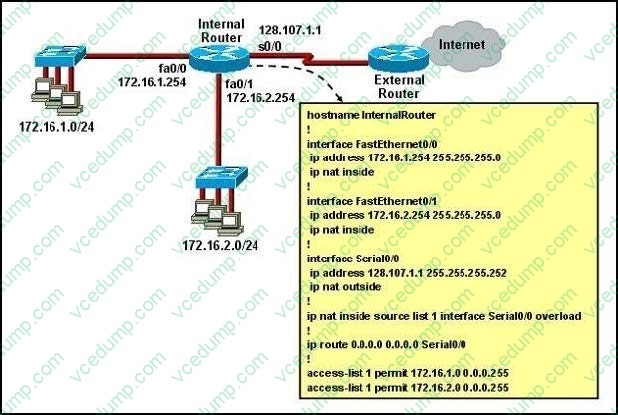

  Refer to the exhibit.



  What statement is true of the configuration for this network?

  A. The configuration that is shown provides inadequate outside address space for translation of the number of inside addresses that are supported.
  B. Because of the addressing on interface FastEthernet0/1, the Serial0/0 interface address will not support the NAT configuration as shown.
  C. The number 1 referred to in the ip nat inside source command references access-list number 1.
  D. ExternalRouter must be configured with static routes to networks 172.16.1.0/24 and 172.16.2.0/24.
  C. The number 1 referred to in the ip nat inside source command references access-list number 1.

  ---

  The "list 1 refers to the access-list number 1.

• Question 867:

  Which statement is a Cisco best practice for switch port security?

  A. Vacant switch ports must be shut down.
  B. Empty ports must be enabled in VLAN 1.
  C. VLAN 1 must be configured as the native VLAN.
  D. Err-disabled ports must be configured to automatically re-enable.
  A. Vacant switch ports must be shut down.

• Question 868:

  Which NAT command can be applied to an interface?

  A. ip nat inside
  B. ip nat inside test access-list-number pool pool-name
  C. ip nat inside source static 10.10.10.010.10.10.50
  D. ip nat pool test 10.10.10.0 10.10.10.50 255.255.255.0
  A. ip nat inside

• Question 869:

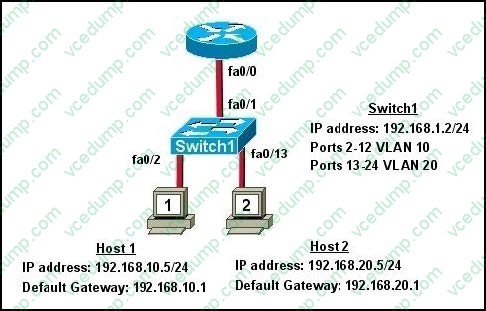

  Refer to the exhibit.



  What commands must be configured on the 2950 switch and the router to allow communication between host 1 and host 2? (Choose two.)

  A. Router(config)# interface fastethernet 0/0 Router(config-if)# ip address 192.168.1.1 255.255.255.0 Router(config-if)# no shut down
  B. Router(config)# interface fastethernet 0/0 Router(config-if)# no shut down Router(config)# interface fastethernet 0/0.1 Router(config-subif)# encapsulation dot1q 10 Router(config-subif)# ip address 192.168.10.1 255.255.255.0 Router(config)# interface fastethernet 0/0.2 Router(config-subif)# encapsulation dot1q 20 Router(config-subif)# ip address 192.168.20.1 255.255.255.0
  C. Router(config)# router eigrp 100 Router(config-router)# network 192.168.10.0 Router(config-router)# network 192.168.20.0
  D. Switch1(config)# vlan database Switch1(config-vlan)# vtp domain XYZ Switch1(config-vlan)# vtp server
  E. Switch1(config)# interface fastethernet 0/1 Switch1(config-if)# switchport mode trunk
  F. Switch1(config)# interface vlan 1 Switch1(config-if)# ip default-gateway 192.168.1.1
  B. Router(config)# interface fastethernet 0/0 Router(config-if)# no shut down Router(config)# interface fastethernet 0/0.1 Router(config-subif)# encapsulation dot1q 10 Router(config-subif)# ip address 192.168.10.1 255.255.255.0 Router(config)# interface fastethernet 0/0.2 Router(config-subif)# encapsulation dot1q 20 Router(config-subif)# ip address 192.168.20.1 255.255.255.0
  E. Switch1(config)# interface fastethernet 0/1 Switch1(config-if)# switchport mode trunk

  ---

  The router will need to use subinterfaces, where each subinterface is assigned a VLAN and IP address for each VLAN. On the switch, the connection to the router need to be configured as a trunk using the switchport mode trunk command and it will need a default gateway for VLAN 1.

• Question 870:

  Which two link protocols are used to carry multiple VLANs over a single link? (Choose two.)

  A. VTP
  B. 802.1q
  C. IGP
  D. ISL
  E. 802.3u
  B. 802.1q
  D. ISL

  ---

  Cisco switches can use two different encapsulation types for trunks, the industry standard 802.1q or the Cisco proprietary ISL. Generally, most network engineers prefer to use 802.1q since it is standards based and will interoperate with other vendors.
