Cisco 200-125 Online Practice Questions and Exam Preparation

Cisco 200-125 Online Questions & Answers

• Question 501:

  Which two statements about static routing are true? (Choose two )

  A. It provides only limited security unless the administrator performs additional configuration
  B. Its default administrative distance is lower than EIGRP.
  C. It allows packets to transit a different path if the topology changes
  D. It allows the administrator to determine the entire path of a packet
  E. Its initial implementation is more complex than OSPF.
  B. Its default administrative distance is lower than EIGRP.
  D. It allows the administrator to determine the entire path of a packet

• Question 502:

  Which type of EIGRP route entry describes a feasible successor?

  A. a backup route, stored in the routing table
  B. a primary route, stored in the routing table
  C. a backup route, stored in the topology table
  D. a primary route, stored in the topology table
  C. a backup route, stored in the topology table

  ---

  EIGRP uses the Neighbor Table to list adjacent routers. The Topology Table list all the learned routers to destination whilst the Routing Table contains the best route to a destination, which is known as the Successor. The Feasible Successor is a backup route to a destination which is kept in the Topology Table.

• Question 503:

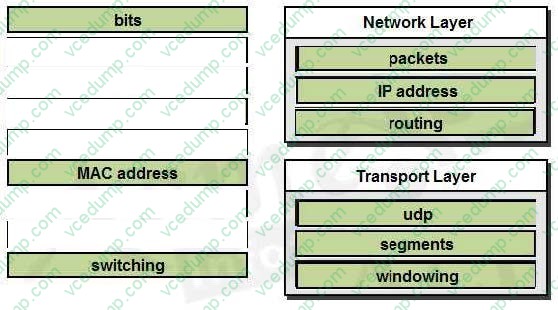

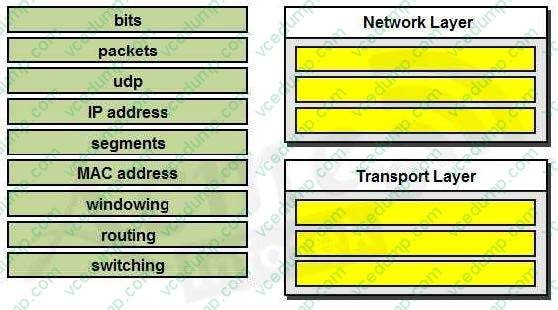

  Match the items on the left with appropriate OSI layer on the right. (Not all options are used.)

  Select and Place:





• Question 504:

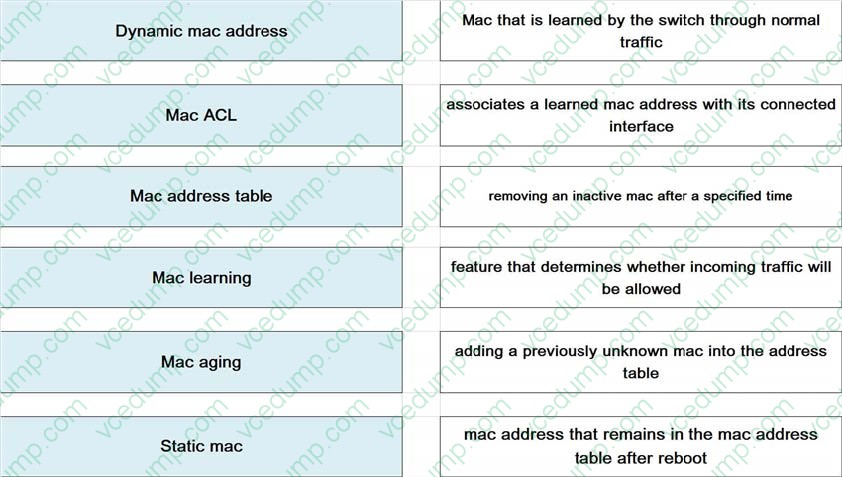

  Drag and Drop

  Select and Place:





• Question 505:

  If three devices are plugged into one port on a switch and two devices are plugged into a different port, how many collision domains are on the switch?

  A. 2
  B. 4
  C. 5
  D. 6
  A. 2

• Question 506:

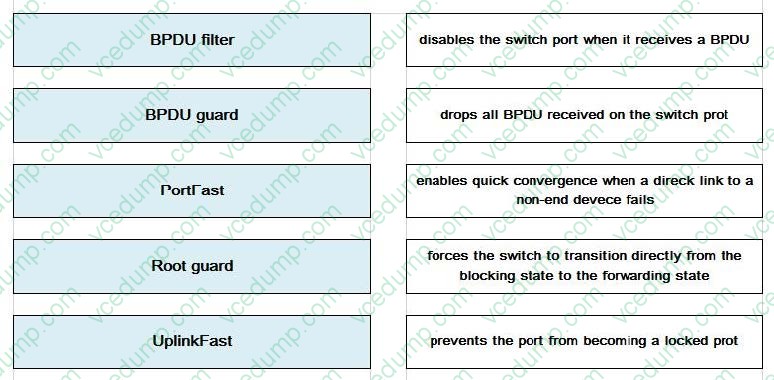

  Drag and Drop.

  Drag each definition on the left to the matching term on the right.

  Select and Place:





• Question 507:

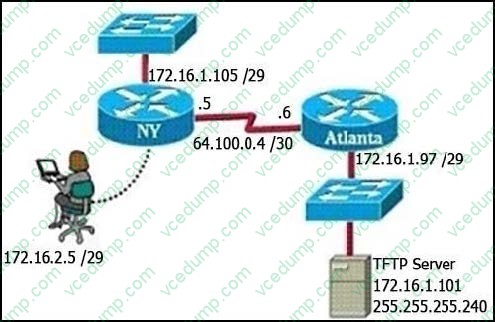

  Refer to the exhibit.



  A TFTP server has recently been instated in the Atlanta office. The network administrator is located in the NY office and has made a console connection to the NY router. After establishing the connection they are unable to backup the configuration file and iOS of the NY router to the TFTP server. What is the cause of this problem?

  A. The TFTP server has an incorrect subnet mask.
  B. The TFTP server has an incorrect IP address.
  C. The network administrator computer has an incorrect IP address.
  D. The NY router has an incorrect subnet mask.
  A. The TFTP server has an incorrect subnet mask.

• Question 508:

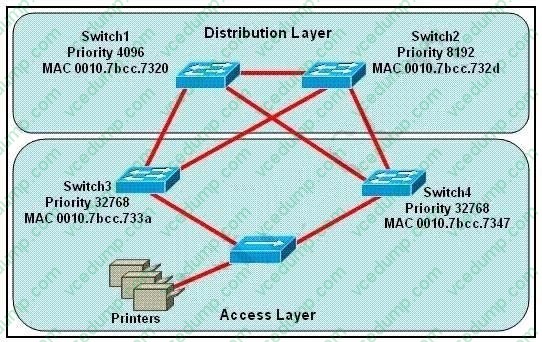

  Refer to the exhibit.



  Which switch provides the spanning-tree designated port role for the network segment that services the printers?

  A. Switch1
  B. Switch2
  C. Switch3
  D. Switch4
  C. Switch3

  ---

  Printers are connected by hubs. Decide the switch that provides the spanning-tree designated port role between Switch3 and Switch4. They have the same priority 32768. Compare their MAC addresses. Switch3 with a smaller MAC address will provide a designated port for printers.

• Question 509:

  What will be the result if the following configuration commands are implemented on a Cisco switch? Switch(config-if)# switchport port-security Switch(config-if)# switchport port-security mac-address sticky

  A. A dynamically learned MAC address is saved in the startup-configuration file.
  B. A dynamically learned MAC address is saved in the running-configuration file.
  C. A dynamically learned MAC address is saved in the VLAN database.
  D. Statically configured MAC addresses are saved in the startup-configuration file if frames from that address are received.
  E. Statically configured MAC addresses are saved in the running-configuration file if frames from that address are received.
  B. A dynamically learned MAC address is saved in the running-configuration file.

  ---

  In the interface configuration mode, the command switchport port-security mac-address sticky enables sticky learning. When entering this command, the interface converts all the dynamic secure MAC addresses to sticky secure MAC addresses.

• Question 510:

  Which version of SNMP first allowed user-based access?

  A. SNMPv3 with RBAC
  B. SNMPv3
  C. SNMPv1
  D. SNMPv2
  B. SNMPv3
