• Question 21:

  Which task should you perform before you use the APIC-EM Path Trace tool to perform ACL analysis?

  A. Verify that DNS is configured on the controller
  B. Configure the IP address from which to generate the trace
  C. Verify that the device of interest are included in the device inventory
  D. Execute a standard traceroute to the destination
  C. Verify that the device of interest are included in the device inventory

• Question 22:

  Which two results occur when the ipv6 enable command is entered? (Choose two)

  A. An IPv6 EUI-64 interface ID is configured automatically on the interface.
  B. IPv6 is enabled on a single interface.
  C. An IPv6 link-local unicast address is configured automatically on the interface.
  D. The administrator is prompted to configure an IP address on the interface
  E. IPv6 is enabled globally on the device.
  B. IPv6 is enabled on a single interface.
  C. An IPv6 link-local unicast address is configured automatically on the interface.

• Question 23:

  What is true about Ethernet? (Choose Two.)

  A. 802.2 Protocol
  B. 802.3 Protocol
  C. 10BaseT half duplex
  D. CSMA/CD Stops transmitting when congestion occurs
  E. CSMA/CA Stops transmitting when congestion occurs
  B. 802.3 Protocol
  D. CSMA/CD Stops transmitting when congestion occurs

• Question 24:

  Which option must occur before a workstation can exchange HTTP packets with a web server?

  A. An ICMP connection must be established between the workstation and the web server.
  B. A UDP connection must be established between the workstation and its default gateway.
  C. A TCP connection must be established between the workstation and its default gateway.
  D. A UDP connection must be established between the workstation and the web server.
  E. An ICMP connection must be established between the workstation and its default gateway.
  F. A TCP connection must be established between the workstation and the web server.
  F. A TCP connection must be established between the workstation and the web server.

• Question 25:

  Which two statements about EIGRP on IPv6 networks are true? (Choose two)

  A. it is globally configured
  B. it is configured on the interface
  C. it supports a shutdown feature
  D. it is configured using a network statement
  E. it is a vendor agnostic.
  B. it is configured on the interface
  C. it supports a shutdown feature

  ---

  https://www.cisco.com/c/en/us/support/docs/ip/enhanced-interior-gateway-routing-protocol-eigrp/113267-eigrp-ipv6-00.html

• Question 26:

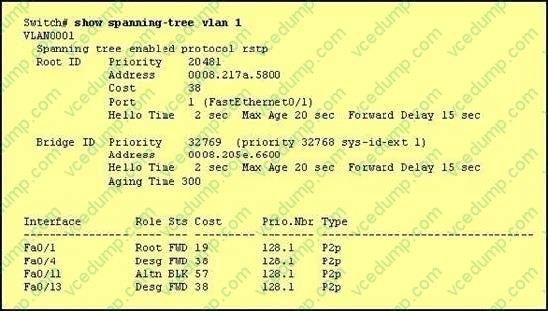

  Refer to the exhibit.



  Why has this switch not been elected the root bridge for VLAN1?

  A. It has more than one interface that is connected to the root network segment.
  B. It is running RSTP while the elected root bridge is running 802.1d spanning tree.
  C. It has a higher MAC address than the elected root bridge.
  D. It has a higher bridge ID than the elected root bridge.
  D. It has a higher bridge ID than the elected root bridge.

  ---

  The root bridge is determined by the lowest bridge ID, and this switch has a bridge ID priority of 32768, which is higher than the roots priority of 20481.

• Question 27:

  Which command do you enter to view EIGRPv6 adjacencies?

  A. show ipv6 eigrp 1 interface
  B. show ipv6 route eigrp
  C. showipv6 eigrp neighbors
  D. show running-configuration eigrp
  C. showipv6 eigrp neighbors

• Question 28:

  Which command allows you to verify the encapsulation type (CISCO or IETF) for a Frame Relay link?

  A. show frame-relay lmi
  B. show frame-relay map
  C. show frame-relay pvc
  D. show interfaces serial
  B. show frame-relay map

  ---

  When connecting Cisco devices with non-Cisco devices, you must use IETF4 encapsulation on both devices. Check the encapsulation type on the Cisco device with the show frame-relay map exec command.

• Question 29:

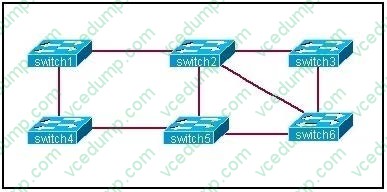

  Based on the network shown in the graphic



  Which option contains both the potential networking problem and the protocol or setting that should be used to prevent the problem?

  A. routing loops, hold down timers
  B. switching loops, split horizon
  C. routing loops, split horizon
  D. switching loops, VTP
  E. routing loops, STP
  F. switching loops, STP
  F. switching loops, STP

  ---

  The Spanning-Tree Protocol (STP) prevents loops from being formed when switches or bridges are interconnected via multiple paths. Spanning-Tree Protocol implements the 802.1D IEEE algorithm by exchanging BPDU messages with other switches to detect loops, and then removes the loop by shutting down selected bridge interfaces. This algorithm guarantees that there is one and only one active path between two network devices.

• Question 30:

  Which option is the benefit of implementing an intelligent DNS for a cloud computing solution?

  A. It reduces the need for a backup data center.
  B. It can redirect user requests to locations that are using fewer network resources.
  C. It enables the ISP to maintain DNS records automatically.
  D. It eliminates the need for a GSS.
  B. It can redirect user requests to locations that are using fewer network resources.
