• Question 191:

  Which command can you enter to create a NAT Pool of 6 addresses ?

  A. Router(config)#ip nat pool test 175.17.12.69 175.17.12.74 prefix-length 24
  B. Router(config)#ip nat pool test 175.17.12.66 175.17.12.72 prefix-length 8
  C. Router(config)#ip nat pool test 175.17.12.69 175.17.12.74 prefix-length 16
  D. Router(config)#ip nat pool test 175.17.12.69 175.17.12.76 prefix-length 8
  A. Router(config)#ip nat pool test 175.17.12.69 175.17.12.74 prefix-length 24

• Question 192:

  which two types of information are held in the mac address table ?

  A. destination ip addresses
  B. protocols
  C. port numbers
  D. mac address E. source ip address
  C. port numbers
  D. mac address E. source ip address

• Question 193:

  Which type of device should you use to preserve IP addresses on your network?

  A. firewall
  B. WLAN controller
  C. load balancer
  D. intrusion prevention device
  A. firewall

• Question 194:

  Which two statements about firewalls are true ?

  A. They can be used with an intrusion prevention system.
  B. They can limit unauthorized user access to protect data.
  C. Each wireless access point requires its own firewall.
  D. They must be placed only at locations where the private network connects to the internet.
  E. They can prevent attacks from the internet only.
  A. They can be used with an intrusion prevention system.
  B. They can limit unauthorized user access to protect data.

• Question 195:

  What routing protocol use first-hand information?

  A. link-state
  B. distance-vector
  C. path-vector
  A. link-state

• Question 196:

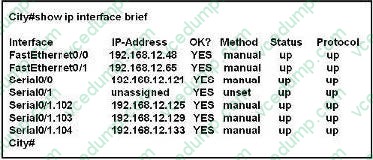

  Refer to the exhibit.



  A network associate has configured OSPF with the command: City(config-router)# network 192.168.12.64 0.0.0.63 area 0 After completing the configuration, the associate discovers that not all the interfaces are participating in OSPF. Which three of the interfaces shown in the exhibit will participate in OSPF according to this configuration statement? (Choose

  three.)

  A. FastEthernet0 /0
  B. FastEthernet0 /1
  C. Serial0/0
  D. Serial0/1.102
  E. Serial0/1.103
  F. Serial0/1.104
  B. FastEthernet0 /1
  C. Serial0/0
  D. Serial0/1.102

  ---

  The "network 192.168.12.64 0.0.0.63 equals to network 192.168.12.64/26. This network has:

  +

  Increment: 64 (/26= 1111 1111.1111 1111.1111 1111.1100 0000) + Network address: 192.168.12.64

  +

  Broadcast address: 192.168.12.127

  Therefore all interfaces in the range of this network will join OSPF.

• Question 197:

  A switch is configured with all ports assigned to VLAN 2 with full duplex FastEthernet to segment existing departmental traffic. What is the effect of adding switch ports to a new VLAN on the switch?

  A. More collision domains will be created.
  B. IP address utilization will be more efficient.
  C. More bandwidth will be required than was needed previously.
  D. An additional broadcast domain will be created.
  D. An additional broadcast domain will be created.

  ---

  Each VLAN creates its own broadcast domain. Since this is a full duplex switch, each port is a separate collision domain.

• Question 198:

  What are two reasons to use multicast to deliver video traffic, instead of unicast or broadcas?(choose two)

  A. it provides reliable TCP transport
  B. it enables multiple clients to receive the video stream simultaneously
  C. it enables multiple servers to send video streams simultaneously
  D. it enables multiple clients to send video streams simultaneously
  E. it supports distributed applications
  B. it enables multiple clients to receive the video stream simultaneously
  E. it supports distributed applications

• Question 199:

  What type of MAC address is aged automatically by the switch?

  A. Dynamic
  B. Manual
  C. Automatic
  D. Static
  A. Dynamic

  ---

  Reference: http://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus5000/sw/configuration/guid e/cli/ CLIConfigurationGuide/MACAddress.htm

• Question 200:

  How Eigrp for ipv6 configuration done? (Choose two)

  A. uses process number
  B. neighbor configured directly
  C. configured driectly on interface
  D. configured globally interface
  E. have shutdown feature
  C. configured driectly on interface
  E. have shutdown feature
