Cisco 200-125 Online Practice Questions and Exam Preparation

Cisco 200-125 Online Questions & Answers

• Question 131:

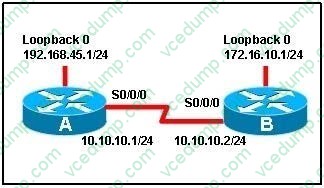

  Refer to the exhibit.



  When running OSPF, what would cause router A not to form an adjacency with router B?

  A. The loopback addresses are on different subnets.
  B. The values of the dead timers on the routers are different.
  C. Route summarization is enabled on both routers.
  D. The process identifier on router A is different than the process identifier on router B.
  B. The values of the dead timers on the routers are different.

  ---

  To form an adjacency (become neighbor), router A and B must have the same Hello interval, Dead interval and AREA numbers

• Question 132:

  Which two statements about Cisco Discovery Protocol are true?(Choose two)

  A. It is used to initiate a VTP server and cient relationship.
  B. It uses SNMP to share device information to an external server.
  C. It runs on the network layer and the data link layer.
  D. It runs on the data link layer only.
  E. It uses TLVs to share device information.
  D. It runs on the data link layer only.
  E. It uses TLVs to share device information.

• Question 133:

  Which three statements about DTP are true? (Choose three.)

  A. It is enabled by default.
  B. It is a universal protocol.
  C. It is a proprietary protocol.
  D. It is disabled by default.
  E. It is a Layer 3-based protocol.
  F. It is a Layer 2-based protocol.
  A. It is enabled by default.
  C. It is a proprietary protocol.
  F. It is a Layer 2-based protocol.

• Question 134:

  What is the benefit of point-to-point leased line ?

  A. Low cost
  B. Full-mesh capability
  C. Flexibillity of design
  D. Simply configuration
  D. Simply configuration

• Question 135:

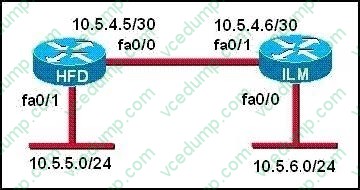

  Refer to the graphic.



  A static route to the 10.5.6.0/24 network is to be configured on the HFD router. Which commands will accomplish this? (Choose two.)

  A. HFD(config)# ip route 10.5.6.0 0.0.0.255 fa0/0
  B. HFD(config)# ip route 10.5.6.0 0.0.0.255 10.5.4.6
  C. HFD(config)# ip route 10.5.6.0 255.255.255.0 fa0/0
  D. HFD(config)# ip route 10.5.6.0 255.255.255.0 10.5.4.6
  E. HFD(config)# ip route 10.5.4.6 0.0.0.255 10.5.6.0
  F. HFD(config)# ip route 10.5.4.6 255.255.255.0 10.5.6.0
  C. HFD(config)# ip route 10.5.6.0 255.255.255.0 fa0/0
  D. HFD(config)# ip route 10.5.6.0 255.255.255.0 10.5.4.6

  ---

  The simple syntax of static route:

  ip route destination-network-address subnet-mask {next-hop-IP-address | exit-interface} + destination-network-address: destination network address of the remote network + subnet mask: subnet mask of the destination network + next-hopIP-address: the IP address of the receiving interface on the next-hop router + exit-interface: the local interface of this router where the packets will go out In the statement "ip route 10.5.6.0 255.255.255.0 fa0/0:

  + 10.5.6.0 255.255.255.0: the destination network +fa0/0: the exit-interface

• Question 136:

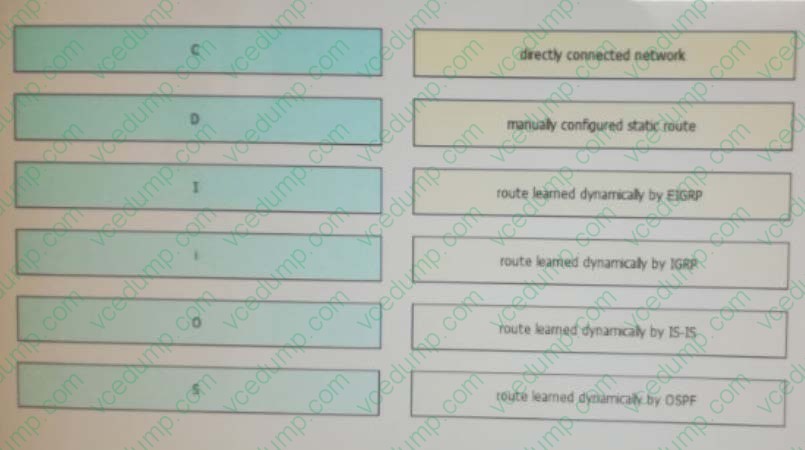

  Drag and drop the route source codes in a routing table from the left onto the correct meanings on the right.

  Select and Place:





• Question 137:

  A network administrator needs to allow only one Telnet connection to a router. For anyone viewing the configuration and issuing the show run command, the password for Telnet access should be encrypted. Which set of commands will accomplish this task?

  A. service password-encryption access-list 1 permit 192.168.1.0 0.0.0.255 line vty 0 4 login password cisco access-class 1
  B. enable password secret line vty 0 login password cisco
  C. service password-encryption line vty 1 login password cisco
  D. service password-encryption line vty 0 4 login password cisco
  C. service password-encryption line vty 1 login password cisco

  ---

  Only one VTY connection is allowed which is exactly what's requested.

  Incorrect answer: command.

  line vty0 4

  would enable all 5 vty connections.

• Question 138:

  Which command can you use to test whether a switch supports secure connections and strong authentication?

  A. Switch>ssh -v 1-I admin 10.1.1.1
  B. Router#ssh -v1 -I admin 10.1.1.1
  C. Router>ssh -v2 -I admin 10.1.1.1
  D. Switch#ssh -v admin 10.1.1.1
  C. Router>ssh -v2 -I admin 10.1.1.1

• Question 139:

  Which protocol advertises a virtual IP address to facilitate transparent failover of a Cisco routing device?

  A. FHRP
  B. DHCP
  C. RSMLT
  D. ESRP
  A. FHRP

• Question 140:

  How is provided master redundancy on a stacked switches?

  A. 1:N
  B. N:1
  C. 1:1
  D. 1+N
  A. 1:N
