Cisco 200-125 Online Practice Questions and Exam Preparation

Cisco 200-125 Online Questions & Answers

• Question 1211:

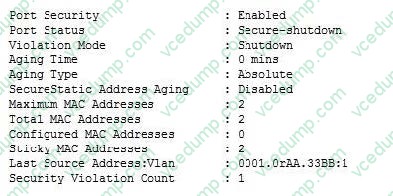

  Refer to the exhibit.

  Which two statements about the interface that generated the output are true? (Choose two)

  A. Two secure MAC address are manually configured on the interface.
  B. A syslog message is generated when the maximum number of secure MAC addresses is on the interface
  C. The interface is error -disabled.
  D. The interface dynamic ally learned two secure MAC addresses
  E. An SNMP trap is generated when the maximum number of secure MAC addresses is reached on the interface
  D. The interface dynamic ally learned two secure MAC addresses
  E. An SNMP trap is generated when the maximum number of secure MAC addresses is reached on the interface

• Question 1212:

  Which statement about using MPLS for WAN connectivity is true?

  A. it cannot be deployed using a single carrier.
  B. It can be deployed in redundant and nonredundant topologies.
  C. It can be deployed using LAN aggregation.
  D. It must be deployed in a redundant topology.
  A. it cannot be deployed using a single carrier.

• Question 1213:

  Which mode is compatible with Trunk, Access, and desirable ports?

  A. Trunk Ports
  B. Access Ports
  C. Dynamic Auto
  D. Dynamic Desirable
  C. Dynamic Auto

  ---

  Explanation:

  The 'dynamic auto' will configure the port to accept incoming negotiation and will accept becoming either a trunk or an access port. Dynamic Auto allows the port to negotiate DTP (Dynamic Trunking Protocol) if the other side is set to trunk or

  desirable. Otherwise it will become an access port.

• Question 1214:

  On which OSI layer does a VLAN operate?

  A. Layer 1
  B. Layer 2
  C. Layer 3
  D. Layer 4
  B. Layer 2

• Question 1215:

  Router R1 has a static router that is configured to a destination network. A directly connected inference is

  configured with an ip address in the same destination network . which statement about R1 is true ?

  A. It refuses to advertise the dynamic route to other neighbors
  B. It sends a withdrawal signal to the neighboring router
  C. It disables the routing protocol
  D. It prefers the static route
  D. It prefers the static route

• Question 1216:

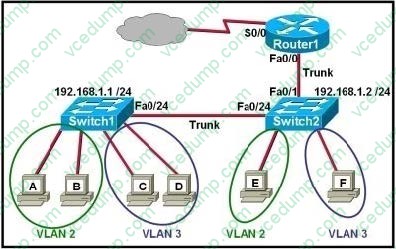

  Refer to the exhibit.



  Which two statements are true about interVLAN routing in the topology that is shown in the exhibit? (Choose two.)

  A. Host E and host F use the same IP gateway address.
  B. Router1 and Switch2 should be connected via a crossover cable.
  C. Router1 will not play a role in communications between host A and host D.
  D. The FastEthernet 0/0 interface on Router1 must be configured with subinterfaces.
  E. Router1 needs more LAN interfaces to accommodate the VLANs that are shown in the exhibit.
  F. The FastEthernet 0/0 interface on Router1 and the FastEthernet 0/1 interface on Switch2 trunk ports must be configured using the same encapsulation type.
  D. The FastEthernet 0/0 interface on Router1 must be configured with subinterfaces.
  F. The FastEthernet 0/0 interface on Router1 and the FastEthernet 0/1 interface on Switch2 trunk ports must be configured using the same encapsulation type.

  ---

  In order for multiple VLANs to connect to a single physical interface on a Cisco router, subinterfaces must be used, one for each VLAN. This is known as the router on a stick configuration. Also, for any trunk to be formed, both ends of the trunk must agree on the encapsulation type, so each one must be configured for 802.1q or ISL.

• Question 1217:

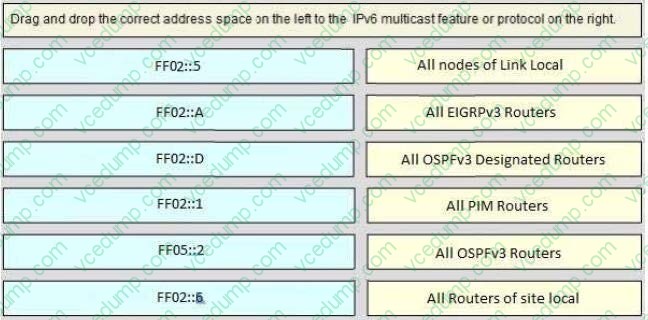

  Drag and drop the correct address space on the left to the IPv6 multicast feature or protocol on the right.

  Select and Place:





  ---

  FF01::1 ————— All nodes (node-local)

  FF01::2 ————— All routers (node-local)

  FF02::1 ————— All nodes (link-local)

  FF02::2 ————— All routers (link-local)

  FF02::5 ————— OSPFv3 routers

  FF02::6 ————— OSPFv3 designated routers

  FF02::9 ————— Routing Information Protocol (RIPng)

  FF02::A ————— EIGRP routers

  FF02::B ————— Mobile agents

  FF02::C ————— SSDP

  FF02::D ————— All PIM routers

  FF05::2 ————— All routers (site-local)

  Extra Choice ————— DHCP servers/relay agents (FF05::1:3)

• Question 1218:

  Which routing protocol has the smallest default administrative distance?

  A. IBGP
  B. OSPF
  C. IS-IS
  D. EIGRP
  E. RIP
  D. EIGRP

  ---

  Explanation: http://www.cisco.com/c/en/us/support/docs/ip/border-gateway-protocol- bgp/15986-admin-distance.html Default Distance Value TableThis table lists the administrative distance default values of the protocols that Cisco supports: Route Source Default Distance Values Connected interface Static route Enhanced Interior Gateway Routing Protocol (EIGRP) summary route External Border Gateway Protocol (BGP) Internal EIGRP IGRP OSPF Intermediate System-to-Intermediate System (IS-IS) Routing Information Protocol (RIP) Exterior Gateway Protocol (EGP) On Demand Routing (ODR) External EIGRP Internal BGP Unknown*

• Question 1219:

  How to verify SSH connections was secured?

  A. ssh -v 1 -l admin IP
  B. ssh -v 2 -l admin IP
  C. ssh -l admin IP
  B. ssh -v 2 -l admin IP

• Question 1220:

  Which command reveals the last method used to powercycle a router?

  A. show reload
  B. show boot
  C. show running-config
  D. show version
  D. show version

  ---

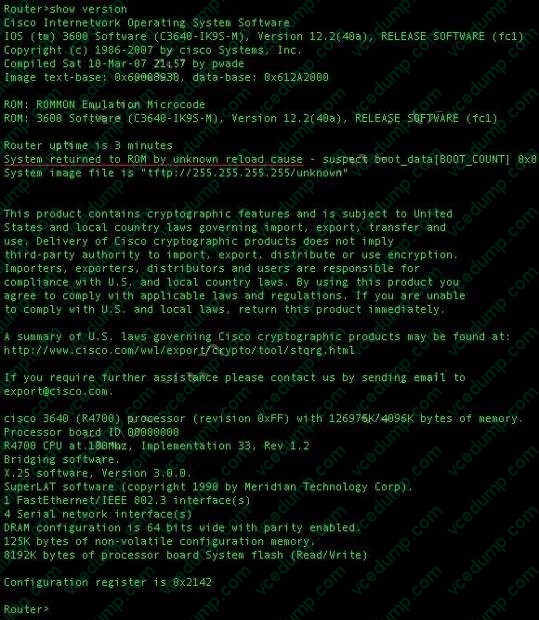

  The "show version" command can be used to show the last method to powercycle (reset) a router.
