Cisco 200-120 Online Practice Questions and Exam Preparation

Cisco 200-120 Online Questions & Answers

• Question 361:

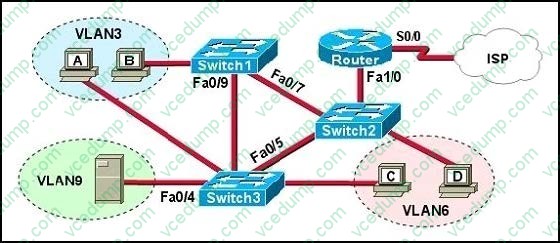

  Refer to the exhibit.



  A problem with network connectivity has been observed. It is suspected that the cable connected to switch port Fa0/9 on Switch1 is disconnected. What would be an effect of this cable being disconnected?

  A. Host B would not be able to access the server in VLAN9 until the cable is reconnected.
  B. Communication between VLAN3 and the other VLANs would be disabled.
  C. The transfer of files from Host B to the server in VLAN9 would be significantly slower.
  D. For less than a minute, Host B would not be able to access the server in VLAN9. Then normal network function would resume.
  D. For less than a minute, Host B would not be able to access the server in VLAN9. Then normal network function would resume.

  ---

  Spanning-Tree Protocol (STP) is a Layer 2 protocol that utilizes a special-purpose algorithm to discover physical loops in a network and effect a logical loop-free topology. STP creates a loop-free tree structure consisting of leaves and branches that span the entire Layer 2 network. The actual mechanics of how bridges communicate and how the STP algorithm works will be discussed at length in the following topics. Note that the terms bridge and switch are used interchangeably when discussing STP. In addition, unless otherwise indicated, connections between switches are assumed to be trunks.

• Question 362:

  What is the default administrative distance of OSPF?

  A. 90
  B. 100
  C. 110
  D. 120
  C. 110

  ---

  Administrative distance is the feature that routers use in order to select the best path when there are two or more different routes to the same destination from two different routing protocols. Administrative distance defines the reliability of a

  routing protocol. Each routing protocol is prioritized in order of most to least reliable (believable) with the help of an administrative distance value.

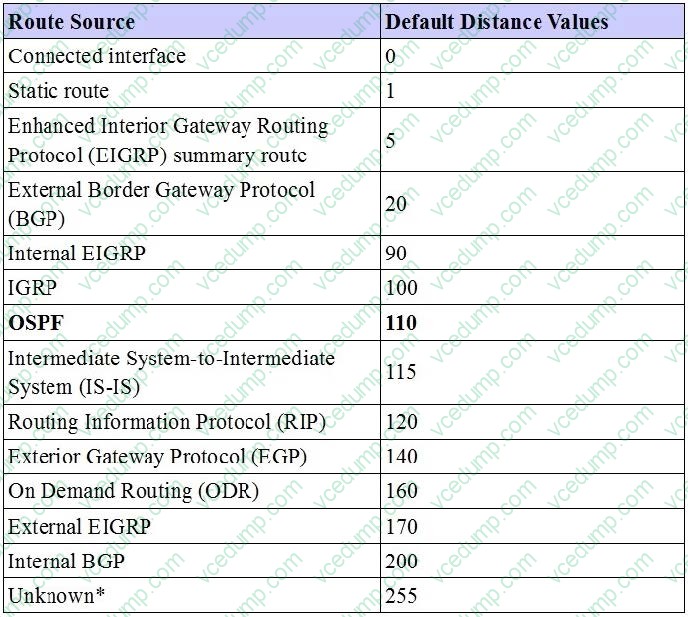

  Default Distance Value Table

  This table lists the administrative distance default values of the protocols that Cisco supports:



• Question 363:

  What is the effect of the overload keyword in a static NAT translation configuration?

  A. It enables port address translation.
  B. It enables the use of a secondary pool of IP addresses when the first pool is depleted.
  C. It enables the inside interface to receive traffic.
  D. It enables the outside interface to forward traffic.
  A. It enables port address translation.

• Question 364:

  What are the Popular destinations for syslog messages to be saved? (Choose three)

  A. Flash
  B. The logging buffer .RAM
  C. The console terminal
  D. Other terminals
  E. Syslog server
  B. The logging buffer .RAM
  C. The console terminal
  E. Syslog server

  ---

  By default, switches send the output from system messages and debug privileged EXEC commands to a logging process. The logging process controls the distribution of logging messages to various destinations, such as the logging buffer (on RAM), terminal lines (console terminal), or a UNIX syslog server, depending on your configuration. The process also sends messages to the console.

  Note: Syslog messages can be written to a file in Flash memory although it is not a popular place to use. We can configure this feature with the command logging file flash:filename.
