Citrix 1Y0-440 Online Practice Questions and Exam Preparation

Citrix 1Y0-440 Online Questions & Answers

• Question 41:

  Scenario: A Citrix Architect needs to design a hybrid XenApp and XenDesktop environment which will include as well as resource locations in an on-premises datacenter and Microsoft Azure.

  Organizational details and requirements are as follows:

  1.

  Active XenApp and XenDesktop Service subscription

  2.

  No existing NetScaler deployment

  3.

  Minimization of additional costs

  4.

  All users should correct directly to the resource locations containing the servers which will host HDX sessions

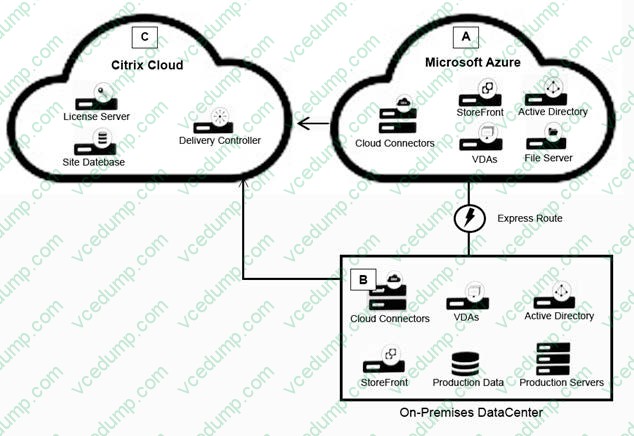

  Click the Exhibit button to view the conceptual environment architecture.



  The architect should use___________ in Location A, and should use _______________ in Location B. (Choose the correct option to complete the sentence.)

  A. No NetScaler products; NetScaler ICA Proxy (cloud-licensed)
  B. NetScaler Gateway as a Service; NetScaler ICA Proxy (cloud-licensed)
  C. NetScaler Gateway as a Service; no NetScaler products
  D. No NetScaler products; NetScaler Gateway appliance
  E. NetScaler gateway as a Service; NetScaler ADC (BYO)
  C. NetScaler Gateway as a Service; no NetScaler products

• Question 42:

  Which three methods can a Citrix Architect use to assess the capabilities of a network infrastructure? (Choose three.)

  A. Review existing monitoring solutions for periods of latency, lost packets, and insufficient bandwidth.
  B. Map the location of the users against the existing network topology.
  C. Alter firewall rules of existing network to fit into the new NetScaler Deployment.
  D. Examine the topology for single points of failure and potential bottlenecks.
  E. Ensure that users and computers are in the correct organizational units (OUs).
  A. Review existing monitoring solutions for periods of latency, lost packets, and insufficient bandwidth.
  B. Map the location of the users against the existing network topology.
  D. Examine the topology for single points of failure and potential bottlenecks.

• Question 43:

  Scenario: A Citrix Architect needs to design a NetScaler deployment in Microsoft Azure. An Active-Passive NetScaler VPX pair will provide load balancing for three distinct web applications. The architect has identified the following requirements:

  1.

  Minimize deployment costs where possible.

  2.

  Provide dedicated bandwidth for each web application.

  3.

  Provide a different public IP address for each web application.

  For this deployment, the architect should configure each NetScaler VPX machine to have ______ network interface(s) and configure IP address by using ________. (Choose the correct option to complete the sentence).

  A. 4; Port Address Translation
  B. 1; Network Address Translation
  C. 1; Port Address Translation
  D. 2; Network Address Translation
  E. 4; Network Address Translation
  F. 2; Port Address Translation
  C. 1; Port Address Translation

• Question 44:

  Scenario: A Citrix Architect needs to assess an existing NetScaler multi-site deployment. The deployment is using Global Server Load Balancing (GSLB) configured in a parent-child configuration.

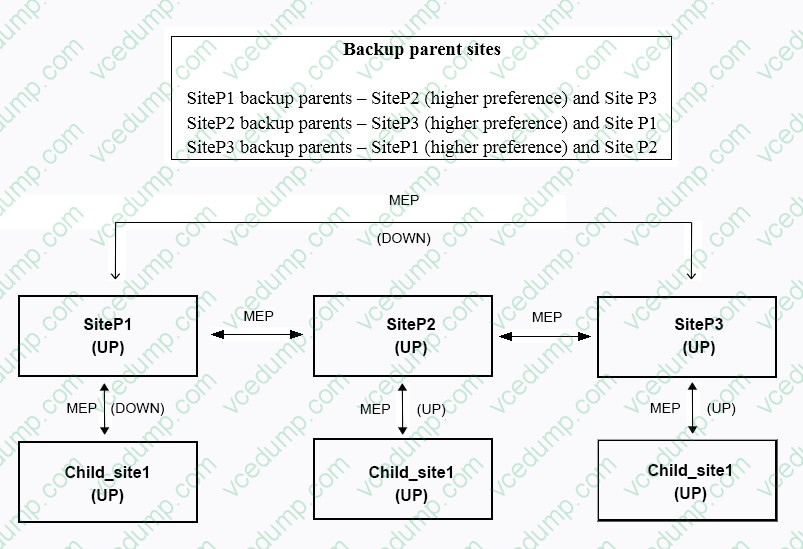

  Click the Exhibit button to view the diagram of the current GSLB configuration and parent-child relationships, as well as the status of the sites and the connectivity between them.



  Based on the displayed configuration and status, Chil_site1_______ a connection from _______. (Choose the correct option to complete the sentence.)

  A. rejects; SiteP2 and SiteP3; remains a child site of SiteP1
  B. rejects; SiteP3; remains a child site of SiteP1
  C. accepts; SiteP3; becomes its child site
  D. accepts; SiteP2; becomes its child site
  E. does NOT receive; SiteP2 and SiteP3; remains a child site of SiteP1
  F. rejects; SiteP2; remains a child site of SiteP1
  E. does NOT receive; SiteP2 and SiteP3; remains a child site of SiteP1

• Question 45:

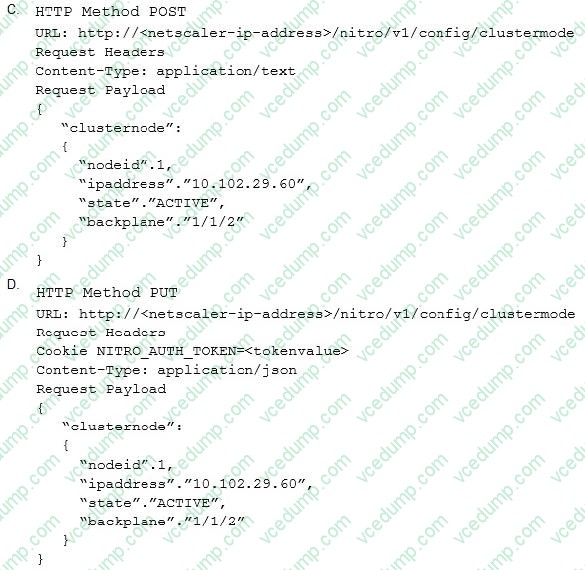

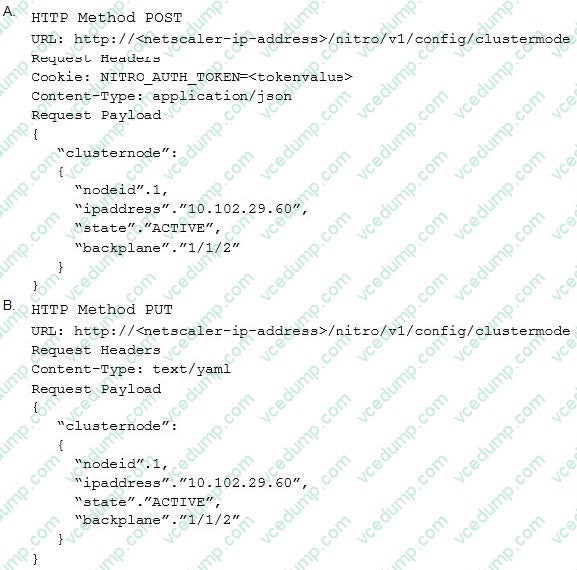

  Which request can a Citrix Architect utilize to create a NITRO API command to add a NetScaler appliance with NSIP address 10.102.29.60 to the cluster?





  A. Option A
  B. Option B
  C. Option C
  D. Option D
  A. Option A

  ---

  Reference: https://developer-docs.citrix.com/projects/netscaler-nitro-api/en/12.0/usecases/

• Question 46:

  Scenario: A Citrix Architect needs to assess an existing on-premises NetScaler deployment which includes Advanced Endpoint Analysis scans. During a previous security audit, the team discovered that certain endpoint devices were able to

  perform unauthorized actions despite NOT meeting pre-established criteria.

  The issue was isolated to several endpoint analysis (EPA) scan settings.

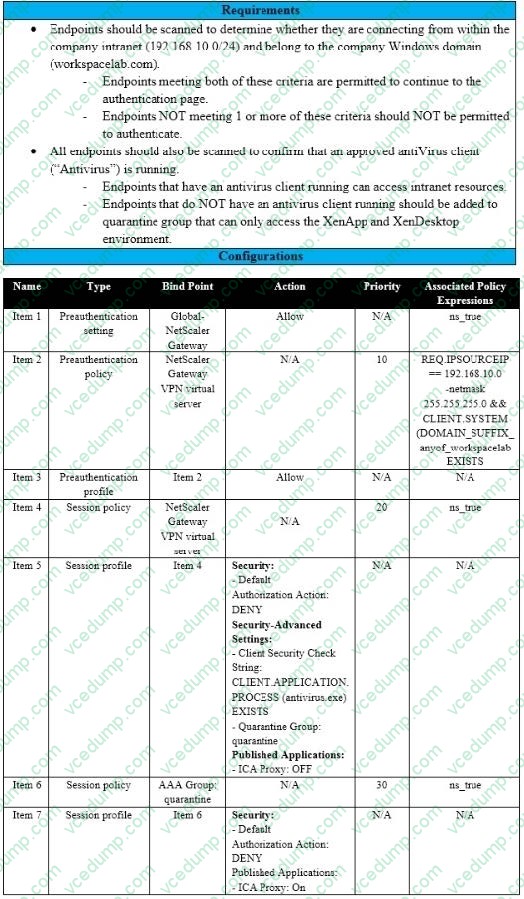

  Click the Exhibit button to view the endpoint security requirements and configured EPA policy settings.



  Which setting is preventing the security requirements of the organization from being met?

  A. Item 6
  B. Item 7
  C. Item 1
  D. Item 3
  E. Item 5
  F. Item 2
  G. Item 4
  F. Item 2

• Question 47:

  Scenario: A Citrix Architect has deployed Authentication for the SharePoint server through NetScaler. In order to ensure that users are able to edit or upload documents, the architect has configured persistent cookies on the NetScaler profile.

  Which action should the architect take to ensure that cookies are shared between the browser and non-browser applications?

  A. The time zone should be the same on the NetScaler, client, and SharePoint server.
  B. The SharePoint load-balancing VIP FQDN and the AAA VIP FQDN should be in the trusted site of the client browser.
  C. The Secure flag must be enabled on the cookie.
  D. The cookie type should be HttpOnly.
  B. The SharePoint load-balancing VIP FQDN and the AAA VIP FQDN should be in the trusted site of the client browser.

  ---

  Reference: https://support.citrix.com/article/CTX209054

• Question 48:

  _________ content type supports sending NITRO commands to NetScaler. (Choose the correct option to complete sentence.)

  A. Application/sgml
  B. Text/html
  C. Application/json
  D. Text/enriched
  B. Text/html

• Question 49:

  Scenario: A Citrix Architect and a team of Workspacelab members have met for a design discussion about the NetScaler Design Project. They captured the following requirements:

  1.

  Two pairs of NetScaler MPX appliances will be deployed in the DMZ network and the internal network.

  2.

  High availability will be accessible between the pair of NetScaler MPX appliances in the DMZ network.

  3.

  Multi-factor authentication must be configured for the NetScaler Gateway virtual server.

  4.

  The NetScaler Gateway virtual server is integrated with XenApp/XenDesktop environment.

  5.

  Load balancing must be deployed for the users from the workspacelab.com and vendorlab.com domains.

  6.

  The logon page must show the workspacelab logo.

  7.

  Certificate verification must be performed to identify and extract the username.

  8.

  The client certificate must have UserPrincipalName as a subject.

  9.

  All the managed workstations for the workspace users must have a client identifications certificate installed on it.

  10.The workspacelab users connecting from a managed workstation with a client certificate on it should be authenticated using LDAP. 11.The workspacelab users connecting from a workstation without a client certificate should be

  authenticated using LDAP and RADIUS.

  12.The vendorlab users should be authenticated using Active Directory Federation Service.

  13.The user credentials must NOT be shared between workspacelab and vendorlab.

  14.Single Sign-on must be performed between StoreFront and NetScaler Gateway.

  15.A domain drop down list must be provided if the user connects to the NetScaler Gateway virtual server externally.

  16.The domain of the user connecting externally must be identified using the domain selected from the domain drop down list.

  On performing the deployment, the architect observes that users are always prompted with two-factor authentication when trying to assess externally from an unmanaged workstation.

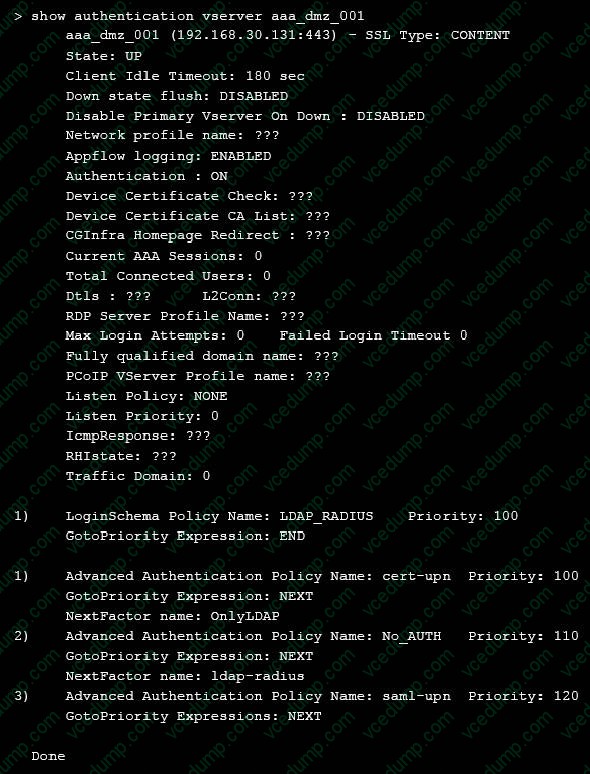

  Click the exhibit button to view the configuration.



  What should the architect do to correct this configuration?

  A. Unbind LoginSchema Policy LDAP_RADIUS from the virtual server.
  B. Bind the Portal theme as Domaindropdown.
  C. Bind the LoginSchema Policy Domaindropdown to priority 90.
  D. Bind the Default LoginSchema Policy as Domaindropdown.
  D. Bind the Default LoginSchema Policy as Domaindropdown.

• Question 50:

  A Citrix Architect can execute a configuration job using a DeployMasterConfiguration template on a NetScaler_________deployed_________. (Choose the correct option to complete sentence.)

  A. CPX; as part of a high availability pair
  B. CPX; as a stand alone device
  C. SDX; with less than 6 partitions and dedicated management interface
  D. MPX; as part of the cluster but Cluster IP is NOT configured
  E. SDX; with no partitions as a stand alone device
  C. SDX; with less than 6 partitions and dedicated management interface
