Citrix 1Y0-402 Online Practice Questions and Exam Preparation

Citrix 1Y0-402 Online Questions & Answers

• Question 71:

  Scenario: A Citrix Architect needs to design a new XenApp and XenDesktop environment for a bank. After the project kickoff meeting, the following business drivers have been identified and prioritized in the following order:

  1.

  Increase security

  2.

  Reduce costs

  3.

  Improve the user experience

  4.

  Simplify management

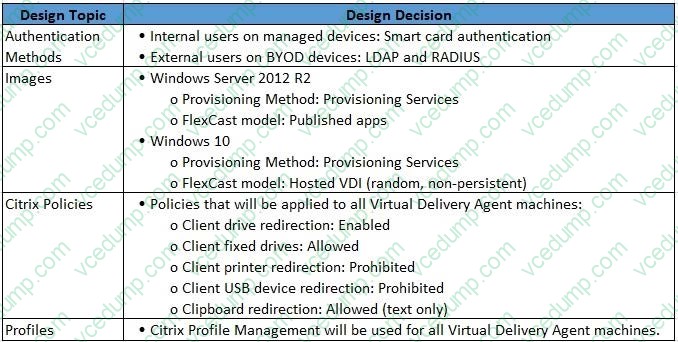

  Later in the design process, the architect documents the design decisions shown in the Exhibit (only some are shown).

  Click the Exhibit button to view the design decisions.



  During the quality assurance review, the architect observes that one of these design decisions does NOT align with the business driver priorities. Which design decision should be changed to match the prioritization of the business drivers?

  A. Images
  B. Profiles
  C. Authentication Methods
  D. Citrix Policies
  D. Citrix Policies

• Question 72:

  Scenario: A Citrix Architect needs to design a new XenApp and XenDesktop environment. While deploying Optimal HDX Routing for the customer, the architect makes the following configurations:

  Authentication Gateway - AuthGW ?Logon.workspace.com - Authentication only New York Gateway - NYCGW ?Nycgw.workspace.com - HDX Routing only San Francisco Gateway - SFOGW ?Sfogw.workspace.com - HDX Routing only

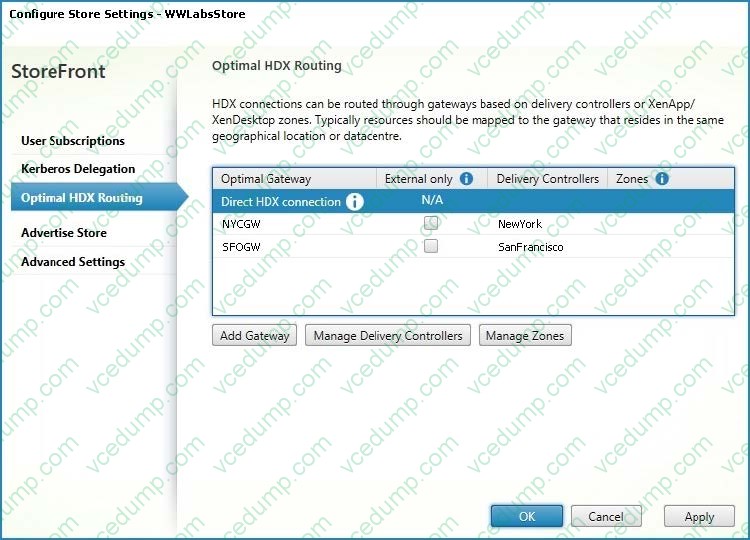

  Click the Exhibit button to view further details about the configuration.



  Upon investigation of the load on the NetScalers, the architect determines that both internal and external HDX traffic flow through the NetScaler Gateways and the NetScalers are running at capacity. Which PowerShell commandlet and parameter can help the architect address this issue until more NetScaler resources are procured?

  A. Set-DSOptimalGatewayForFarms -onDirectAccess=false
  B. Set-STFCitrixAGBasicOptions -onDirectAccess=true
  C. Set-STFCitrixAGBasicOptions -onDirectAccess=false
  D. Set-DSOptimalGatewayForFarms -onDirectAccess=true
  A. Set-DSOptimalGatewayForFarms -onDirectAccess=false

• Question 73:

  Scenario: While assessing the User Layer, a Citrix Architect finds that most of the internal users connect using corporate-owned laptops, desktop devices, and thin clients. Many of these laptops and desktop devices are running Windows 10, while the remainder of the machines are running Windows 7 and are in the process of being migrated to Windows 10. Some users also connect using personal devices.

  Currently, Citrix Receiver is manually installed on any endpoint device added to the company. All these devices use Citrix Receiver version 4.8 and above. Some of the internal users with Windows laptops are experiencing issues in which devices such as a keyboard, mouse, a monitor connected to a docking station or a USB hub are NOT usable in an HDX session.

  Which action should the architect recommend to provide a uniform user experience for all users?

  A. Recreate user accounts in Active Directory
  B. Upgrade all clients to the latest version of Citrix Receiver
  C. Upgrade drivers of peripheral devices
  D. Recreate user profiles
  B. Upgrade all clients to the latest version of Citrix Receiver

• Question 74:

  Scenario: A Citrix Architect must complete a XenApp and XenDesktop security assessment. After examining the network topology for the hypervisor hosts supporting the Virtual Delivery Agent (VDA) machines, the architect finds that some of the network connections are NOT following leading security practices.

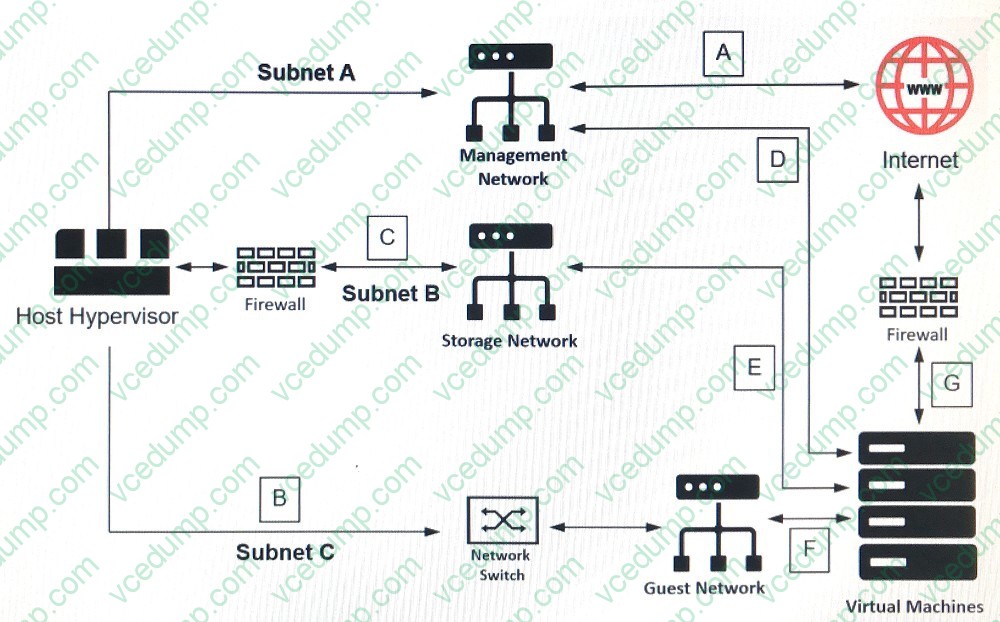

  Click the Exhibit button to view a high-level diagram which shows the connectivity between various components.



  Which three of the labeled areas of the diagram represent connections which are NOT following Citrix leading security practices? (Choose three.)

  A. G
  B. B
  C. A
  D. E
  E. F
  F. D
  G. C
  D. E
  E. F
  F. D

• Question 75:

  Scenario: A Citrix Architect needs to design a new XenApp and XenDesktop environment.

  The following Control Layer security requirements have been identified:

  For security reasons, it is unacceptable to use default ports for FMA Services.

  Access to PowerShell and Citrix Studio for management will be restricted to management workstations by granular firewall rules.

  Which command-line interface executable should the architect run to ensure that all Control Layer security requirements are met?

  A. BrokerService.exe 璙daPort 8081 璚ISSLPort 8083 璖DKPort 8083 瑿onfigureFirewall
  B. BrokerService.exe 璙daPort 443 璚ISSLPort 443 璖DKPort 443 瑿onfigureFirewall
  C. BrokerService.exe 璙daPort 80 璚ISSLPort 80 璖DKPort 8083 瑿onfigureFirewall
  D. BrokerService.exe 璙daPort 8081 璚ISSLPort 8082 璖DKPort 8083 瑿onfigureFirewall
  B. BrokerService.exe 璙daPort 443 璚ISSLPort 443 璖DKPort 443 瑿onfigureFirewall

• Question 76:

  Scenario: A Citrix Architect needs to design a new XenApp and XenDesktop environment.

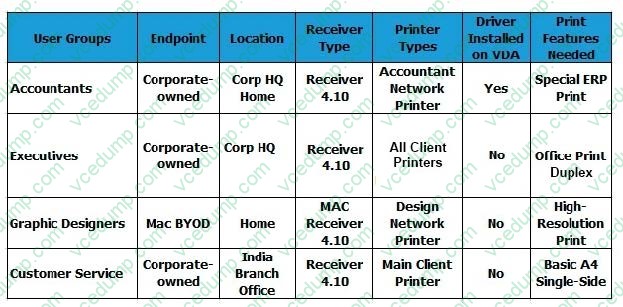

  The architect has identified printing requirements for certain user groups and locations, as shown in the Exhibit.

  Click the Exhibit button to view the requirements.



  Currently, no printer settings or policies have been configured, and as such, the environment is using default settings. Universal Print Server will NOT be used in this design.

  Which two settings should the architect configure to allow the Executives group to achieve the desired print behavior and to ensure their print jobs are optimally routed? (Choose two.)

  A. Set Auto-create Client Printers policy to auto-create local printers only
  B. Enable Auto-create PDF Universal Printer policy
  C. Set Direct connections to print servers policy to Enabled
  D. Set Direct connections to print servers policy to Disabled
  E. Configure Session Printers policy
  F. Configure Default Printers policy
  G. Set Auto-create Client Printers policy to auto-create all client printers
  C. Set Direct connections to print servers policy to Enabled
  E. Configure Session Printers policy

• Question 77:

  Scenario: A Citrix Architect is designing a XenDesktop environment. The Engineer group uses graphical applications which require the use of AMD hardware shared virtualized GPU. Which two hypervisors can the architect select? (Choose two.)

  A. XenServer 6.5
  B. VMware vSphere 5.5
  C. XenServer 7.0
  D. VMware vSphere 6.0
  E. Microsoft Hyper-V Server 2012 R2
  A. XenServer 6.5
  C. XenServer 7.0

• Question 78:

  Scenario: A Citrix Architect needs to design a new XenApp and XenDesktop environment. Currently, the environment is configured with two locations with identical XenDesktop Sites. Each Site has two Delivery Controllers, two StoreFront

  servers, and one NetScaler high availability pair. The same applications have been published from both Sites for all the users. Two Zones (Zone A and Zone B) are configured in each Site with one Controller in each zone. The Microsoft

  Exchange server is only accessible from Virtual Delivery Agent (VDA) machines in Zone A in each Site.

  The following access requirements have been identified:

  Users should have a single URL when accessing resources from different Sites.

  Users should always connect to the datacenter closest to their location.

  Applications added to Favorites within Citrix Receiver should be retained when accessed from different Sites.

  Launched applications and desktops should always connect through a local NetScaler.

  No duplication of applications published from different Sites.

  Microsoft Outlook should always launch in Zone A.

  What should the architect recommend to ensure that Microsoft Outlook always launches from Zone A for every user?

  A. Configure zone preference based on user location.
  B. Configure Zone A as the application home zone for Microsoft Outlook.
  C. Move a Controller from Zone B to Zone A.
  D. Designate Zone A as the home zone for all users.
  B. Configure Zone A as the application home zone for Microsoft Outlook.

• Question 79:

  Scenario: A Citrix Architect needs to design a new XenApp and XenDesktop environment.

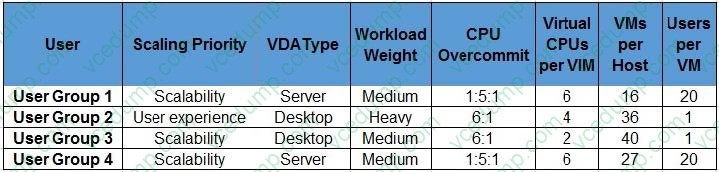

  The table in the Exhibit lists details about the requirements of the current user groups and their Virtual Delivery Agent (VDA) machine workloads.

  Click the Exhibit button to view the table.



  The architect should scale the hardware used to host the VMs for User Group 1 to ______ cores. (Choose the correct option to complete the sentence.)

  A. 32
  B. 24
  C. 16
  D. 96
  E. 64
  B. 24

• Question 80:

  Scenario: A Citrix Architect needs to design a new XenApp and XenDesktop environment.

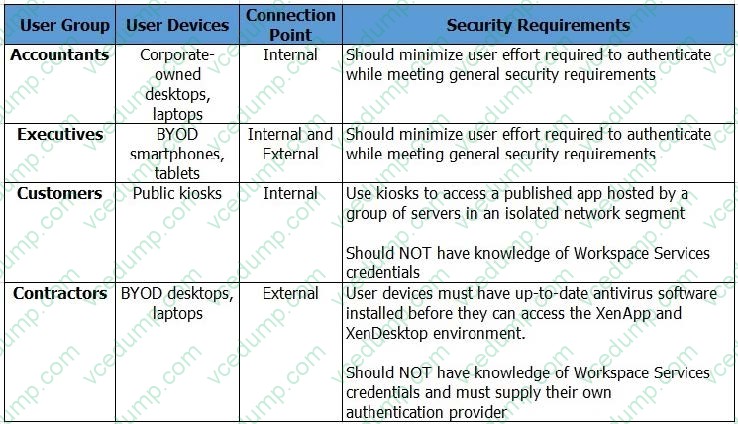

  The architect has identified the User Layer requirements, as shown in the Exhibit.

  Click the Exhibit button to view the requirements.



  Additionally, management at the organization has identified the following general Access Layer requirements:

  A multi-factor authentication method is required for any connections to the XenApp and XenDesktop environment originating from outside the corporate network.

  External connections must be authenticated by a NetScaler Gateway virtual server located in a DMZ network.

  Internal connection traffic should NOT leave the internal corporate network.

  Which two authentication methods should the architect use for the Contractors group? (Choose two.)

  A. RADIUS authentication
  B. Smart Cards
  C. SAML authentication
  D. Domain pass-through
  E. Federated Authentication Service
  F. Username and password
  C. SAML authentication
  E. Federated Authentication Service
