CWNP PW0-100 Online Practice Questions and Exam Preparation

CWNP PW0-100 Online Questions & Answers

• Question 31:

  What factors influence the distance that an RF signal can be effectively received? (Choose 4)

  A. Transmitting station's antenna type
  B. Receiving station's radio sensitivity
  C. Free Space Path Loss
  D. MAC layer encryption
  E. Transmitting station's output power
  F. Temperature in the Fresnel zone
  A. Transmitting station's antenna type
  B. Receiving station's radio sensitivity
  C. Free Space Path Loss
  E. Transmitting station's output power

• Question 32:

  Given: XYZ Corporation is experiencing connectivity problems with their existing building-to-building bridge link. A concrete wall on the roof of one building is partially blocking the Fresnel Zone, and the connection is dropping many frames. The administrator moves the antenna to an area not obstructed by the concrete wall and then realizes the RF cable cannot reach the new location.

  If an extension cable is added to move the antenna, what are the likely results?

  A. The data throughput rate will increase because VSWR will decrease.
  B. The Equivalent Isotropically Radiated Power (EIRP) will decrease.
  C. The antenna's azimuth beamwidth will decrease.
  D. The size of the Fresnel zone will increase.
  E. The likelihood of a direct lightning strike will increase.
  B. The Equivalent Isotropically Radiated Power (EIRP) will decrease.

• Question 33:

  When compared with legacy Power Save mode, how does WMM-PS improve voice device and application performance?

  A. WMM-PS identifies and prioritizes incoming VoIP data and delivers it immediately
  B. WMM-PS uses a trigger-and-delivery method that eliminates the need for PS-Poll exchanges
  C. WMM-PS requires scheduled service periods for predictable uplink data delivery.
  D. WMM-PS allows the WLAN transceiver to disable more components when in a low power state.
  B. WMM-PS uses a trigger-and-delivery method that eliminates the need for PS-Poll exchanges

• Question 34:

  What specifications should be evaluated for an antenna before it is implemented in a WLAN system? (Choose three)

  A. Spectral efficiency
  B. TPC support
  C. Impedance in Ohms
  D. Elevation Beamwidth
  E. Return Loss Rating
  F. Operating Frequencies
  C. Impedance in Ohms
  D. Elevation Beamwidth
  F. Operating Frequencies

• Question 35:

  Given: You are on-site to perform a post-deployment site survey. When verifying a multiple channel VoWiFi deployment using a VoWiFi handset, which aspect is most important?

  A. Performing protocol analysis with a single wireless adapter that is scanning all channels in use
  B. Testing a constant conversation or handset tone while roaming from area to area, or performing an active survey
  C. Configuring DSCP-to-802.11e QoS maps on the handset for each access category.
  D. Verifying the orientation/polarity of all omni-directional antennas in use by the VoWiFi clients.
  B. Testing a constant conversation or handset tone while roaming from area to area, or performing an active survey

• Question 36:

  Given: You are an independent contractor, hired to perform an indoor site survey and network design for ABC Hotel. The network will support both hotel staff and guest users. You are interviewing the network manager to determine business, performance, and security requirements for the future 802.11 WLAN.

  What questions should you ask the IT manager? (Choose two)

  A. What data cabling is currently installed in the rooms and throughout the hotel?
  B. How much RF loss do you expect between hotel rooms?
  C. Where are the RF dead zones located within the facility?
  D. What types of applications will be used by the hotel staff?
  E. Are there any radar systems in use at the hotel that would conflict with the WLAN?
  A. What data cabling is currently installed in the rooms and throughout the hotel?
  D. What types of applications will be used by the hotel staff?

• Question 37:

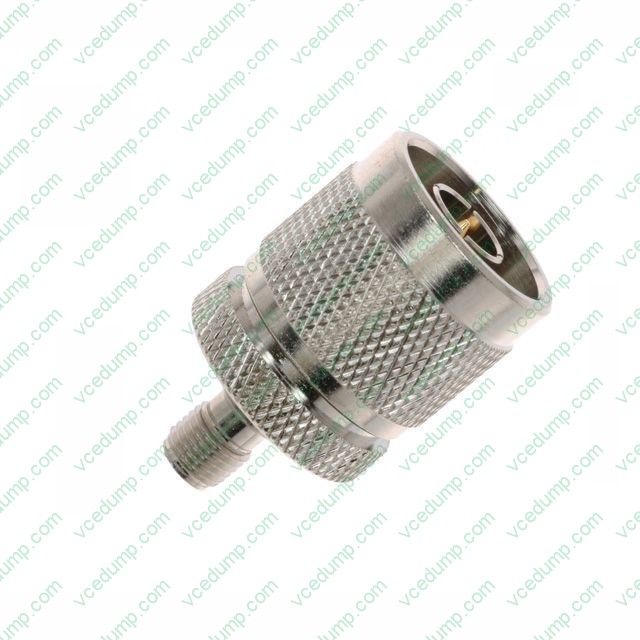

  What is the purpose of the WLAN component shown in the exhibit?



  A. Connecting an unterminated coaxial RF cable to an N-type female connector on an antenna
  B. Adapting an antenna with an SMA connector to an AP with an N-type female connector
  C. Connecting a lightning arrestor (gas discharge tube) to a grounding rod cable
  D. Providing a fixed amount of signal attenuation between a signal source and an SMA antenna connector
  B. Adapting an antenna with an SMA connector to an AP with an N-type female connector

• Question 38:

  Given: You are being interviewed by ABC Company for employment as a wireless site survey engineer. The interviewing manager asks you what items should be included in a manual RF site survey report.

  What answer would be accurate? (Choose two)

  A. Itemized list of equipment, licenses, and support contracts required for the facility
  B. RF heat map illustrating coverage and signal quality for each frequency band
  C. Documentation noting physical security hazards in the RF coverage area
  D. Documentation noting where each access point will be placed and how it will be mounted
  E. Documentation noting how each WLAN user group will authenticate to the network
  B. RF heat map illustrating coverage and signal quality for each frequency band
  D. Documentation noting where each access point will be placed and how it will be mounted

• Question 39:

  In addition to throughput enhancements, what other improvements does 802.11n provide when compared with 802.11a/g? (Choose 2)

  A. Introduces "fast transition" roaming protocols for VoWiFi phones
  B. Better link reliability between 802.11a/b/g client devices and 802.11n APs
  C. Improves service quality for real-time applications at greater distances
  D. Increases in receive sensitivity enhance RTLS location accuracy
  E. Stronger security with more robust encryption modes.
  B. Better link reliability between 802.11a/b/g client devices and 802.11n APs
  C. Improves service quality for real-time applications at greater distances

• Question 40:

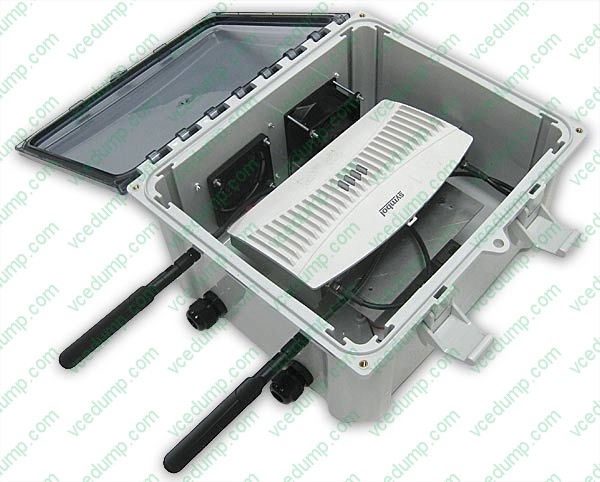

  For what reason would the AP enclosure shown in the exhibit be used in an indoor WLAN deployment at an industrial facility? (Choose 2)



  A. Aesthetic requirements
  B. Physical security and theft prevention
  C. Protection from environmental conditions
  D. Reduce transient RF interference
  E. 802.11 security compliance
  B. Physical security and theft prevention
  C. Protection from environmental conditions
