• Question 81:

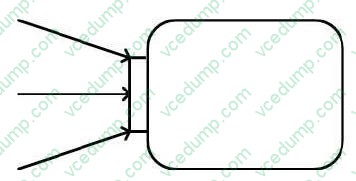

  In the exhibit, if all incoming arrows provide the same value, how many values does the pin have?



  A. three.
  B. two
  C. one
  D. none
  A. three.

• Question 82:

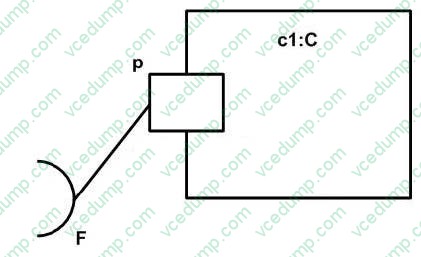

  What does the composite structure notation in the exhibit mean?



  A. port p is connected to an object called F.
  B. Port p realizes the features defined by interface F.
  C. Port p requires the features defined by interface F.
  D. Class C has internal structure.
  E. Object c1 is a kind of component.
  C. Port p requires the features defined by interface F.

• Question 83:

  What is true when an event does not trigger any transitions in the current state?

  A. The state machine is not well formed.
  B. The handling of the situation is a semantic point.
  C. An exception is raised.
  D. The event is discarded.
  E. The event is deferred until a state is reached that responds to that trigger.
  D. The event is discarded.

• Question 84:

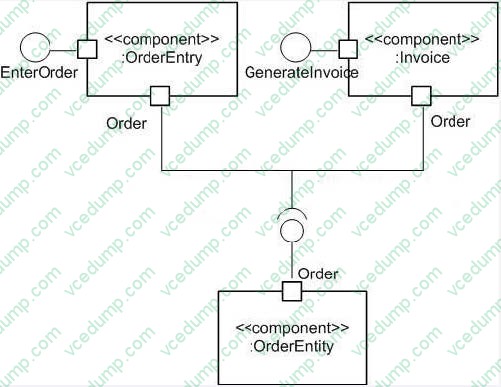

  What best describes the semantics modeled by the exhibit?



  A. Order Entry and Invoicer are ports of Order Entry
  B. Order Entry delegates to both Order Entry and Invoicer.
  C. The order Entry component and the Invoicer component both require the services described by the Order interface and use an Order Entry component that provides those services.
  D. Signals travel from an Order Entry port and an Invoicer port, and join into a composite signal that flows to an Order Entry port. The signals flow along instances of the Order interface.
  C. The order Entry component and the Invoicer component both require the services described by the Order interface and use an Order Entry component that provides those services.

• Question 85:

  What is a combined fragment?

  A. more than one interaction combined in an interaction overview diagram
  B. an interaction occurrence covering more than one lifeline
  C. the combination of decomposed lifelines
  D. a construct with interaction operands and in interaction operator.
  D. a construct with interaction operands and in interaction operator.

• Question 86:

  What interface restrictions does a port have?

  A. equal numbers of provided interfaces and required interfaces
  B. multiple provided interfaces and multiple required interfaces C. exactly one required interface and exactly one provided interface
  D. multiple required interfaces or multiple provided interfaces
  E. exactly one provided interface or exactly one required interface
  B. multiple provided interfaces and multiple required interfaces C. exactly one required interface and exactly one provided interface

• Question 87:

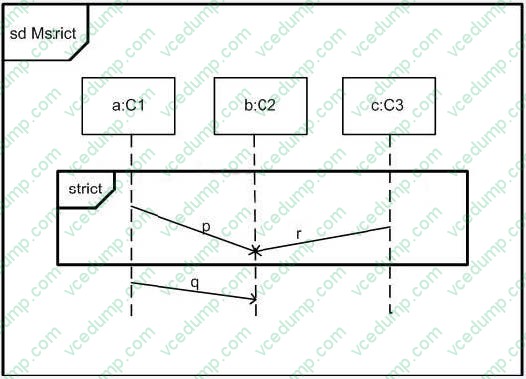

  In the exhibit, what is true about Mstrict?



  A. Within the strict combined fragment, sending a signal will immediately be followed by the reception of that signal.
  B. The whole Mstrict has only one legal trace.
  C. Sending q precedes reception of r in all legal traces.
  D. Sending r precedes sending p in all legal traces
  C. Sending q precedes reception of r in all legal traces.

• Question 88:

  If the node in the exhibit receives a value, what happens to other values flowing in the diagram containing the node?



  A. nothing
  B. They stop for a time specified by the small circle.
  C. They are aborted.
  D. They stop until the small circle emits a value.
  A. nothing

• Question 89:

  In the exhibit, what represents an interaction occurrence?



  A. A
  B. B
  C. C
  D. D
  C. C

• Question 90:

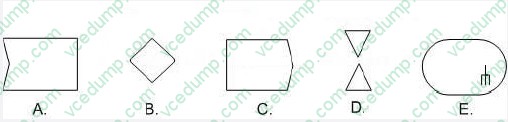

  What symbol depicts a Call Behavior Action?



  A. A
  B. B
  C. C
  D. D
  E. E
  E. E
