OMG OMG-OCUP2-INT200 Online Practice Questions and Exam Preparation

OMG OMG-OCUP2-INT200 Online Questions & Answers

• Question 41:

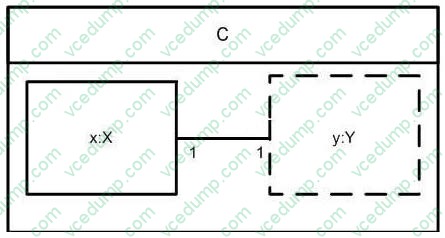

  What is true about the composite structure exhibit?



  A. Every instance of X must be connected to an instance of Y.
  B. All instances corresponding to x and y will be destroyed when an instance of C is destroyed.
  C. Every instance of Y must be connected to an instance of X.
  D. C has at least two properties.
  D. C has at least two properties.

• Question 42:

  What situation results from an Apply Function Action?

  A. reads objects and produces output values
  B. produces output values
  C. writes objects and produces output values
  D. reads objects, write objects, and produces output values
  E. performs any set of UML actions
  B. produces output values

• Question 43:

  When either a message m or a message q is to be sent-but not both-what kind of operator for combined fragment would be used?

  A. var
  B. break
  C. opt
  D. par
  E. alt
  E. alt

• Question 44:

  What is true about a collaboration?

  A. identifies a protocol state machine
  B. describes the internal structure of a structured classifier
  C. describes one or more interactions working together
  D. describes how multiple classifiers achieve a task together
  D. describes how multiple classifiers achieve a task together

• Question 45:

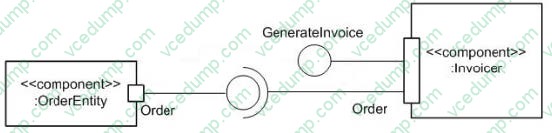

  What best describes the semantics modeled by the exhibit?



  A. The Order Entity component is part of the internals of the Invoicer component.
  B. The Invoicer has a complex connector that connects the Generate Invoice interface with the Order interface.
  C. This is an illegal diagram.
  D. The Invoicer has a complex port that provides the interface Generate Invoice and requires the interface Order.
  D. The Invoicer has a complex port that provides the interface Generate Invoice and requires the interface Order.

• Question 46:

  Which list contains only connectable elements?

  A. behavior, connector end, and port
  B. behavior, port and property
  C. port and connector end
  D. connector end, port and part
  E. property, port, and parameter
  E. property, port, and parameter

• Question 47:

  Where is an interaction constraint placed?

  A. either on the top of an operand or at the bottom of an operand
  B. always at the top of an interaction
  C. above the first event within an interaction operand
  D. directly outside the combined fragment
  C. above the first event within an interaction operand

• Question 48:

  Instances of the Communication Path class connect instances of which classes in a deployment diagram?

  A. Instance Specification and Deployment Specification
  B. Deployment Target and Deployed Artifact
  C. Node and Property
  D. Node and Signal
  E. two Nodes
  E. two Nodes

• Question 49:

  What stereotype notation is NOT correct?



  A. A
  B. B
  C. C
  D. D
  D. D

• Question 50:

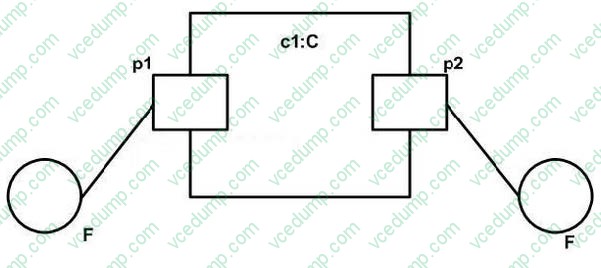

  What does the composite structure exhibit show?



  A. The diagram is not valid.
  B. Requests for behavioral features of interface F through ports p1a nd p2 will always result in the same behavior.
  C. The two F interfaces must come from different packages.
  D. Requests for behavioral features of interface F through
  D. Requests for behavioral features of interface F through
