Fortinet NSE4_FGT_AD-7.6 Online Practice Questions and Exam Preparation

Fortinet NSE4_FGT_AD-7.6 Online Questions & Answers

• Question 1:

  DRAG DROP

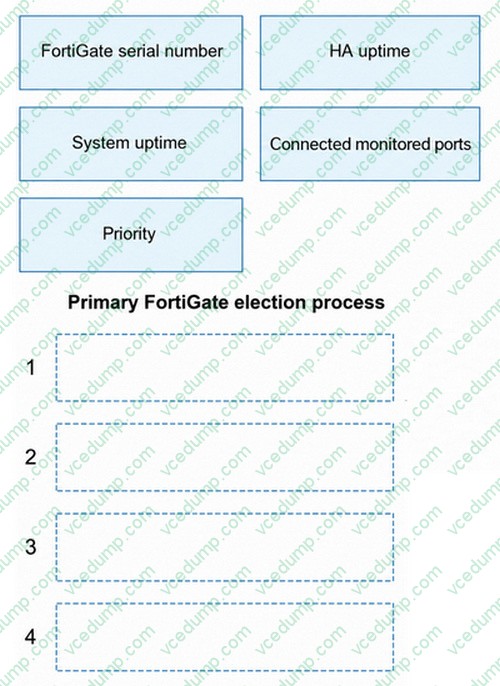

  An administrator wants to form an HA cluster using the FGCP protocol. Both FortiGate devices are configured with the set override enable command. Arrange the criteria in the order in which the FGCP protocol uses them to elect the primary FortiGate.

  Select the criteria in the left column, hold and drag it to a blank position in the column on the right. Place the four correct steps in order, placing the first step in the first position.

  Once you place a step, you can move it again if you want to change your answer before moving to the next question.

  You need to drop four criteria in the work area.

  Select and drag the screen divider to change the viewable area of the source and work areas. (Choose four answers)

  Select and Place:





  ---

  "This slide shows the different criteria that a cluster considers during the primary FortiGate election process. The criteria order evaluation depends on the HA override setting." For the default case shown in the guide: "1. The cluster compares the number of monitored interfaces that have a status of up. The member with the most available monitored interfaces becomes the primary.

  2. The cluster compares the HA uptime of each member...

  3. The member with the highest priority becomes the primary.

  4. The member with the highest serial number becomes the primary." For this question's case:

  "If the HA override setting is enabled, the priority is considered before the HA uptime."

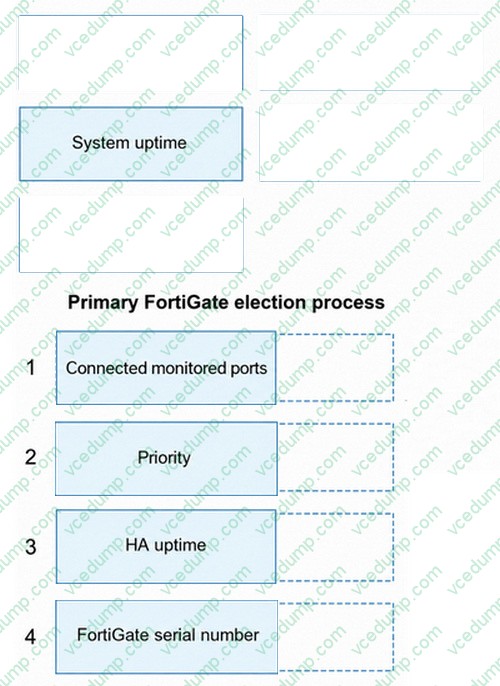

  Technical Deep Dive: Because override is enabled, the election order changes from the default sequence. The first criterion is still Connected monitored ports, because interface health is evaluated first. After that, Priority moves ahead of HA uptime. If those still do not decide the winner, FortiGate uses the serial number as the final tie-breaker. Therefore the correct order is:

  1. Connected monitored ports

  2. Priority

  3. HA uptime

  4. FortiGate serial number

  This distinction matters in production. With set override enable, you are effectively making HA priority authoritative over uptime, so the preferred unit will reclaim the primary role when it comes back online. That is useful for deterministic primary selection, but it can also cause an additional failover event when the preferred chassis returns to service. The guide explicitly notes this tradeoff. In practice, the relevant HA checks and verification commands are:

  show system ha

  get system ha status

  diagnose sys ha status

  These let you confirm override status, device priority, monitored interfaces, and recent election results. From a control-plane perspective, FGCP election logic is handled by FortiOS over heartbeat links, while data-plane forwarding after election continues using the cluster's virtual MAC behavior and synchronized HA state.

• Question 2:

  Which statement correctly describes NetAPI polling mode for the FSSO collector agent?

  A. The collector agent uses a Windows API to query DCs for user logins.
  B. The NetSessionEnum function is used to track user logouts.
  C. NetAPI polling can increase bandwidth usage in large networks.
  D. The collector agent must search Windows application event logs.
  B. The NetSessionEnum function is used to track user logouts.

  ---

  Explanation

  NetAPI: Polls temporary sessions created on the DC when a user logs on or logs off and calls the NetSessionEnum function on Windows. It's faster than the WinSec and WMI methods; however, it can miss some logon events if a DC is under heavy system load. This is because sessions can be quickly created and purged form RAM, before the agent has a chance to poll and notify FG.

• Question 3:

  Which two statements about the Security Fabric rating are true? (Choose two answers)

  A. A license is required to obtain an executive summary in the Security Rating section.
  B. The root FortiGate provides executive summaries of all the FortiGate devices in the Security Fabric.
  C. The Security Posture category provides PCI compliance results.
  D. Security Rating Insights are available only in the Security Rating page.
  B. The root FortiGate provides executive summaries of all the FortiGate devices in the Security Fabric.
  C. The Security Posture category provides PCI compliance results.

  ---

  Explanation

  "The Security Rating page is separated into three major scorecards: Security Posture, Fabric Coverage, and Optimization, which provide an executive summary of the three largest areas of security focus in the Security Fabric." ( Fortinet Document Library ) "On the root FortiGate, go to Security Fabric > Security Rating." ( Fortinet Document Library ) "The Info and Compliance tab includes the security controls used for the test and links to specific FSBP, PCI, or CIS compliance policies." ( Fortinet Document Library ) "A new Security Rating Insights feature provides immediate access to crucial security information. Hover over any tested object to reveal a tooltip..." and "Objects, such as firewall policies, with security rating recommendations are highlighted... click Security Rating Insights to display relevant issues." ( Fortinet Document Library )

  Technical Deep Dive:

  The correct answers are and . B C

  B is correct because Security Rating is viewed from the root FortiGate and its scorecards provide an executive summary for the Security Fabric, not just an isolated downstream unit. The root device is the point from which the Security Fabric summary is presented. ( Fortinet Document Library ) C is correct because the Security Rating results include an Info and Compliance view with references to PCI compliance policies. That means PCI-related compliance results are part of the Security Rating reporting associated with the security categories, including Security Posture. ( Fortinet Document Library ) Why the others are incorrect: A is incorrect because Fortinet documents state there is a base set of free checks and a separate licensed set of checks. A license is not required just to obtain the executive summary view itself. (Fortinet Document Library ) D is incorrect because Security Rating Insights are not limited to the Security Rating page. Fortinet documents show they also appear as tooltips and buttons on other GUI objects and pages. ( Fortinet Document Library )

• Question 4:

  A network administrator is configuring an IPsec VPN tunnel for a sales employee travelling abroad.

  Which VPN Wizard template must the administrator apply?

  A. Remote Access
  B. Hub-and-Spoke
  C. Site-to-Site
  D. Dial-up User
  A. Remote Access

  ---

  Explanation

  Exact Extract:

  "If you want the wizard to configure the VPN for you, then select the template type Site to Site, Hub-and-Spoke, or Remote Access that best matches your VPN." "Use remote access VPNs when remote internet users need to securely connect to the office to access corporate resources. The remote user connects to a VPN server located on the corporate premises, such as FortiGate, to establish a secure tunnel." "A common use of the IPsec wizard is for configuring a remote access VPN for FortiClient users."

  Technical Deep Dive: The correct answer is A. Remote Access.

  A sales employee travelling abroad is a remote user, not another branch office or headquarters firewall. That means the tunnel type is a remote access VPN, where the user connects from an internet location back to the corporate FortiGate.

  In this design, the remote client typically uses FortiClient, and FortiGate acts as the VPN server.

  Why the other options are incorrect: Hub-and-Spoke is for multi-site branch connectivity through a central hub. Site-to-Site is for connecting two fixed networks, such as branch office to headquarters. Dial-up User describes the remote-user behavior conceptually, but it is not the IPsec Wizard template choice shown in the study guide. The wizard template to select is Remote Access. So for a travelling sales employee, the administrator must choose the Remote Access VPN Wizard template.

• Question 5:

  What are two features of collector agent advanced mode? (Choose two.)

  A. In advanced mode, security profiles can be applied only to user groups, not individual users.
  B. In advanced mode. FortiGate can be configured as an LDAP client and group filters can be configured on FortiGate.
  C. Advanced mode uses the Windows convention-NetBios: Domain\Username.
  D. Advanced mode supports nested or inherited groups.
  B. In advanced mode. FortiGate can be configured as an LDAP client and group filters can be configured on FortiGate.
  D. Advanced mode supports nested or inherited groups.

  ---

  Explanation

  " Also, advanced mode supports nested or inherited groups; that is, users can be members of subgroups that belong to monitored parent groups. " " In advanced mode, you can configure FortiGate as an LDAP client and configure the group filters on FortiGate. You can also configure group filters on the collector agent. "

  Collector Agent Advanced Mode provides deeper integration between FortiGate, LDAP, and Active Directory, compared to standard mode.

  Key features of Collector Agent Advanced Mode

  B. FortiGate can be configured as an LDAP client and group filters can be configured on FortiGate. Correct In advanced mode: FortiGate directly queries LDAP/AD User group filters are configured on FortiGate, not only on the Collector Agent This allows more flexible and scalable user/group-based policies

  D. Advanced mode supports nested or inherited groups. Correct Advanced mode supports: Nested AD groups Inherited group memberships This is one of the primary reasons advanced mode is used in complex AD environments Why the other options are incorrect

  A. Security profiles only to user groups Incorrect. Security profiles can be applied to users or groups, depending on policy configuration.

  C. Uses NetBIOS Domain\Username format Incorrect. NetBIOS naming is associated with standard mode Advanced mode typically uses LDAP DN-based identification

• Question 6:

  Refer to the exhibits.

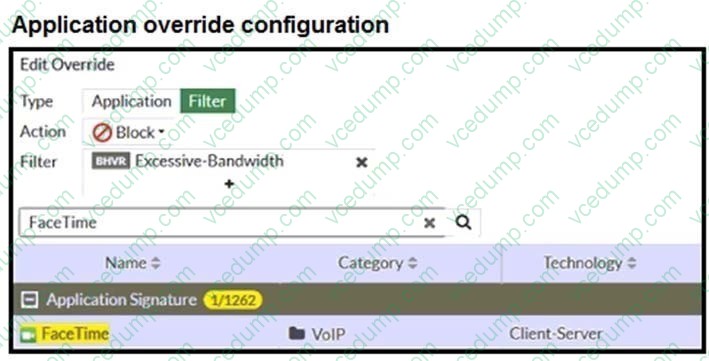

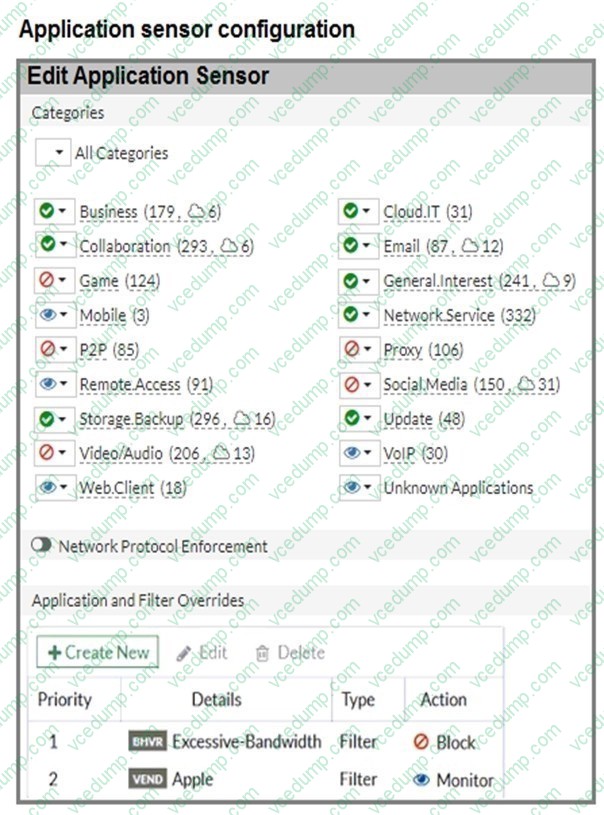

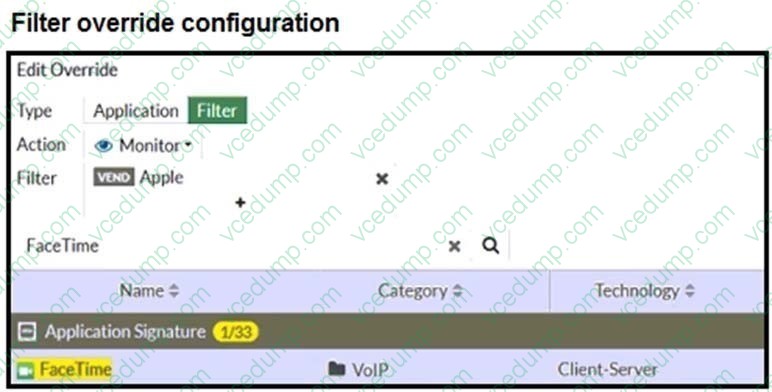

  The exhibits show the application sensor configuration and the Excessive-Bandwidth and Apple filter details.

  Based on the configuration, what will happen to Apple FaceTime if there are only a few calls originating or incoming?

  A. Apple FaceTime will be allowed, based on the Video/Audio category configuration.
  B. Apple FaceTime will be blocked, based on the Excessive-Bandwidth filter configuration.
  C. Apple FaceTime will be allowed, based on the Apple filter configuration.
  D. Apple FaceTime will be allowed only if the Apple filter in Application and Filter Overrides is set to Allow.
  B. Apple FaceTime will be blocked, based on the Excessive-Bandwidth filter configuration.

  ---

  Explanation

  According to the FortiOS 7.6 Administrator Study Guide, the Application Control engine processes traffic by evaluating the Application and Filter Overrides section first, using a top-down matching logic similar to firewall policies. In the provided exhibit, there are two override entries: Priority 1: A behavior-based filter for Excessive-Bandwidth with the action set to Block. Priority 2: A vendor-based filter for Apple with the action set to Monitor. The exhibit titled " Application override configuration " explicitly shows that Apple

  FaceTime is one of the signatures included within the Excessive-Bandwidth behavior filter. When the FortiGate inspects FaceTime traffic, it matches the first entry (Priority 1) because the signature belongs to the " Excessive-Bandwidth " group. Since the action for this priority is Block, the traffic is dropped immediately. The phrase " only a few calls " is a common exam distractor; in this context, the " Excessive-Bandwidth " filter refers to the classification of the application (as one that typically consumes high bandwidth) rather than a real-time measurement of the specific session ' s throughput. Because the engine stops searching once a match is found in the overrides, it never reaches the Priority 2 " Monitor " rule or the general Category settings.

• Question 7:

  Which two statements describe automation stitches? (Choose two answers)

  A. A single automation stitch can contain multiple triggers
  B. Triggers can come from external connectors
  C. Multiple actions in a stitch can run in parallel
  D. Actions are limited to devices inside the Security Fabric only
  B. Triggers can come from external connectors
  C. Multiple actions in a stitch can run in parallel

  ---

  Explanation

  Automation stitches support a flexible response model. Triggers can originate from external connectors, and multiple actions can be configured to run in parallel. A stitch is typically built around a single trigger, not multiple triggers grouped together in the same stitch. Actions are not limited to Security Fabric devices because stitches can also interact with external services and systems.

• Question 8:

  A FortiGate has the following memory threshold settings: green: 82 red: 88 extreme: 95

  Current memory usage is 90%.

  Which two outcomes are expected at this time? (Choose two answers)

  A. FortiGate has entered conserve mode
  B. FortiGate drops all new sessions
  C. FortiGate rejects configuration changes
  D. FortiGate reboots automatically
  A. FortiGate has entered conserve mode
  C. FortiGate rejects configuration changes

  ---

  Explanation

  Memory usage above the red threshold means FortiGate has entered conserve mode. In conserve mode, FortiGate restricts behavior that could increase memory usage further, including rejecting configuration changes. Because the usage is still below the extreme threshold, FortiGate does not yet drop all new sessions. Automatic reboot is not the expected built-in response for this condition.

• Question 9:

  A network administrator is reviewing firewall policies in both Interface Pair View and By Sequence View.

  The policies appear in a different order in each view.

  Why is the policy order different in these two views?

  A. By Sequence View groups policies based on rule priority, while Interface Pair View always follows the order of traffic logs.
  B. The firewall dynamically reorders policies in Interface Pair View based on recent traffic patterns, but By Sequence View remains static.
  C. Interface Pair View sorts policies based on matching interfaces, while By Sequence View shows the actual processing order of rules.
  D. Policies in Interface Pair View are prioritized by security levels, while By Sequence View strictly follows the administrator ' s manual ordering.
  C. Interface Pair View sorts policies based on matching interfaces, while By Sequence View shows the actual processing order of rules.

  ---

  Explanation

  In FortiOS 7.6, firewall policies can be displayed in multiple views to help administrators understand and manage rules more effectively. The difference in ordering between Interface Pair View and By Sequence View is intentional and documented.

  Why the policy order is different Interface Pair View Groups firewall policies based on the incoming (From) and outgoing (To) interfaces.

  Policies are organized under interface pairs such as:

  LAN # WAN

  WAN # LAN

  Within each interface pair, policies may appear reordered compared to the global list. This view is designed for readability and troubleshooting, not to show execution order.

  By Sequence View

  Displays firewall policies in their actual evaluation (processing) order. This is the top-down order FortiGate uses when matching traffic. It reflects the real rule sequence that determines which policy is hit first.

  Why option C is correct

  C. Interface Pair View sorts policies based on matching interfaces, while By Sequence View shows the actual processing order of rules. This statement exactly matches FortiOS behavior as documented in the FortiOS 7.6 Firewall Policy Views section of the Administrator Guide. Why the other options are incorrect A: Interface Pair View does not follow traffic logs, and By Sequence View is not based on "rule priority" grouping. B: FortiGate does not dynamically reorder policies based on traffic patterns. D: Security levels do not affect policy ordering in Interface Pair View.

• Question 10:

  When configuring the connection between FortiGate and FortiAnalyzer, which option indicates that reliable traffic is enabled? (Choose one answer)

  A. The connection status shows a green check icon
  B. The interface status is set to up
  C. A padlock icon appears in the connection settings
  D. The logging mode is set to real-time
  C. A padlock icon appears in the connection settings

  ---

  Explanation

  "When you enable reliable logging on FortiGate, the log transport delivery method changes from UDP to TCP. TCP provides reliable data transfer, guaranteeing that the transferred data remains intact and arrives in the same order in which it was sent." "Optionally, if using reliable logging, you can encrypt communications using SSL-encrypted OFTP traffic, so when a log message is generated, it is safely transmitted across an unsecured network."

  Technical Deep Dive: The correct answer is. The study guide explicitly ties C reliable logging to TCP transport and optionally to SSL-encrypted OFTP. Among the choices, the padlock icon is the only one that meaningfully indicates secure, reliable log transport behavior. A green check icon usually indicates that the FortiGate-FortiAnalyzer connection is simply up, not specifically that reliable logging is enabled. Interface status being up is unrelated, and real-time logging mode describes delivery behavior, not the reliable transport indicator itself.

  So, exam-wise, the best answer is . C

  From the CLI perspective, reliable logging changes the transport from UDP to TCP, and with encryption enabled it uses SSL-protected OFTP. That is why the GUI indicator associated with secure transport is the most relevant visual clue here.
