Fortinet NSE 4 - FortiOS 7.2

Exam Details

  • Exam Code
    :NSE4_FGT-7.2
  • Exam Name
    :Fortinet NSE 4 - FortiOS 7.2
  • Certification
    :Fortinet Certifications
  • Vendor
    :Fortinet
  • Total Questions
    :185 Q&As
  • Last Updated
    :Jun 12, 2025

Fortinet Fortinet Certifications NSE4_FGT-7.2 Questions & Answers

  • Question 11:

    Examine the exhibit, which contains a virtual IP and firewall policy configuration.

    The WAN (port1) interface has the IP address 10.200.1.1/24.

    The LAN (port2) interface has the IP address 10.0.1.254/24.

    The first firewall policy has NAT enabled on the outgoing interface address.

    The second firewall policy is configured with a VIP as the destination address.

    Which IP address will be used to source NAT the Internet traffic coming from a workstation with the IP address 10.0.1.10/24?

    A. 10.200.1.10

    B. Any available IP address in the WAN (port1) subnet 10.200.1.0/24 66 of 108

    C. 10.200.1.1

    D. 10.0.1.254

  • Question 12:

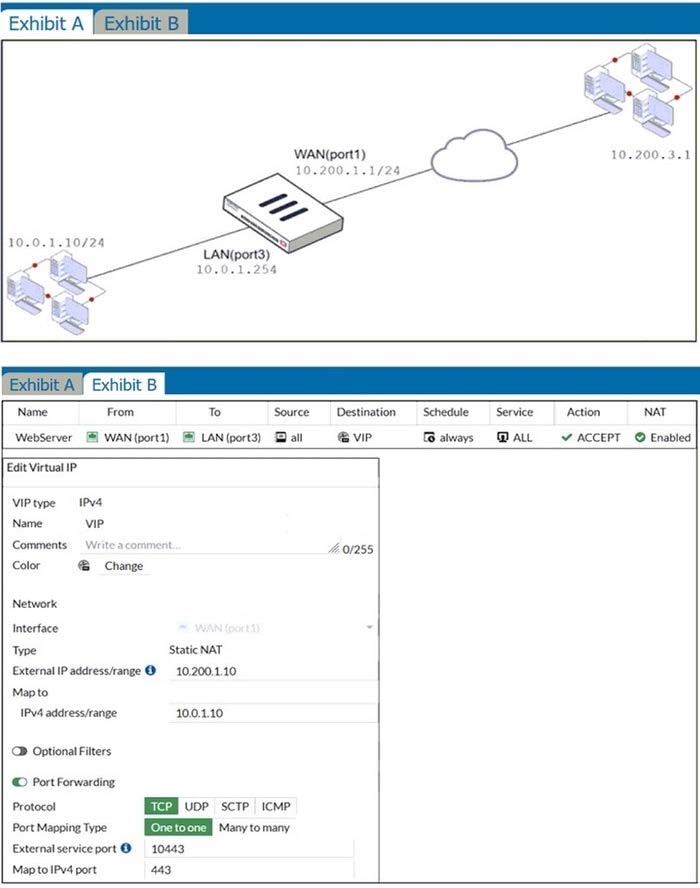

    Refer to the exhibit.

    The exhibit contains a network diagram, virtual IP, IP pool, and firewall policies configuration.

    1.

    The WAN (port1) interface has the IP address 10.200. 1. 1/24.

    2.

    The LAN (port3) interface has the IP address 10 .0.1.254. /24.

    3.

    The first firewall policy has NAT enabled using IP Pool.

    4.

    The second firewall policy is configured with a VIP as the destination address.

    Which IP address will be used to source NAT (SNAT) the internet traffic coming from a workstation with the IP address 10.0.1.10?

    A. 10.200.1.1

    B. 10.200.3.1

    C. 10.200.1.100

    D. 10.200.1.10

  • Question 13:

    Which three methods are used by the collector agent for AD polling? (Choose three.)

    A. FortiGate polling

    B. NetAPI

    C. Novell API

    D. WMI

    E. WinSecLog

  • Question 14:

    What is the limitation of using a URL list and application control on the same firewall policy, in NGFW policy-based mode?

    A. It limits the scope of application control to the browser-based technology category only.

    B. It limits the scope of application control to scan application traffic based on application category only.

    C. It limits the scope of application control to scan application traffic using parent signatures only

    D. It limits the scope of application control to scan application traffic on DNS protocol only.

  • Question 15:

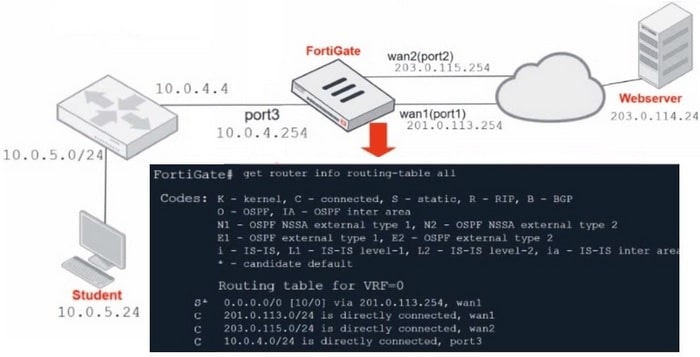

    Refer to the exhibit.

    Which contains a network diagram and routing table output.

    The Student is unable to access Webserver.

    What is the cause of the problem and what is the solution for the problem?

    A. The first packet sent from Student failed the RPF check. This issue can be resolved by adding a static route to 10.0.4.0/24 through wan1.

    B. The first reply packet for Student failed the RPF check. This issue can be resolved by adding a static route to 10.0.4.0/24 through wan1.

    C. The first reply packet for Student failed the RPF check . This issue can be resolved by adding a static route to 203.0. 114.24/32 through port3.

    D. The first packet sent from Student failed the RPF check. This issue can be resolved by adding a static route to 203.0. 114.24/32 through port3.

  • Question 16:

    Which two statements ate true about the Security Fabric rating? (Choose two.)

    A. It provides executive summaries of the four largest areas of security focus.

    B. Many of the security issues can be fixed immediately by clicking Apply where available.

    C. The Security Fabric rating must be run on the root FortiGate device in the Security Fabric.

    D. The Security Fabric rating is a free service that comes bundled with alt FortiGate devices.

  • Question 17:

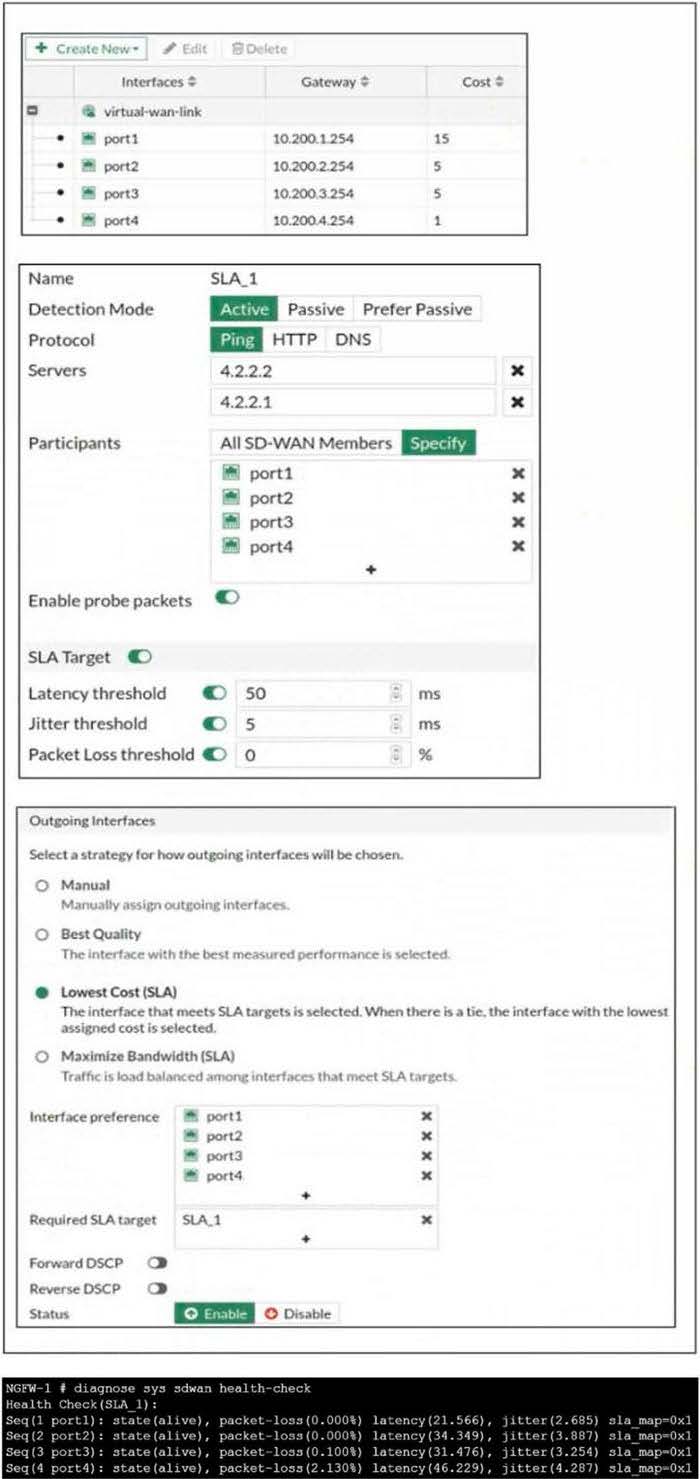

    The exhibit shows the configuration for the SD-WAN member, Performance SLA, and SD-WAN Rule, as well as the output of diagnose sys virtual-wan-link health-check.

    Which interface will be selected as an outgoing interface?

    A. port2

    B. port3

    C. port4

    D. port1

  • Question 18:

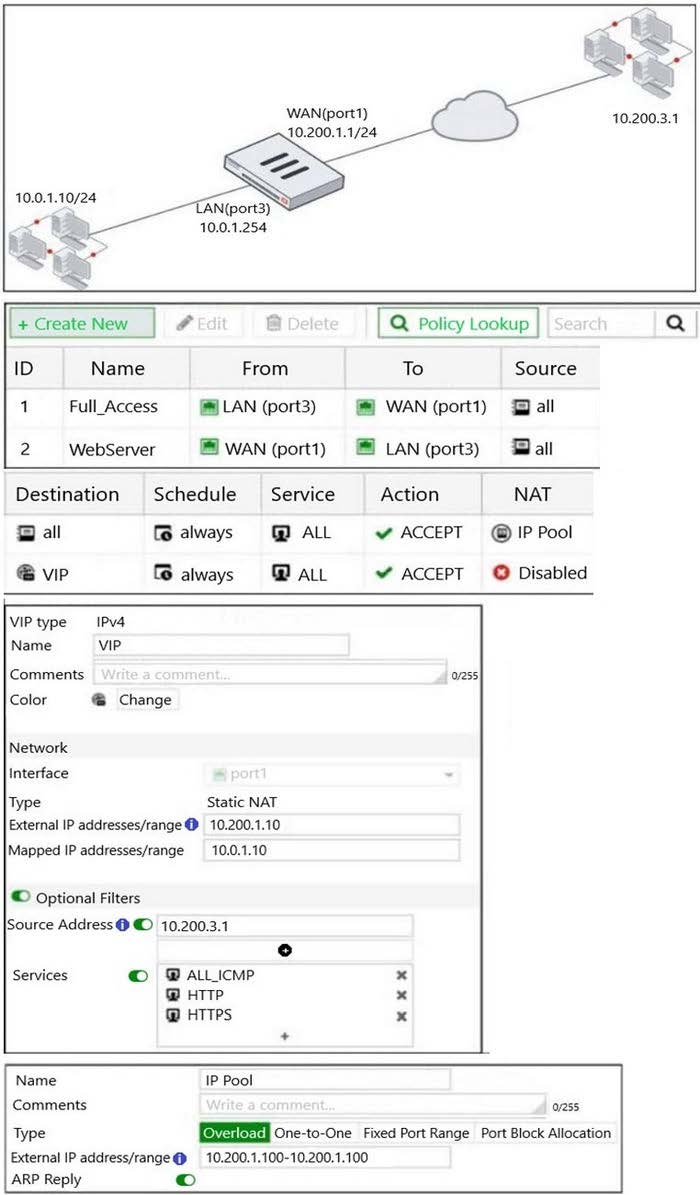

    Refer to the exhibits.

    The exhibits contain a network diagram, virtual IP, IP pool, and firewall policies configuration.

    The WAN (port1) interface has the IP address 10.200.1.1/24.

    The LAN (port3) interface has the IP address 10.0.1.254/24.

    The first firewall policy has NAT enabled using IP Pool.

    The second firewall policy is configured with a VIP as the destination address.

    Which IP address will be used to source NAT the internet traffic coming from a workstation with the IP address 10.0.1.10?

    A. 10.200.1.100

    B. 10.200.1.10

    C. 10.200.1.1

    D. 10.200.3.1

  • Question 19:

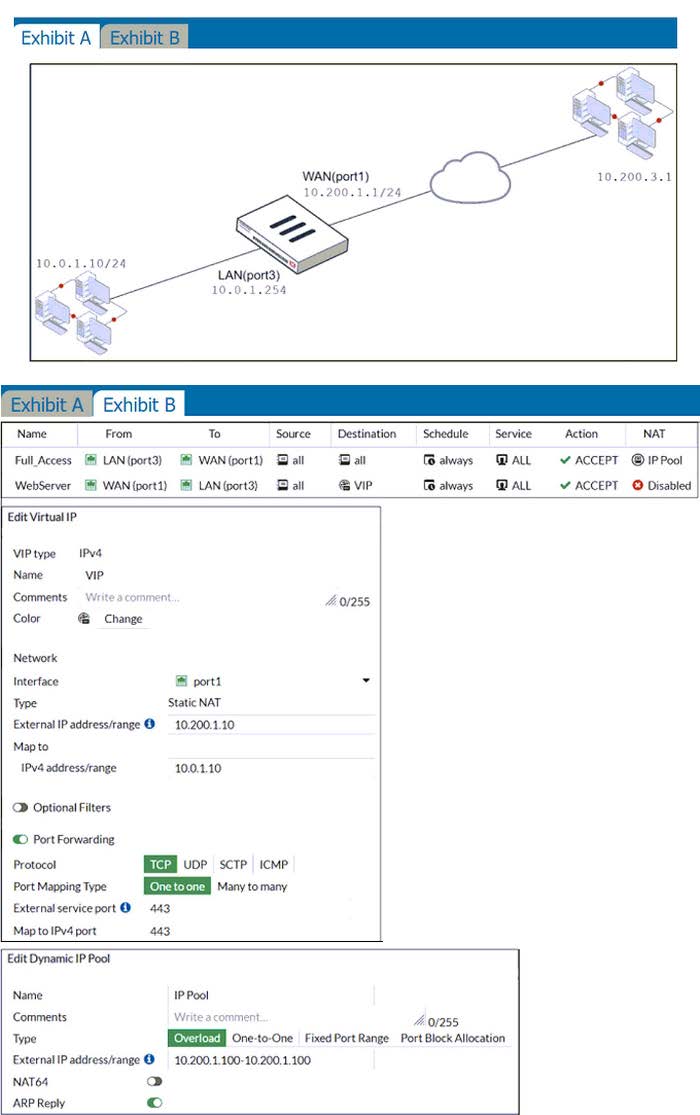

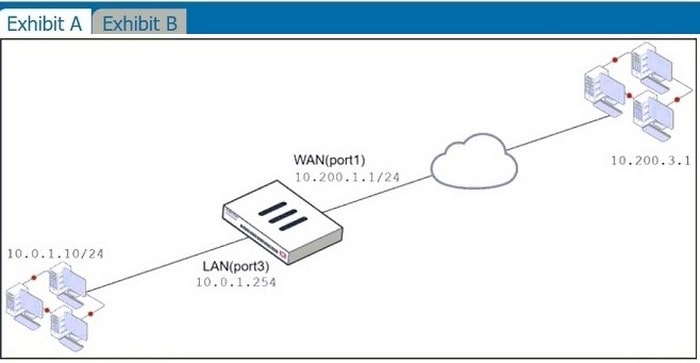

    Refer to the exhibits.

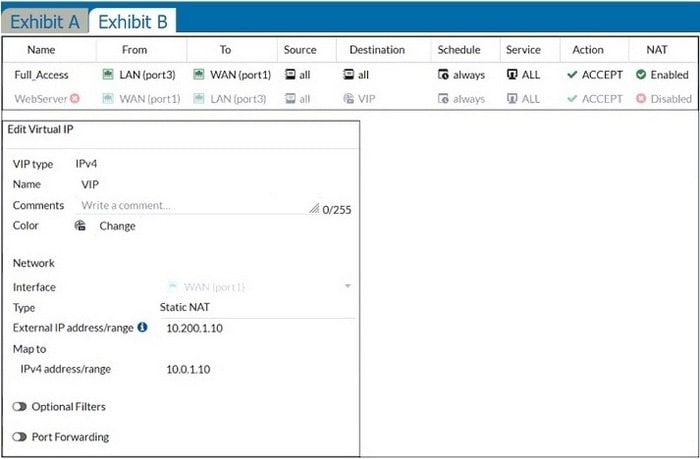

    Exhibit A shows a network diagram. Exhibit B shows the firewall policy configuration and a VIP object configuration.

    The WAN (port1) interface has the IP address 10.200.1.1/24.

    The LAN (port3) interface has the IP address 10.0.1.254/24.

    The administrator disabled the WebServer firewall policy.

    Which IP address will be used to source NAT the traffic, if a user with address 10.0.1.10 connects over SSH to the host with address 10.200.3.1?

    A. 10.200.1.10

    B. 10.0.1.254

    C. 10.200.1.1

    D. 10.200.3.1

  • Question 20:

    To complete the final step of a Security Fabric configuration, an administrator must authorize all the devices on which device?

    A. FortiManager

    B. Root FortiGate

    C. FortiAnalyzer

    D. Downstream FortiGate
