Fortinet NSE4 NSE4_FGT-5.6 Questions & Answers

• Question 21:

  What is the purpose of the Policy Lookup feature? Response:

  A. It searches the matching policy based on input criteria.

  B. It creates packet flow over FortiGate by sending real-time traffic.

  C. It finds duplicate objects in firewall policies.

  D. It creates a new firewall policy based on input criteria.

  Correct Answer: A

• Question 22:

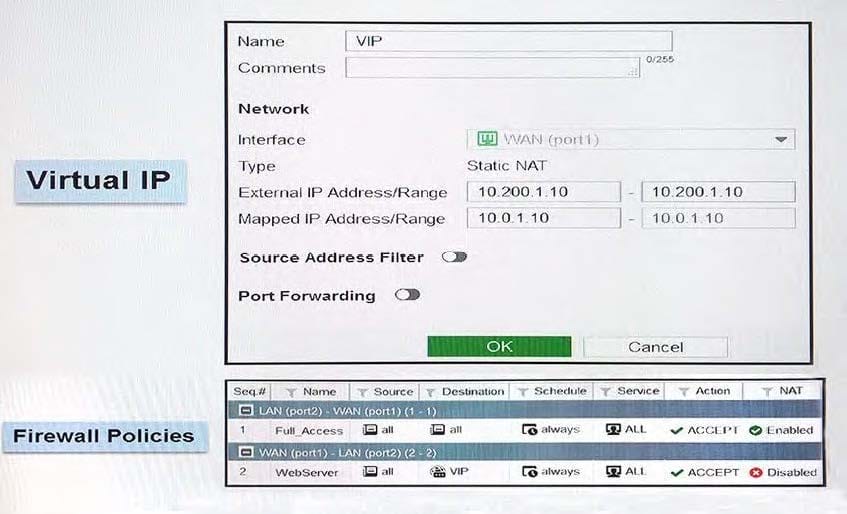

  Examine the exhibit, which contains a virtual IP and a firewall policy configuration.



  The WAN(port1) interface has the IP address 10.200.1.1/24. The LAN(port2) interface has the IP address 10.0.1.254/24. The top firewall policy has NAT enabled using outgoing interface address. The second firewall policy configured with a virtual IP (VIP) as the destination address. Which IP address will be used to source NAT the Internet traffic coming from a workstation with the IP address 10.0.1.10/24?

  Response:

  A. 10.200.1.1

  B. 10.0.1.254

  C. Any available IP address in the WAN(port1) subnet 10.200.1.0/24

  D. 10.200.1.10

  Correct Answer: D

• Question 23:

  When does the FortiGate enter into fail-open session mode? Response:

  A. When CPU usage goes above the red threshold.

  B. When a proxy (for proxy-based inspection) runs out of connections.

  C. When memory usage goes above the red threshold.

  D. When memory usage goes above the extreme threshold.

  Correct Answer: B

• Question 24:

  Which of the following IPsec parameters is a phase 2 configuration setting? Response:

  A. Peer ID

  B. eXtended Authentication (XAuth)

  C. Quick mode selectors

  D. Authentication method

  Correct Answer: C

• Question 25:

  Which of the following settings and protocols can be used to provide secure and restrictive administrative

  access to FortiGate?

  (Choose three.)

  Response:

  A. Trusted host

  B. HTTPS

  C. Trusted authentication

  D. SSH

  E. FortiTelemetry

  Correct Answer: ABD

• Question 26:

  Which of the following protocols is used to encrypt the user data payload in an IPsec tunnel? Response:

  A. AH

  B. IKE

  C. ISAKMP

  D. ESP

  Correct Answer: D

• Question 27:

  Which statements best describe auto discovery VPN (ADVPN).

  (Choose two.)

  Response:

  A. It requires the use of dynamic routing protocols so that spokes can learn the routes to other spokes.

  B. ADVPN is only supported with IKEv2.

  C. Tunnels are negotiated dynamically between spokes.

  D. Every spoke requires a static tunnel to be configured to other spokes so that phase 1 and phase 2 proposals are defined in advance.

  Correct Answer: AC

• Question 28:

  Which FortiGate interface does source device type enable device detection on? Response:

  A. All interfaces of FortiGate

  B. Source interface of the firewall policy only

  C. Destination interface of the firewall policy only

  D. Both source interface and destination interface of the firewall policy

  Correct Answer: B

• Question 29:

  Which of the following network settings can an IPsec gateway assign to an IPsec client using IP config

  mode?

  (Choose two.)

  Response:

  A. Quick mode selectors

  B. DNS IP address

  C. NAT-T

  D. IP address

  Correct Answer: BD

• Question 30:

  Which statement best describes the role of a DC agent in an FSSO DC agent mode solution? Response:

  A. Captures the logon events and forwards them to FortiGate.

  B. Captures the logon events and forwards them to the collector agent.

  C. Captures the logon and logoff events and forwards them to the collector agent.

  D. Captures the user IP address and workstation name and forwards them to FortiGate.

  Correct Answer: B
