• Question 1421:

  A technician tests a cable going to the patch panel and notices the following output from the cable tester:

  1------------------1 2------------------2 3------------------3 4------------------4 5------------------5 6------------------6 7------------------7 8------------------8

  On a T568A standard CAT5e cable, which of the following wire strands is the cause of this connectivity issue?

  A. White Orange
  B. Solid Brown
  C. Solid Orange
  D. White Green
  D. White Green

  ---

  T568A Wiring Pi Pai Wir Color n r e 1 3 1 white/green 2 3 2 green white/orang 3 2 1 e 4 1 2 blue 5 1 1 white/blue 6 2 2 orange white/brow 7 4 1 n 8 4 2 brown

• Question 1422:

  A technician has been dispatched to investigate connectivity problems of a recently renovated office. The technician has found that the cubicles were wired so that the network cables were run inside the conduit with the electrical cabling. Which of the following would MOST likely resolve the connectivity issue?

  A. Power-cycle the computers and switches to re-establish the network connection.
  B. Re-run the network cabling through the ceiling alongside the lights to prevent interference.
  C. Test the wiring in the network jacks for faults using a cable verifier.
  D. Re-run the network cabling so that they are 12 inches or more away from the electrical lines.
  D. Re-run the network cabling so that they are 12 inches or more away from the electrical lines.

  ---

  Explanation Explanation/Reference: The electric cables create electric field around them and can interrupt in internet connectivity as well. It is quite possible that this is the cause which is creating the connectivity issue.

• Question 1423:

  Which of the following 802.11 standards can operate at both 2.4Ghz and 5.0Ghz?

  A. a
  B. b
  C. g
  D. n
  D. n

• Question 1424:

  Which of the following would allow for a specific device to receive the same IP address from a DHCP server?

  A. Scope
  B. Reservation
  C. Suffix
  D. Lease
  B. Reservation

• Question 1425:

  A user needs maximum distance in a wireless connection. Which of the following should be configured to meet this goal?

  A. 802.11a at 54Mbps
  B. 802.11b at 1Mbps
  C. 802.11g at 11Mbps
  D. 802.11n at 130Mbps
  B. 802.11b at 1Mbps

• Question 1426:

  Which of the following is a proprietary routing protocol?

  A. RIP
  B. EIGRP
  C. OSPF
  D. BGP
  B. EIGRP

• Question 1427:

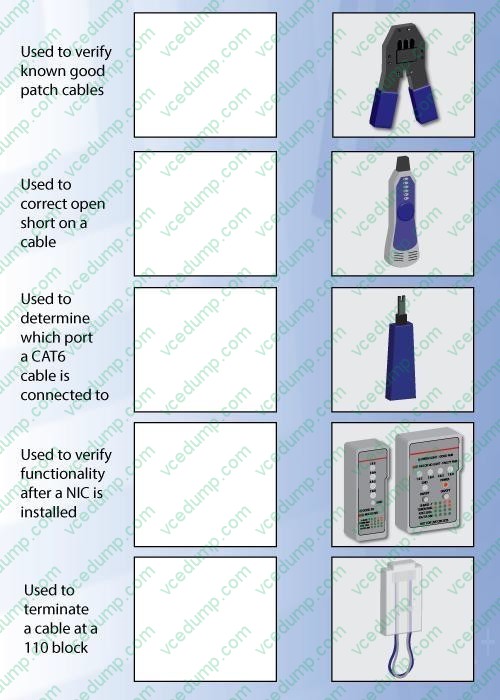

  Drag and drop each networking tool to the MOST appropriate descriptor. Each tool may only be used once.

  Select and Place:





• Question 1428:

  Company policies require that all network infrastructure devices send system level information to a centralized server. Which of the following should be implemented to ensure the network administrator can review device error information from one central location?

  A. TACACS+ server
  B. Single sign-on
  C. SYSLOG server
  D. Wi-Fi analyzer
  C. SYSLOG server

  ---

  Syslog is a protocol designed to send log entries generated by a device or process called a facility across an IP network to a message collector, called a syslog server. A syslog message consists of anerror code and the severity of the error. A syslog server would enable the network administrator to view device error information from a central location.

• Question 1429:

  Which of the following protocols are used to view and send mail from a local host off of a remote server? (Select TWO).

  A. TFTP
  B. SNMP
  C. POP3
  D. IMAP4
  E. SFTP
  C. POP3
  D. IMAP4

• Question 1430:

  The process of restricting internal web traffic to an employee-only website based upon Layer 3 addresses is known as which of the following?

  A. MAC filtering
  B. Traffic shaping
  C. Session filtering
  D. IP filtering
  D. IP filtering
