CompTIA N10-005 Online Practice Questions and Exam Preparation

CompTIA N10-005 Online Questions & Answers

• Question 361:

  Which of the following protocols provides a secure connection between two networks?

  A. L2TP
  B. IPSec
  C. PPP
  D. PPTP
  B. IPSec

• Question 362:

  Which of the following WAN technology types are mainly used over POTS lines to provide Internet connectivity? (Select TWO).

  A. Dialup
  B. DSL
  C. SONET
  D. Cable
  E. WiMAX
  F. LTE
  A. Dialup
  B. DSL

• Question 363:

  Which of the following LAN technologies is used to provide a MAXIMUM bandwidth of 1Gbps through singlemode fiber?

  A. 10GBaseLR
  B. 100BaseFX
  C. 100BaseTX
  D. 1000BaseX
  D. 1000BaseX

  ---

  1000BaseX identifies various Gigabit Ethernet physical layer standards as defined in IEEE802.3z, such as 1000BaseLX, 1000BaseSX, 1000BaseCX and 1000BaseLH. Basically, all standards included in 1000BaseX uses 8B/10B coding scheme with 8 bits of data and 2 bits of error-correction data. Each specification allows various cable (fiber or copper) lengths, and uses different cable media.

• Question 364:

  Which of the following security appliances would be used to only analyze traffic and send alerts when predefined patterns of unauthorized traffic are detected on the network?

  A. Host based IPS
  B. Network based firewall
  C. Signature based IDS
  D. Behavior based IPS
  C. Signature based IDS

• Question 365:

  192.168.0.7/8 notation denotes which of the following IPv4 subnet masks?

  A. 255.0.0.0
  B. 255.255.0.0
  C. 255.255.255.0
  D. 255.255.255.255
  A. 255.0.0.0

• Question 366:

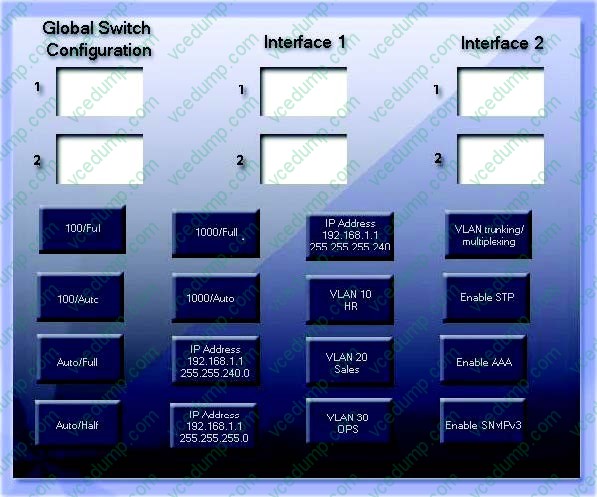

  GigSwitch1 is currently configured with a speed of 100 and Duplex is set to Auto on all interfaces. Interface 2 will be connected to GigSwitch2 which is used for all departments. Interface 1 will be used for HR traffic only.

  GigSwitch1 needs to be configured with the following parameters: Configure the necessary protocol to prevent switching loops Configure GigSwitch1 with a /24 IP address for management Traffic across Interface 1 needs to be forced to accept and receive up to 100Mbps data at the same time Traffic across Interface 2 needs to be forced to use Gigabit speeds and maximum performance Drag and drop the appropriate configurations to their corresponding requirements. All placeholders must be filled. Not all configurations will be used.

  Select and Place:





• Question 367:

  Users are reporting that some Internet websites are not accessible anymore.

  Which of the following will allow the network administrator to quickly isolate the remote router that is causing the network communication issue, so that the problem can be reported to the appropriate responsible party?

  A. Ping
  B. Protocol analyzer
  C. Tracert
  D. Dig
  C. Tracert

  ---

  Tracet command will tell the administrator which route is not present or which is present so he will come to know whether he has appropriate route or not.

• Question 368:

  Which of the following is the MAXIMUM potential speed of CAT5e UTP cable?

  A. 10BaseT
  B. 100BaseT
  C. 100BaseFX
  D. 1000BaseT
  D. 1000BaseT

  ---

  Category 5 e cable (Cat 5) is a twisted pair cable for carrying signals. This type of cable is used in structured cabling for computer networks such as Ethernet. The cable standard provides performance of up to 100 MHz and is suitable for 10BASE-T, 100BASE-TX (Fast Ethernet), and 1000BASE-T (Gigabit Ethernet).

• Question 369:

  Which of the following protocols can be implemented to provide encryption during transmission between email gateways?

  A. TLS
  B. PPTP
  C. SSH
  D. HTTPS
  A. TLS

• Question 370:

  Which of the following network topologies describes a network where each node is connected to multiple devices?

  A. Mesh
  B. Bus
  C. Star
  D. Ring
  A. Mesh
