Service Provider Routing and Switching - Professional (JNCIP-SP)

Exam Details

  • Exam Code
    :JN0-662
  • Exam Name
    :Service Provider Routing and Switching - Professional (JNCIP-SP)
  • Certification
    :JNCIP-SP
  • Vendor
    :Juniper
  • Total Questions
    :66 Q&As
  • Last Updated
    :

Juniper JNCIP-SP JN0-662 Questions & Answers

  • Question 1:

    Which neighbor state indicates that two BGP neighbors have full connectivity?

    A. Idle

    B. Connect

    C. OpenConfirm

    D. Established

  • Question 2:

    Click the Exhibit button.

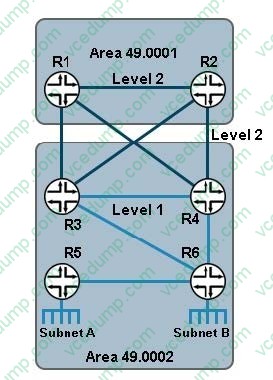

    R5 must advertise Subnet A into IS-IS so that Subnet A and Subnet B can communicate. Subnet B must be able to forward traffic to Subnet A and towards Area 49.0001. However, R5 should not be able to route traffic from Subnet A to Area 49.0001.

    Referring to the exhibit, how would you solve this problem?

    A. Configure Level 2 on all links in Area 49.0002.

    B. Configure the set protocols isis ignore-attached-bit parameter on R5.

    C. Configure the set protocols isis overload parameter on R6.

    D. Configure an export policy on R6 to reject all routes except Subnet B towards R5.

  • Question 3:

    You are asked to configure a new Layer 3 VPN.

    In this scenario, which routing-instance type must be used?

    A. vpls

    B. evpn

    C. vrf

    D. 12vpn

  • Question 4:

    Click the Exhibit button.

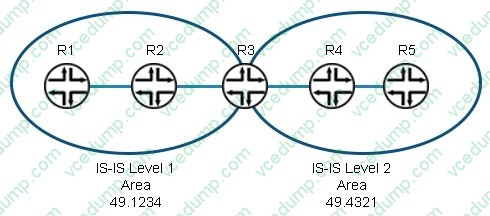

    Referring to the topology shown in the exhibit, where will the attached bit be set?

    A. R4's level 1 database

    B. R4's level 2 database

    C. R3's level 1 database

    D. R3's level 2 database

  • Question 5:

    You are configuring a BGP-signaled Layer 2 VPN service. Which two statements are true in this scenario? (Choose two.)

    A. RSVP-signaled LSPs are required.

    B. The family 12vpn auto-discovery-only parameter is required for BGP sessions.

    C. The family 12vpn signaling parameter is required for BGP sessions.

    D. RSVP-signaled or LDP-signaled LSPs may be used.

  • Question 6:

    Click the Exhibit button.

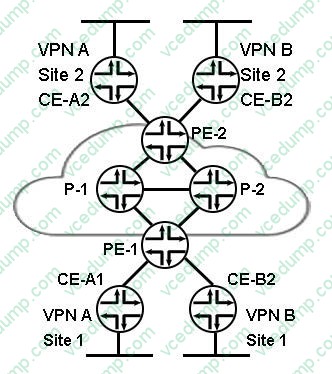

    Referring to the exhibit, which two statements are true? (Choose two.)

    A. A BGP full mesh is only required between PE-1 and PE-2.

    B. A BGP full mesh is required between P1, P2, PE-1, and PE-2.

    C. MPLS must only be enabled on PE-1 and PE-2.

    D. MPLS must be enabled on P1, P2, PE-1, and PE-2.

  • Question 7:

    In a carrier-of-carrier VPN model, which type of network layer reachability information is used for the MPBGP signaling between CE and PE routers?

    A. flow

    B. labeled-unicast

    C. unicast

    D. inet-vpn

  • Question 8:

    Click the Exhibit button.

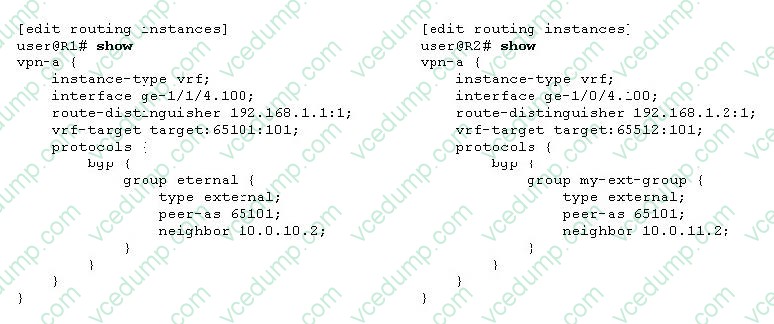

    Referring to the exhibit, why are R1 and R2 not exchanging routes between their VPNs?

    A. The route targets are not property configured.

    B. The IP addresses in the BGP configuration must be in the same subnet.

    C. The interfaces unit numbers must be the same on both sides.

    D. The route distinguishers are not properly configured.

  • Question 9:

    Click the Exhibit button.

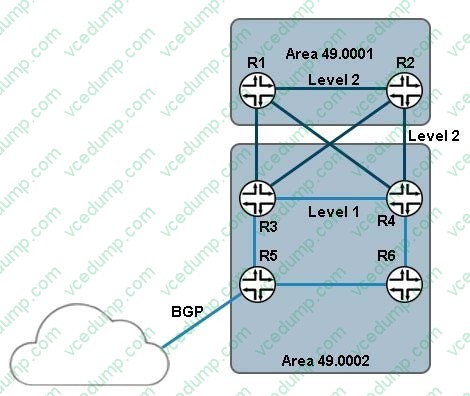

    BGP routes received on R5 are redistributed into the IS-IS network. You want the redistributed routes to be present in Area 49.0001.

    Referring to the exhibit, how would this task be accomplished?

    A. Configure the set protocols isis ignore-attached-bit parameter on router R5.

    B. Configure the set protocols isis ignore-attached-bit parameter on routers R3 and R4.

    C. Configure the set protocols isis level 2 wide-metrics-only parameter on routers R3 and R4.

    D. Configure the set protocols isis level 1 wide-metrics-only parameter on router R5.

  • Question 10:

    Click the Exhibit button.

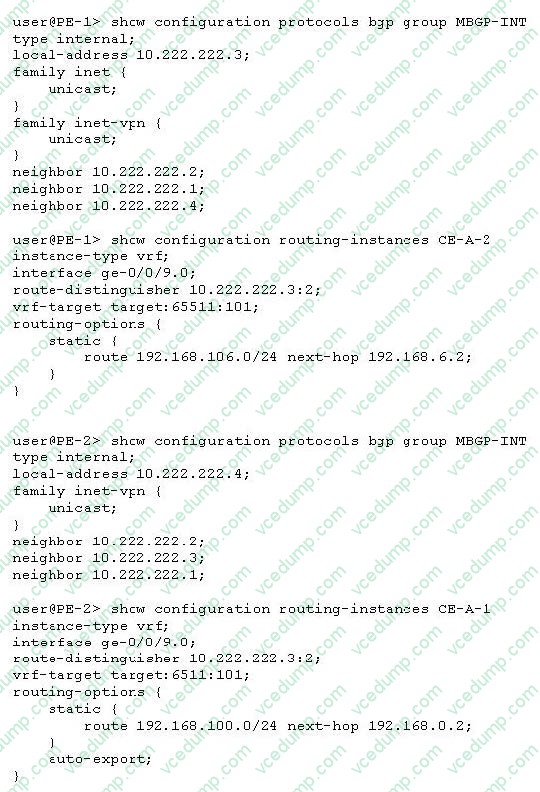

    The customer's hosts cannot communicate across their Layer 3 VPN. The exhibit shows the configuration for the two PE devices in the Layer 3 VPN.

    What should you do to solve the problem?

    A. Add the family INET unicast NLRI address family in the BGP group for PE-2.

    B. Set the route distinguishers to be different for PE-1 and PE-2.

    C. Add the auto export feature in the routing instances for PE-1.

    D. Set the VRF target to the same value on PE-1 and PE-2.
